TE Connectivity 5794172-4

B096T2NBY3

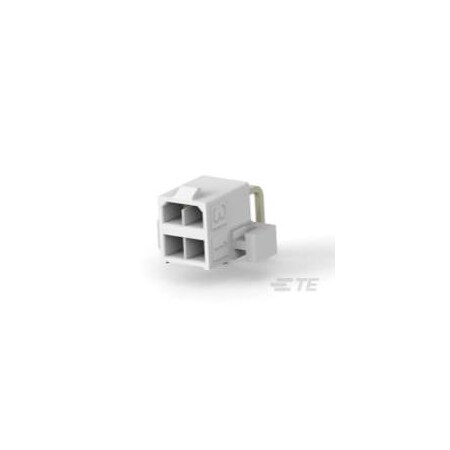

Conn Wire to Board Male 4 Position 4.2mm Solder Right Angle

Conn Wire to Board Male 4 Position 4.2mm Solder Right Anglezoom

Attributes

Key Value
Applications-
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.-
Contact Length - Mating0.205" (5.21mm)
Contact Length - Post0.138" (3.50mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.Mexico
Current Rating (Amps)-
Fastening TypeLocking Ramp
FeaturesMounting Flange
Ingress Protection-
Insulation ColorNatural
Insulation Height0.461" (11.70mm)
Insulation MaterialPolybutylene Terephthal.
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Right Ang.
Number of Positions4
Number of Positions Loa.3
Number of Rows2
Operating Temperature-55?C ~ 105?C
Overall Contact Length-
PackageBulk
Part StatusObsolete
Pitch - Mating0.165" (4.20mm)
Row Spacing - Mating0.217" (5.51mm)
SeriesAMP-DUAC
ShroudingShrouded - 4 Wall
StyleBoard to Board or Cable
TerminationSolder
Voltage Rating600VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 5794172-44.1715242TE CONNECTIVITY/AMP BRAND4.17 @ 25
Newark90AJ04285.541242AMP - TE CONNECTIVITY5.54 @ 25
Digi-Key47309496.85425TE Connectivity AMP Connectors6.85 @ 25
Allied ElectronicsE52560512984.993100025TE Connectivity2984.993 @ 1000
thumbzoomZoroG4009405836850.0100025Te Connectivity6850.0 @ 1000
