TE Connectivity 5-1761199-3

B00KSPWOMY

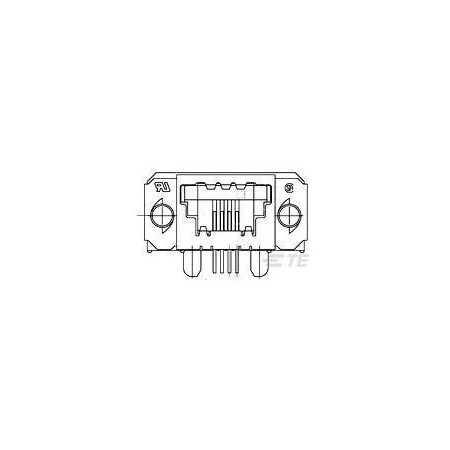

TE Connectivity Part Number 5-1761199-3

TE Connectivity Part Number 5-1761199-3zoom

Attributes

Key Value
Base Product Number1761199
CategoryConnectors, Interconnec.
Centerline (Pitch).05 in
Circuit ApplicationSignal
Connector & Contact Ter.Printed Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleReceptacle
Connector SystemCable-to-Board
Connector TypeSDL, Jack
Contact Base MaterialPhosphor Bronze
Contact FinishGold
Contact Finish Thickness50.0?in (1.27?m)
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold
Contact Mating Area Pla.50?in
DescriptionCONN MOD JACK 8P R/A SH.
Detailed DescriptionJack Modular Connector .
Digi-Key Part Number5-1761199-3-ND
FeaturesBoard Lock, Keyed
Grounding OptionsPCB and Panel Ground
Housing ColorBlack
Housing Entry StyleSide
Housing MaterialPolyester, Polyester GF
Ingress Protection-
KeyingE
LED ColorDoes Not Contain LED
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.5-1761199-3
Manufacturer Standard L.20 Weeks
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Conductors8
Number of Ports1
Number of Positions8
Number of Positions/Con.8 Positions
Number of Rows1
Operating Temperature-20?C ~ 80?C
Operating Temperature R.-4 to 176?F
Orientation90? Angle (Right)
PackageTube
PCB Mount RetentionWith
PCB Mount Retention TypeBoardlock
Product StatusActive
Product TypeConnector
Ratings-
Receptacle ConfigurationStandard
Series-
Shield MaterialBrass
Shield Plating MaterialTin over Nickel
ShieldingShielded
Tab Direction-
TerminationSolder
UL Flammability RatingUL 94V-0

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 5-1761199-39.7717493TE CONNECTIVITY/AMP BRAND9.77 @ 17
Newark18R905311.19833In StockAMP - TE CONNECTIVITY11.19 @ 833
thumbzoomDigi-Key218810714.225882352917493TE Connectivity AMP Connectors14.2258823529 @ 17
thumbzoomZoroG201049065208.251In StockTe Connectivity208.25 @ 1
