ISO7240CFDWR-TEXAS INSTRUMENTS

B00R3D5LY2

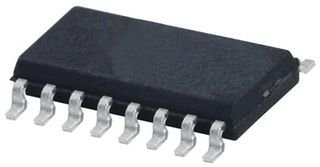

TEXAS INSTRUMENTS ISO7240CFDWR DIGITAL ISOLATOR, 4CH, 42NS, SOIC-16 (1 piece)

TEXAS INSTRUMENTS ISO7240CFDWR DIGITAL ISOLATOR, 4CH, 42NS, SOIC-16 (1 piece)zoom

Attributes

Key Value
Alternate Part No.595-ISO7240CFDWR
Base Product NumberISO7240
BrandTexas Instruments
CategoryIsolators
Channel TypeUnidirectional
Common Mode Transient I.25kV/?s
Data Rate25Mbps
DescriptionDGTL ISO 2500VRMS 4CH G.
Detailed DescriptionGeneral Purpose Digital.
Digi-Key Part Number296-22617-2-ND - Tape &.
Forward Channels4 Channel
Inputs - Side 1/Side 24/0
Isolated PowerNo
Isolation Voltage4 kVrms
ManufacturerTexas Instruments
Manufacturer Part No.ISO7240CFDWR
Manufacturer Product Nu.ISO7240CFDWR
Manufacturer Standard L.8 Weeks
Maximum Data Rate25 Mb/s
Maximum Operating Tempe.+ 125 C
MfrTexas Instruments
Minimum Operating Tempe.- 40 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Channels4 Channel, 4
Operating Temperature-40?C ~ 125?C
PackageTape & Reel (TR)
Package / Case16-SOIC (0.295", 7.50mm.
Package/CaseSOIC-16
PackagingReel
Product CategoryDigital Isolators
Product StatusActive
Propagation Delay Time47 ns
Propagation Delay tpLH .42ns, 42ns
Pulse Width Distortion .2.5ns
Reverse Channels0 Channel
Rise / Fall Time (Typ)2ns, 2ns
Series-, ISO7240CF
Supplier Device Package16-SOIC
Supply Voltage - Max5 V
Supply Voltage - Min3.3 V
TechnologyCapacitive Coupling
TypeGeneral Purpose
Unit Weight420.400 mg
Voltage - Isolation2500Vrms
Voltage - Supply3.15V ~ 5.5V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Win SourceISO7240CFDWR4.342152560Texas Instruments4.342 @ 15
thumbzoomDigi-Key16692895.3591961Texas Instruments5.359 @ 10
thumbzoomNewark33AH39756.64110TEXAS INSTRUMENTS6.64 @ 10
thumbzoomswatee.comISO7240CFDWR9.3411865Texas Instruments9.34 @ 10
