Weg Electric 03036ST3QIE286TSC-W2

B07C98JZ4W

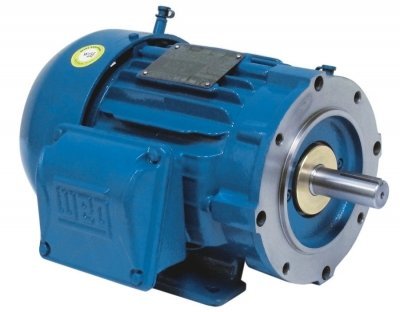

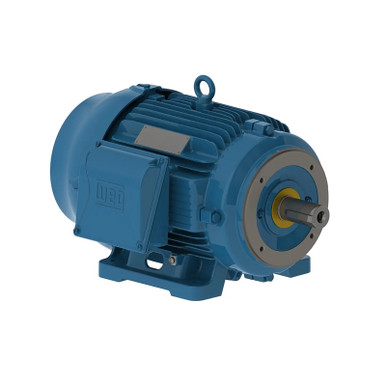

WEG Electric, 03036ST3QIE286TSC-W2, 30HP, 3600RPM, 3PH, 460V, 284/6TSC Frame, C-Face Flange, Foot Mount, TEFC, IEEE 841 Motor.

WEG Electric, 03036ST3QIE286TSC-W2, 30HP, 3600RPM, 3PH, 460V, 284/6TSC Frame, C-Face Flange, Foot Mount, TEFC, IEEE 841 Motor.zoom

Attributes

Key Value
Amperage Rating33.8 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ClassificationIEEE 841
Comments60 Hz
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Degree of ProtectionIP55
Description:MOTOR 30HP 2P 284/6TSC .
Dimensions26.557 in L
Drive End Flange TypeC-Face
EnclosureTEFC, IC411-TEFC, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight419.00
Family SeriesWEG Electric Motors
FL Amps33.8
FL Efficiency91.7
FlangesC-Face Flange
Frame284/6TS, 286TSC, 284TSC.
Frame RemarksFooted, Premium, IEEE 8.
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower30 hp
HP30
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number03036ST3QIE286TSC-W2
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number03036ST3QIE286TSC-W2
MaterialCast Iron
MFG Part #:03036ST3QIE286TSC-W2
Model12823349
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, C-Face Foot.
NEMA Frame284/6TSC
Net Weight0 lbs
Nominal Voltage415 VAC, 480 VAC
Number of Poles2
Number of Speeds1
Output Rating30 hp
Part Number03036ST3QIE286TSC-W2
Phase3, 3 ph
Product TypeSevere Duty & IEEE 841
RotationCW/CCW
RPM3600, 3535, 3,600 RPM
Service Factor1.25
Speed3535 rpm
Speed (RPM)3600
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
UPC:7909158844395
Voltage460V, 460, 460 V
Voltage (AC)460 VAC
Volts460
Weight440.300000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com03036ST3QIE286TSC-W22186.01In StockWEG410.02186.0 @ 1
thumbzoomWalker Industrial03036ST3QIE286TSC-W22999.251In Stock17WEG2999.25 @ 1
thumbzoomMRO Supply13103753060.11In StockWEG3060.1 @ 1
thumbzoommotorsandcontrol.com03036ST3QIE286TSC-W23168.511In StockWEG Electric419.03168.51 @ 1
thumbzoomGalco03036ST3QIE286TSC-W2-WEG3284.511In StockWEG Electric3284.51 @ 1
thumbzoomindustrialrefrigerationparts.com03036ST3QIE286TSC-W23387.851In StockWEG440.33387.85 @ 1
kscdirect.comWEG 03036ST3QIE286TSC-W23403.931In StockWEG ELECTRIC CORP3403.93 @ 1
thumbzoomDealers Electric03036ST3QIE286TSC-W23651.121In StockWeg419.03651.12 @ 1
thumbzoomPurvis03036ST3QIE286TSC-W23655.091In StockWEG3655.09 @ 1
thumbzoomvfds.com03036ST3QIE286TSC-W23999.01In StockWEG3999.0 @ 1
thumbzoomNational Supply NetworkB8818405030.791In StockWeg Electric Motors5030.79 @ 1
