WEG 10036OT3G365JM

B0085ASWNE

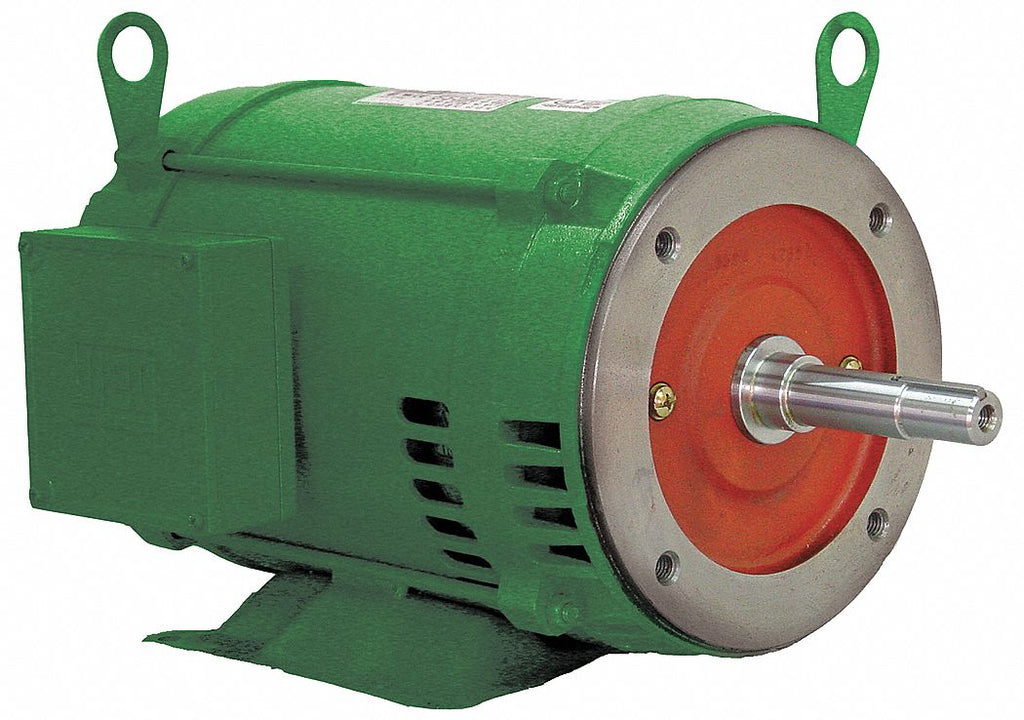

WEG 10036OT3G365JM JM Type ODP NEMA Premium Efficiency Close Coupled Electric Pump Motor, 100 HP, 3-Phase, 3550 rpm, 460 V, 60 Hz, Frame 364/5JM

WEG 10036OT3G365JM JM Type ODP NEMA Premium Efficiency Close Coupled Electric Pump Motor, 100 HP, 3-Phase, 3550 rpm, 460 V, 60 Hz, Frame 364/5JMzoom

Attributes

Key Value
ApplicationCentrifugal Close-Coupl.
Body Dia.21.2 in
CC NumberCC029A
ClassificationJM-JP & Jet Pump
CompositionCast Iron
ConditionNew
Conduit Box LocationExterior
Conduit Box PositionF1
ConstructionCast Iron
Country of Origin (subj.Multiple
Degree of ProtectionIP55
Description:MOTOR 100HP 2P 364/5JM .
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency %94.5 %
EnclosureODP, Open, IC411 - TEFC.
Estimated Weight906.00
Family SeriesWEG Electric Motors
FL Amps111
FL Efficiency94.5
FlangesWithout Flange
Frame364/5JM, 364JM, 365JM
Frame MaterialCast Iron
Frame RemarksClose Coupled Pump, Foo.
Frequency60 Hz
Full Load Amps112.0
Green Certification or .NEMA Premium Rated
Green Environmental Att.Product Contributes To .
Gross Weight0 lbs
Height21 1/4 in
Hertz60
Horsepower100 hp
HP100
HP @ 50Hz75, 100
Hz60
Ins. ClassF
Inverter RatedYes
Inverter Rating1000:1
ItemClose-Coupled Pump Motor
Item ConditionFactory New
Item Number10036OT3G365JM
Length Less Shaft23 7/8 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number10036OT3G365JM
Manufacturers Warranty .3 yr
Max. Ambient Temp.40 Degrees C
MFG Part #:10036OT3G365JM
Model11265451
Motor ApplicationPump
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.15
Motor Shaft DesignJM Threaded
Motor Shaft RotationCW/CCW
Motor Sub ApplicationClose-Coupled Pump
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount
Nameplate RPM3,560
NEMA DesignB
NEMA Frame364/5JM
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency94.5 %
Nominal Voltage480 VAC
Number of Poles2
Number of Speeds1
Output Rating10 HP
Overall Length29 1/8 in
Part Number10036OT3G365JM
Phase3, Three
Product TypePump
Regreasable BearingsRegreasable Bearings
Replaced By10036OT3G365JM-W40
Replaces10036OP3G365JM
RPM3600, 3,600 RPM
RPM @ 50Hz2,965
RPM Range3,001-3,600
Service Factor1.15
Service Factor @ 50Hz1.15
Shaft Dia.1 1/4 in
Shaft Length5 1/4 in
Shaft MaterialCarbon Steel
Speed (RPM)3600
StandardNEMA MG-1
StandardsCSA (078282-0)
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600 rpm
Terminal BoxLeft position
UPC:7890355868805
Usable @ 200VNo
Usable @ 208VNo
Voltage460V, 460V AC, 460 V
Voltage (AC)460 VAC
Voltage @ 50Hz380/400/415
Voltage Compatibility200-230/440V AC, 200-23.
Volts460
Weight800 lb, 908.030000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialrefrigerationparts.com10036OT3G365JM5565.91In StockWEG908.035565.9 @ 1
thumbzoomGalco10036OT3G365JM-WEG6425.431In StockWEG Electric6425.43 @ 1
thumbzoommotorsandcontrol.com10036OT3G365JM6438.931In StockWEG Electric906.06438.93 @ 1
Global IndustrialB8818636480.01In StockWEG6480.0 @ 1
thumbzoomZoroG98716357291.921In Stock26Weg963.057291.92 @ 1
kscdirect.comWEG 10036OT3G365JM7390.921In StockWEG ELECTRIC CORP7390.92 @ 1
thumbzoomRadwell10036OT3G365JM7800.01In StockWEG7800.0 @ 1
thumbzoomPurvis10036OT3G365JM7936.261In StockWEG7936.26 @ 1
thumbzoomDealers Electric10036OT3G365JM7944.351In StockWeg906.07944.35 @ 1
AmazonTPB0085ASWNE9628.131In Stock30WEG9628.13 @ 1
thumbzoomsustainablesupply.comC294856613058.321In StockWEG963.0513058.32 @ 1
thumbzoomRaptor SuppliesAD7JZT16103.41580251In StockWEG16103.4158025 @ 1
