WEG 10036OT3G365JP

B0085B9390

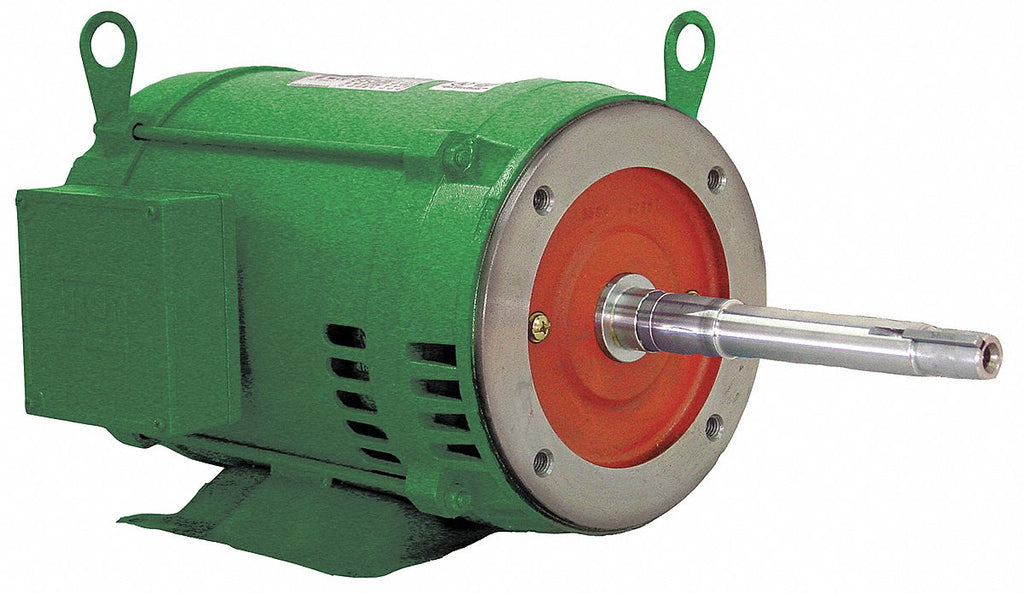

WEG 10036OT3G365JP JP Type ODP NEMA Premium Efficiency Close Coupled Electric Pump Motor, 100 HP, 3-Phase, 3600 rpm, 460 V, 60 Hz, Frame 365JP

WEG 10036OT3G365JP JP Type ODP NEMA Premium Efficiency Close Coupled Electric Pump Motor, 100 HP, 3-Phase, 3600 rpm, 460 V, 60 Hz, Frame 365JPzoom

Attributes

Key Value
ApplicationCentrifugal Close-Coupl.
Body Dia.21.2 in
CC NumberCC029A
ClassificationJM-JP & Jet Pump
CompositionCast Iron
ConditionNew
Conduit Box LocationExterior
Conduit Box PositionF1
ConstructionCast Iron
Country of Origin (subj.Multiple
Degree of ProtectionIP55
Description:MOTOR 100HP 2P 364/5JP .
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency %94.5 %
EnclosureODP, Open, IC411 - TEFC.
Estimated Weight924.00
Family SeriesWEG Electric Motors
FL Amps111
FL Efficiency94.5
FlangesFlange C
Frame365JP, 364/5JP, 364JP
Frame MaterialCast Iron
Frame RemarksClose Coupled Pump, Foo.
Frequency60 Hz
Full Load Amps112.0
Green Certification or .NEMA Premium Rated
Green Environmental Att.Product Contributes To .
Gross Weight0 lbs
Height21 1/4 in
Hertz60
Horsepower100 hp
HP100
HP @ 50Hz75, 100
Hz60
Ins. ClassF
Inverter RatedYes
Inverter Rating1000:1
ItemClose-Coupled Pump Motor
Item ConditionFactory New
Item Number10036OT3G365JP
Length Less Shaft23 7/8 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number10036OT3G365JP
Manufacturers Warranty .3 yr
Max. Ambient Temp.40 Degrees C
MFG Part #:10036OT3G365JP
Model11292383
Motor ApplicationPump
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.15
Motor Shaft DesignJP Threaded
Motor Shaft RotationCW/CCW
Motor Sub ApplicationClose-Coupled Pump
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount
Nameplate RPM3,560
NEMA DesignB
NEMA Frame364/5JP
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency94.5 %
Nominal Voltage480 VAC
Number of Poles2
Number of Speeds1
Output Rating10 HP
Overall Length32 in
Part Number10036OT3G365JP
Phase3, Three
Product TypePump
Regreasable BearingsRegreasable Bearings
Replaced By10036OT3G365JP-W40
Replaces10036OP3G365JP
RPM3600, 3,600 RPM
RPM @ 50Hz2,965
RPM Range3,001-3,600
Service Factor1.15
Service Factor @ 50Hz1.15
Shaft Dia.1 5/8 in
Shaft Length8 1/8 in
Shaft MaterialCarbon Steel
Speed (RPM)3600
StandardNEMA MG-1
StandardsCSA (078282-0)
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600 rpm
Terminal BoxLeft position
UPC:7890355926963
Usable @ 200VNo
Usable @ 208VNo
Voltage460V, 460V AC, 460 V
Voltage (AC)460 VAC
Voltage @ 50Hz380/400/415
Voltage Compatibility200-230/440V AC, 200-23.
Volts460
Weight931.280000, 823 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialrefrigerationparts.com10036OT3G365JP5238.991In StockWEG931.285238.99 @ 1
thumbzoomGalco10036OT3G365JP-WEG6048.031In StockWEG Electric6048.03 @ 1
thumbzoommotorsandcontrol.com10036OT3G365JP6060.741In StockWEG Electric924.06060.74 @ 1
kscdirect.comWEG 10036OT3G365JP6956.811In StockWEG ELECTRIC CORP6956.81 @ 1
thumbzoomZoroG98717577002.831In Stock26Weg963.057002.83 @ 1
thumbzoomRadwell10036OT3G365JP7350.01In StockWEG7350.0 @ 1
thumbzoomPurvis10036OT3G365JP7470.121In StockWEG7470.12 @ 1
thumbzoomDealers Electric10036OT3G365JP7477.731In StockWeg924.07477.73 @ 1
AmazonTPB0085B93909628.131In Stock30WEG9628.13 @ 1
thumbzoomsustainablesupply.comC294856513058.321In StockWEG963.0513058.32 @ 1
thumbzoomRaptor SuppliesAD7JYU16103.41580251In StockWEG16103.4158025 @ 1
