3M MNG18-10FFBK

mpnMNG18-10FFBK
brandname: 3-M
manufacturername: 3-M

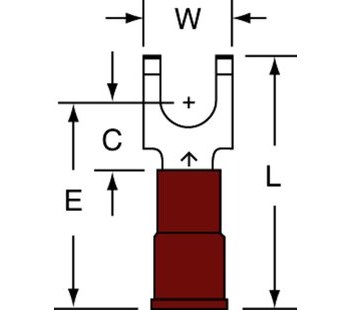

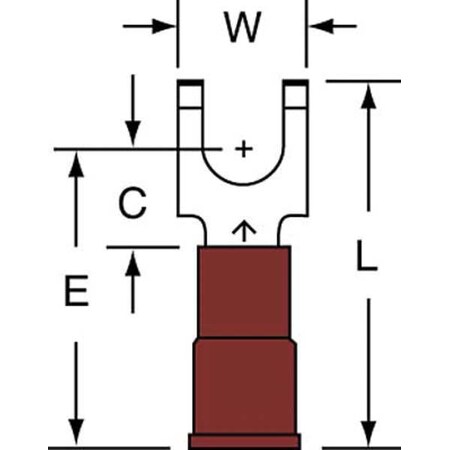

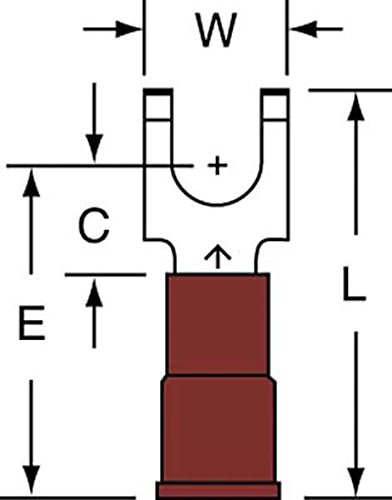

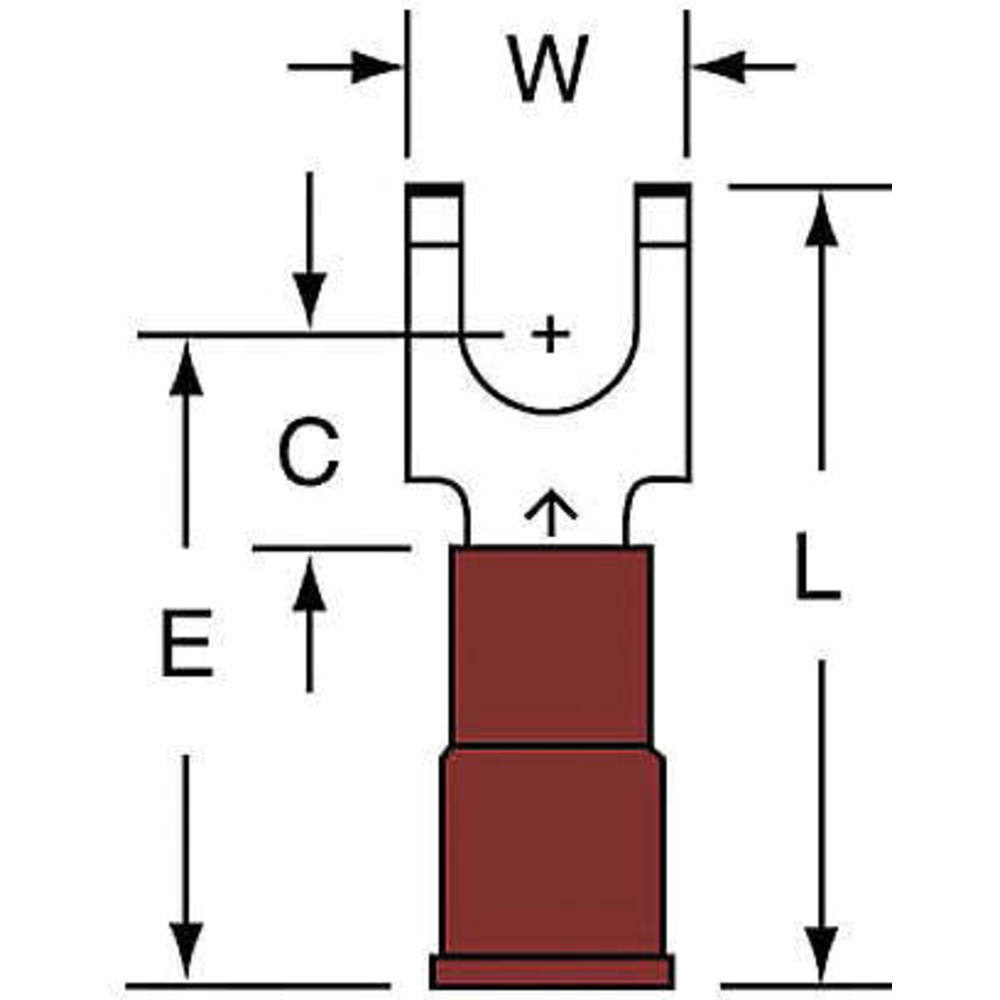

3M Scotchlok MNG18-10FFBK Red Locking Butted Nylon Butted Fork & Spade Terminal - 0.84 in Length - 0.3 in Fork Width - #10 Stud - 01265 [PRICE is per CASE]

Brand: 3M
PartNumber: MNG18-10FFBK
Model: MNG18 10FFBK
Color: Red
PackageQuantity: 1
Binding: Misc.
Manufacturer: 3M
Label: 3M

Attributes

Key	Value
3M Number	MNG18-10FFBK
Barrel Length	44 in, 0.25 in
Barrel Length Type	Butted
Barrel Style	Insulation Grip
Base Product Number	MNG18
Brand	3M
Category	Electrical Insulating T.
Clearance	0.25 in
Color	Red
Connection Material	Copper
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Copper, Copper, ETP
Country of Origin	USA
Country of Origin (subj.	United States
Fastening Mechanism	Locking
Features	-
For Wire Size	18 AWG, 20 AWG, 22 AWG
Fork Width	0.3 in
Inside Diameter	0.07 in
Insulation	Insulated
Insulation Color	Red
Insulation Diameter	0.145" (3.68mm)
Insulation Length	0.69 in
Insulation Material	Nylon
Insulation Type	Nylon
Item	Fork Terminal
Length - Overall	0.840" (21.34mm)
Length - Ring Center to.	0.250" (6.35mm)
Length - Termination	0.440" (11.18mm)
Manufacturer	3M
Material	Nylon
Material - Insulation	Polyamide (PA), Nylon
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Maximum Insulation Outs.	0.145 in
Maximum Operating Tempe.	221 Degrees F
Maximum Voltage	600 V
Maximum Wire Size	18 AWG
Mfr	3M
Minimum Conductor Leg D.	22 AWG
Minimum Wire Size	22 AWG
Mounting Type	Free Hanging (In-Line)
Overall Length	0.84 in
Overall Width	0.3 in
Package	Bulk
Package Quantity	1000 per case
Product Status	Active
RoHS Compliant	Yes
Seam	Brazed
Seam Style	Butted
Series	Scotchlok?
Standards	CSA Certified, UL Listed
Stud Size	#10
Stud/Tab Size	10 Stud
Terminal Connection	Crimp
Terminal Shape	Flanged Block Fork
Terminal Type	Flanged, Block
Termination	Crimp
Termination Style	Crimp
Tongue Inside Opening	-
Tongue Thickness	0.03 in
Tongue Width	0.26 - 0.50 inches
Tongue Width - Wire Con.	0.3 in
Trade Name	Scotchlok
Type	Insulated, Block Fork
UNSPSC	31201502
UPC	054007012658
Width - Outer Edges	0.300" (7.62mm)
Wire Gauge	18-22 AWG
Wire Range	22 to 18 AWG
Wire Size Range	22 AWG - 18 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
turtle.com	MMM MNG18-10FFBK	0.67	1	1000		3M		0.67 @ 1000
Digi-Key	3865675	0.69326	1000	1000		3M		0.69326 @ 1000
Platt.com	0318724	0.82	1	1000		3M		0.82 @ 1000
Zoro	G5502104	518.0	1	1000	26	3M	2.3	518.0 @ 1000
rshughes.com	054007-01265	550.0	1000	1000		3M		550.0 @ 1000
sustainablesupply.com	C1180533	558.23	1	1000		3M	2.3	558.23 @ 1000
gordonelectricsupply.com	MNG18-10FFBK	565.0	1	1000	455	3-M		565.0 @ 1000
Dale-Electric	MNG18-10FFBK	624.54	1	1000		3M		624.54 @ 1000
Grainger	2JJH5	963.5	1	1000	15	3M		963.5 @ 1000
Raptor Supplies	AC2FAD	1263.05244	1	1000		3M		1263.05244 @ 1000
