- mpnVEM3613T-5
- brandname: Baldor-Reliance
- manufacturername: Baldor-Reliance

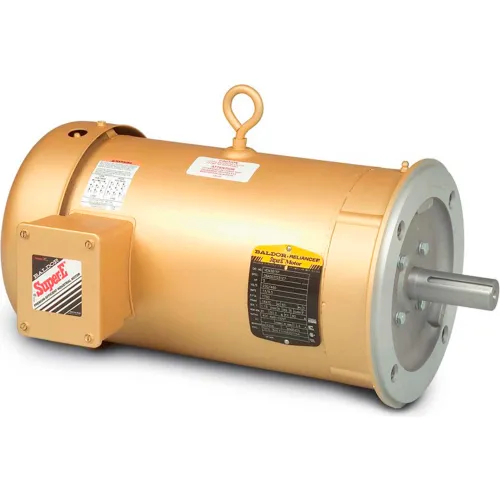

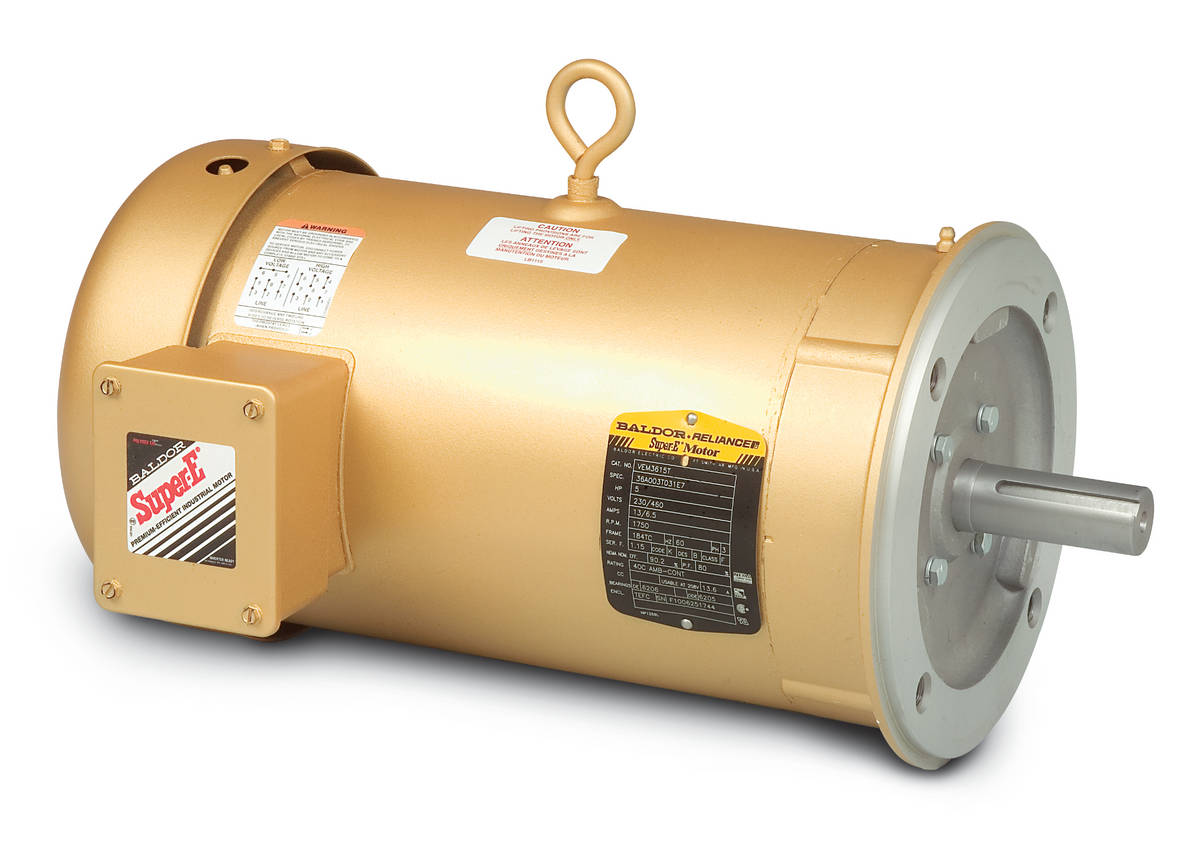

Baldor Electric, VEM3613T-5, 5HP, 3450RPM, 3PH, 575V, 182TC Frame, C-Face Flange, Footless, TEFC, General Purpose Motor
- Brand: Baldor Electric
- PartNumber: VEM3613T-5
- Manufacturer: Baldor Electric
- Label: Baldor Electric
Attributes
| Key | Value |
|---|
| Amps | 4.7 |
| Application | General Purpose |
| Bearings | Ball |
| Comments | 60 Hz |
| Composition | Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Efficiency | 88.5% |
| Efficiency % | 88.5 % |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Material | Steel |
| Enclosure Type | TEFC |
| Estimated Weight | 74.00 |
| Family Name | Three Phase Enclosed Fa. |
| Family Series | Baldor Motors |
| FL Amps | 4.7 |
| FL Efficiency | 88.5 |
| Frame | 182TC, 184TC |
| Frequency | 60 Hz |
| Gross Weight | 0 lbs |
| Hertz | 60 |
| Horsepower | 5 hp |
| HP | 5 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | Yes |
| Item Number | VEM3613T-5 |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 36A003S505G1 |
| Manufacturer Part Number | VEM3613T-5 |
| Maximum Ambient Tempera. | 40? C |
| Mounting | C-Face, Footless |
| Mounting Type | Footless |
| NEMA Frame | 182TC |
| Net Weight | 0 lbs |
| Nominal Voltage | 575 VAC, 600 VAC |
| Number of Speeds | 1 |
| Overall Length | 16.54" |
| Part Number | VEM3613T-5 |
| Phase | 3, 3 Phase |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 3450 RPM, 3450, 3,450 R. |
| Series | GE3 Series |
| Service Factor | 1.15 |
| Shaft Diameter | 1.125" |
| Ship Weight | 74 lbs. |
| Speed (RPM) | 3450 |
| UPC Code | 781568527436 |
| Voltage | 575V |
| Voltage (AC) | 575 VAC |
| Volts | 575 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B07FN4G7QG | 846.46 | 1 | In Stock | 3 | Baldor Electric | | 846.46 @ 1 |
 | emotorpro.com | VEM3613T-5 | 983.39 | 1 | In Stock | | Baldor | 74.0 | 983.39 @ 1 |
| factorysupplyoutlet.com | AY41OL | 1077.24 | 1 | In Stock | | Baldor-Reliance | | 1077.24 @ 1 |
 | Walker Industrial | VEM3613T-5 | 1088.12 | 1 | In Stock | | Baldor | | 1088.12 @ 1 |
 | Galco | VEM3613T-5-BLDR | 1088.12 | 1 | In Stock | | Baldor | | 1088.12 @ 1 |
 | Global Industrial | WBB909350 | 1112.0 | 1 | In Stock | | Baldor-Reliance | | 1112.0 @ 1 |
| motorsandcontrol.com | VEM3613T-5 | 1133.46 | 1 | In Stock | | Baldor Reliance | 74.0 | 1133.46 @ 1 |
 | pumpproducts.com | VEM3613T-5 | 1287.0 | 1 | In Stock | | Baldor | | 1287.0 @ 1 |
| us.rs-online.com | 71944446 | 1360.15 | 1 | In Stock | | Baldor-Reliance | | 1360.15 @ 1 |
 | Zoro | G3333089 | 1365.41 | 1 | In Stock | 12 | Baldor-Reliance | | 1365.41 @ 1 |
| motionindustries.com | 07003480 | 1569.54 | 1 | In Stock | | Baldor-Reliance | | 1569.54 @ 1 |
 | Raptor Supplies | AJ6YRB | 3240.9071955 | 1 | In Stock | | BALDOR MOTOR | | 3240.9071955 @ 1 |
