Bell & Gossett PL-45B

B000LEDYXU

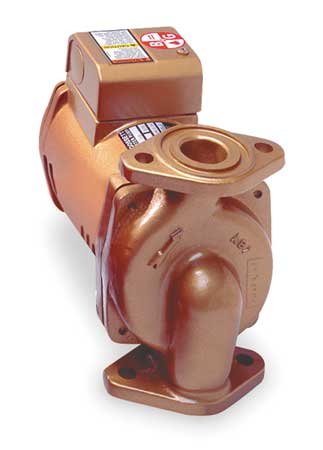

Hot Water Circulator Pump, PL Series

Hot Water Circulator Pump, PL Serieszoom

Attributes

Key Value
Amps2.1 A
Compatible Discharge Pi.1 in, 1 1/4 in, 1 1/2 in
Compatible Intake Pipe .1 in, 1 1/4 in, 1 1/2 in
Connection TypeFlange
Face to Face Dimension8 1/2 in
Flange or Union IncludedNo
For Use With Potable Sy.Yes
Frequency60 Hz
Horsepower1/6
Impeller MaterialPlastic
ItemPotable Water Circulati.
Manufacturer Warranty L.1 yr
Maximum Feet of Head31 ft
Maximum Flow Rate @ 1 F.49 gpm
Maximum Flow Rate @ 10 .43 gpm
Maximum Flow Rate @ 15 .33 gpm
Maximum Flow Rate @ 20 .27 gpm
Maximum Flow Rate @ 25 .15 gpm
Maximum Flow Rate @ 30 .5 gpm
Maximum Flow Rate @ 5 F.45 gpm
Maximum Flow Rate @ 50 .45 gpm
Maximum Media Temperatu.225 Degrees F
Maximum Operating Press.150 psi
Maximum RPM3,300 RPM
Motor Enclosure DesignTotally Enclosed Fan-Co.
Mounting LocationIn-Line
Nameplate Voltage115V AC
Number of Speeds1
Overall Height8.5 in
Overall Length9.13 in
Overall Width4.5 in
PhaseSingle
Pump Housing MaterialBronze
Pump TypeStandard
Rotor TypeDry
SeriesPL-45B
Series FamilySeries PL
StandardsUL Listed

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB000LEDYXU584.21In Stock2BELL & GOSSETT584.2 @ 1
thumbzoomsustainablesupply.comC1741218952.091In StockBell & Gossett16.6952.09 @ 1
grainger.caWWG5JPC41150.94686451In StockBELL & GOSSETT16.61150.9468645 @ 1
thumbzoomRaptor SuppliesAE4ENB1180.8378271In StockBELL & GOSSETT1180.837827 @ 1
