- mpnB4-1
- brandname: BUCHANAN
- manufacturername: BUCHANAN

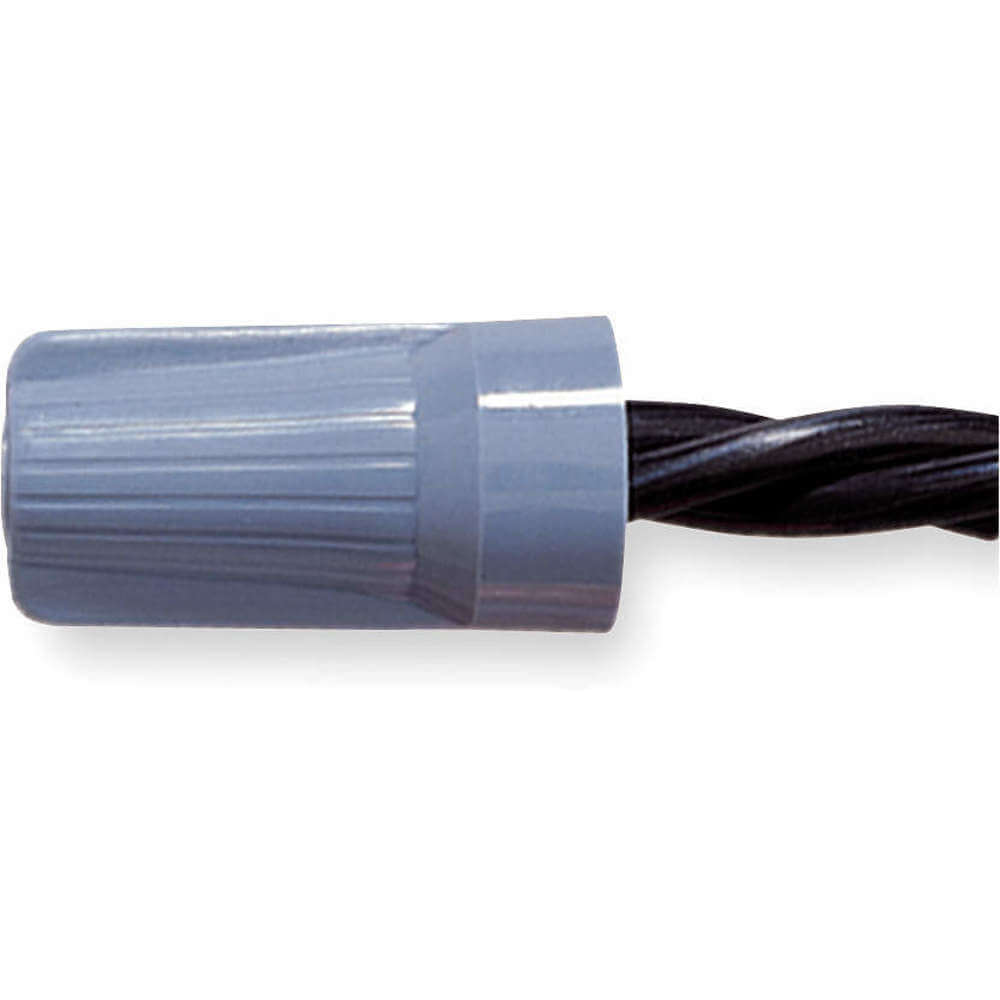

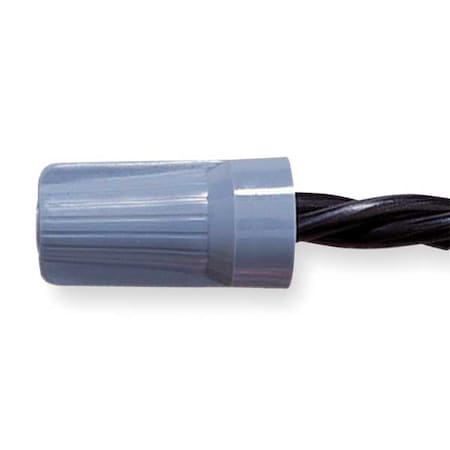

Twist On Wire Connector, 14-6 AWG, PK25
- Brand: Buchanan
- PartNumber: B4-1
- Model: B4-1
- PackageQuantity: 1
- Manufacturer: BUCHANAN
- Label: BUCHANAN
Attributes
| Key | Value |
|---|
| Application | Insulating or Joining 1. |
| Brand | Buchanan |
| Carton | 250 |
| Category Description | Wire Nuts |
| Classification | Wire Nuts |
| Color | Blue/Gray |
| Connector Type | B4 |
| Description | B-Cap Wire Connector, M. |
| environmental conditions | Tough, UL 94V-2 Flame-R. |
| extra long description | IDEAL B4-1 B-CAP B4 BLU. |
| Features | The B-CAP Wire Connecto. |
| For Wire Size | 10 AWG, 12 AWG, 14 AWG,. |
| GTIN | 00781789452036 |
| Height | 1.49 in |
| High Temperature Applic. | No |
| Insulation Color | Blue/Gray |
| Item | Twist On Wire Connector |
| Long Description | Color: Blue/Gray, Bucha. |
| Made in USA | yes |
| Manufacturers Part Numb. | B4-1 |
| Material | Flame-Retardant Polypro. |
| Max. Single Wire Size | 6 AWG |
| Max. Voltage | 600V AC |
| Max. Wire Combination | (2) 6 AWG |
| Maximum Conductor Size | (2) #6 AWG |
| Maximum Operating Tempe. | 221 Degrees F, +105 ?C. |
| Maximum Single Wire Size | 6 AWG |
| Maximum Voltage Rating | 600 V ac |
| Min. Single Wire Size | 14 AWG |
| Min. Wire Combination | (2) 12 AWG |
| Minimum Conductor Size | (2) #12 AWG |
| minimum qty | 25 |
| Minimum Single Wire Size | 14 AWG |
| Number of Conductors | 2 to 6 |
| Overall Height | 1.49 in |
| Overall Width | 0.76 in |
| package quantity | 25 BX |
| Product Type | Wire Connector |
| Series | B4 |
| Short Description | Wire Connector, Blue/Gr. |
| Special Features | Classic Fin Design Prov. |
| standard | CSA C22.2 #188, UL 486C. |
| Standards | CE, CSA Certified, UL L. |
| Standards Met | CSA C22.2 #188;UL 486C . |
| sub brand | B-Cap(R) |
| Twist-On Wire Size Rang. | 14 AWG - 6 AWG |
| UNSPSC | 39121445 - Twist on wir. |
| UPC | 781789452036 |
| Voltage Rating | 600 |
| Weight | 0.02 lb |
| Weight per each | 0.45 |
| Width | 0.76 in |
| Wire Connector Style | Wing |
| Wire Size Ranges | 14 AWG - 6 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Elliott Electric | B41 | 0.7302 | 1 | 25 | | Buchanan | 0.45 | 0.7302 @ 25 |
| AmazonTP | B000LDCYWS | 14.48 | 1 | 25 | 1 | Buchanan | | 14.48 @ 25 |
 | Zoro | G1458712 | 16.89 | 1 | 115 | | Buchanan | 0.65 | 16.89 @ 25 |
 | sustainablesupply.com | C1213476 | 25.42 | 1 | 25 | | Buchanan | 0.65 | 25.42 @ 25 |
 | Raptor Supplies | AF2MLC | 34.615503 | 1 | 25 | | BUCHANAN | | 34.615503 @ 25 |
| steinerelectric.com | 19332 | 88.49 | 1 | 25 | | BUCHANAN | | 88.49 @ 25 |
