A.O. Smith B128

B006H40CAQ

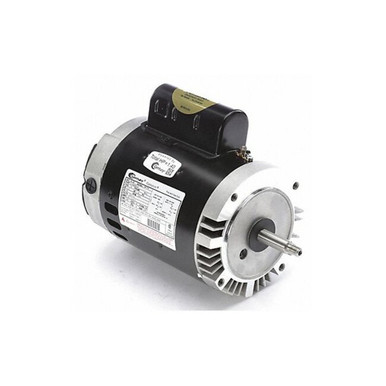

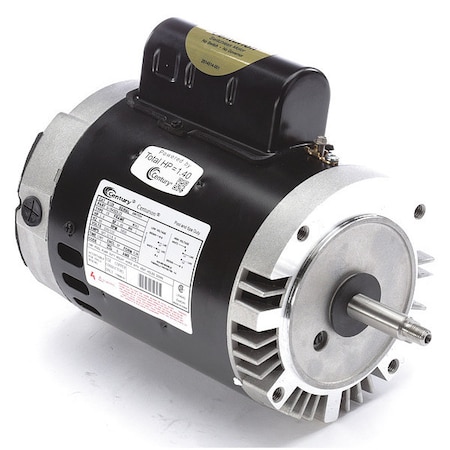

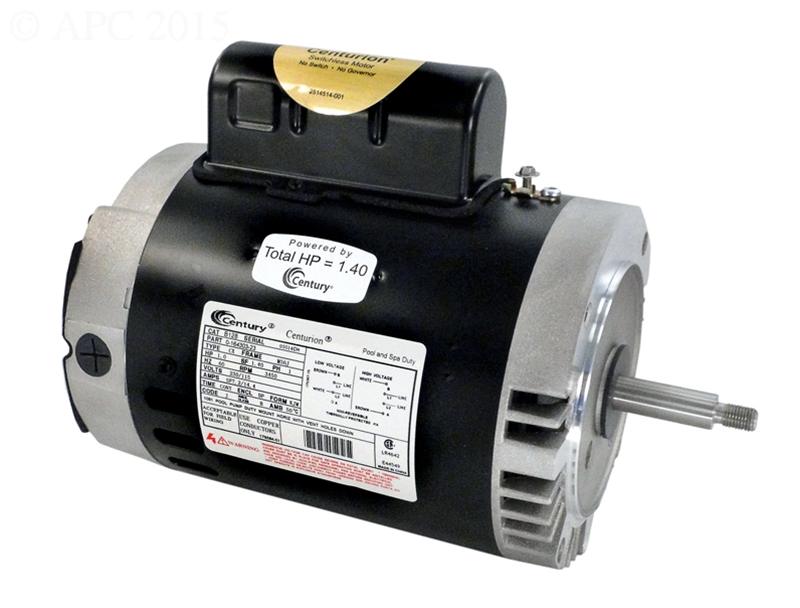

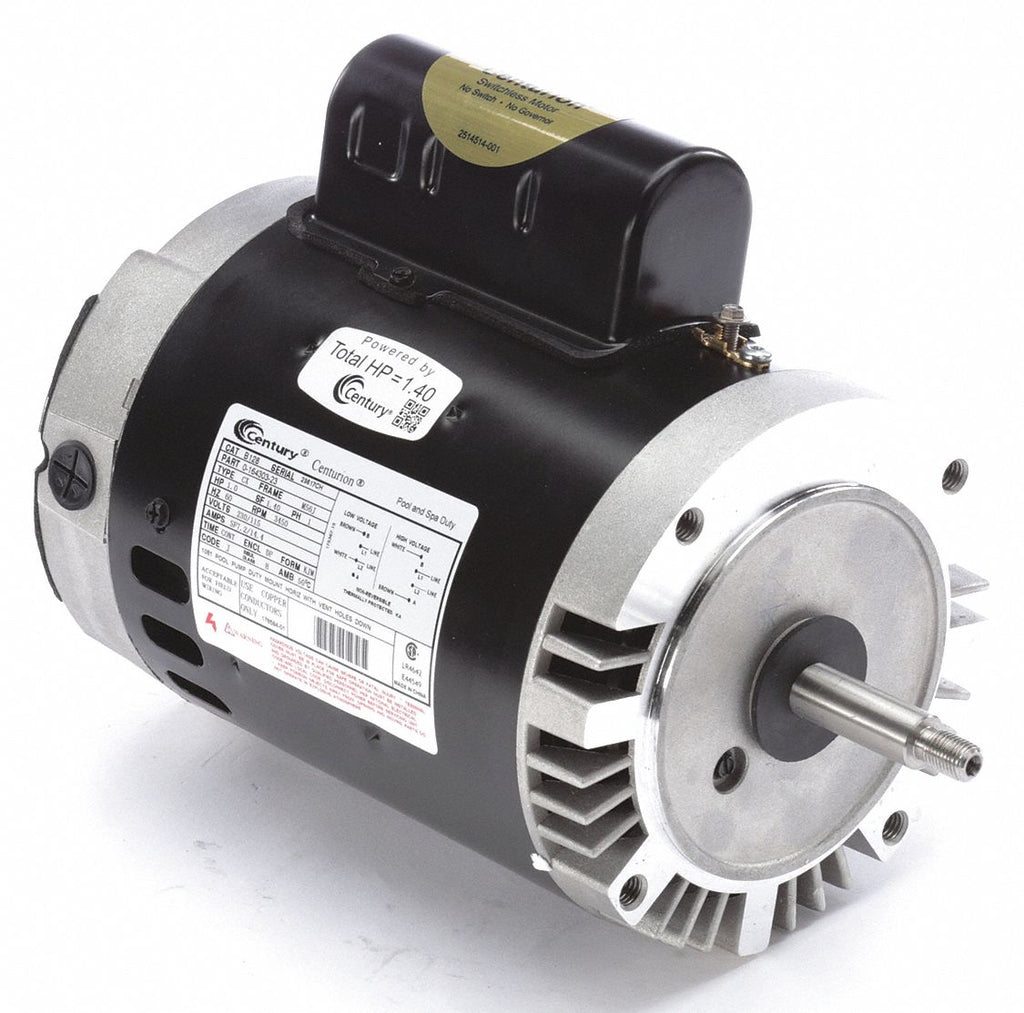

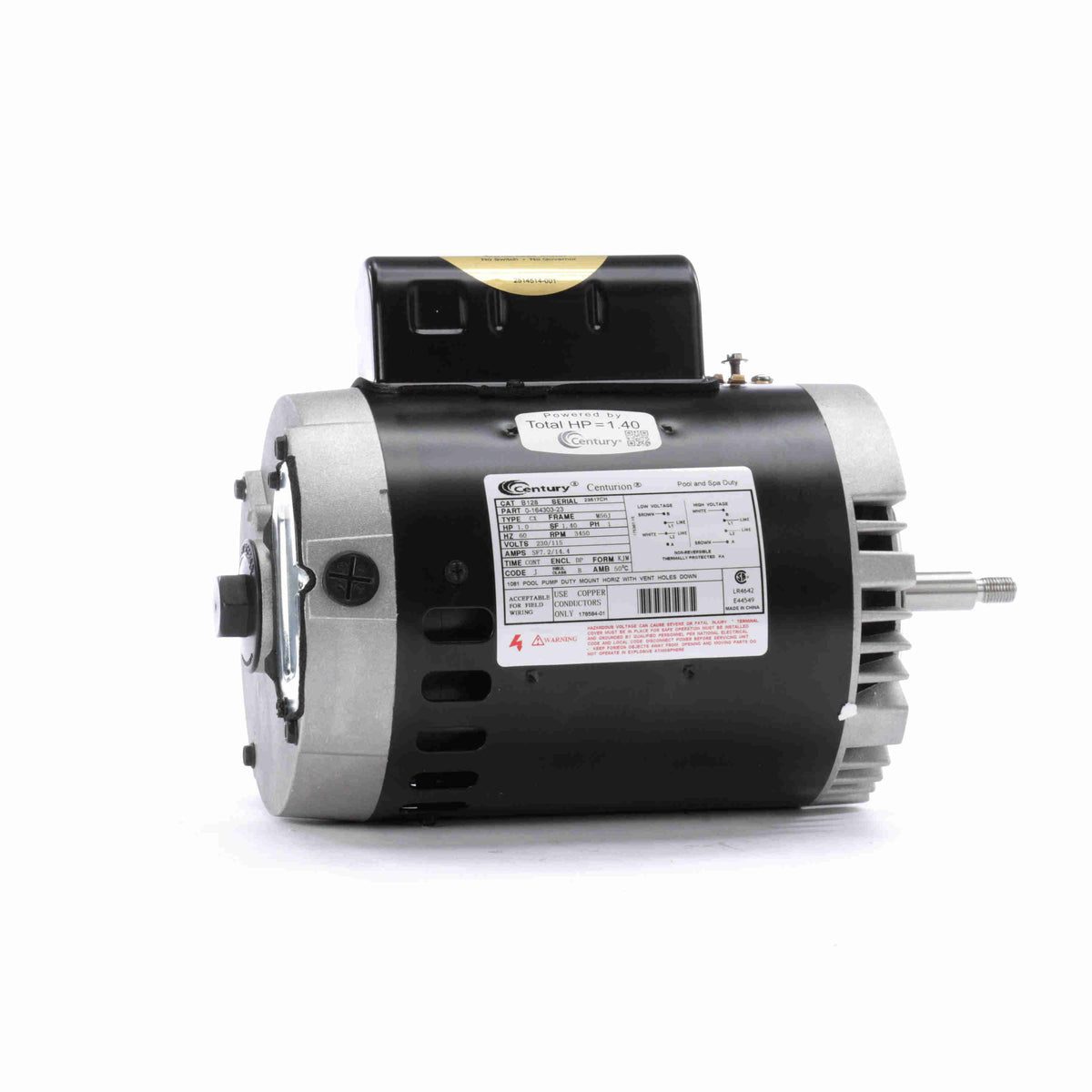

A.O. Smith B128 1HP 115/230V 1-Speed SF-1.40 56J Frame C-Face Motor

A.O. Smith B128 1HP 115/230V 1-Speed SF-1.40 56J Frame C-Face Motorzoom

Attributes

Key Value
<span style="color#ff0000;">We cannot shi.
Amps7.2/14.4
B128 is listed in Centu.Jacuzzi 90118571, Centu.
Banned StatesThis product is banned .
BearingsBall
Body Dia.6.5 in, 6.5"
BrandCentury
CapacitorIncluded
ColorBlack
Current Stock3
Delivery Time2-5 Business Days
Duty CycleContinuous
Enclosure TypeODP (Open Dripproof)
FinishBlack
Frame56J
Full Load Amps14.4/7.2, 7.2/14.4
Height9 1/8 in
HP1
Hz60
Ins. ClassB
Insulation ClassB
International ShippingNo
ItemPool Pump Motor, Pool a.
Lead TimeExpected to ship in 1-2.
Length Less Shaft9 9/16", 9 9/16 in
ManufacturerAO Smith
Manufacturer Part #B128
Max. Ambient Temp.50 Degrees C
Max. SF Amps14.4
Maximum Ambient Tempera.50? C
Motor ApplicationPump
Motor BearingsBall
Motor DesignPermanent Split Capacit.
Motor Diameter6-1/2"
Motor Efficiency GroupStandard Efficient
Motor Enclosure DesignOpen Dripproof
Motor Flange MaterialAluminum
Motor Frame MaterialSteel
Motor Mounting TypeFace
Motor Service Factor1.4, 1.40
Motor Shaft DesignThreaded
Motor Shaft RotationCCWSE
Motor Sub ApplicationPool and Spa Pump
Motor Thermal ProtectionAuto
MountingC-Face
MpnB128
Nameplate RPM3,450
No. of Speeds1
Number of Speeds1
Overall Length12 1/8", 12 1/8 in
Phase1, Single
Product TypePSC (Permanent Split Ca.
RotationCCW Pump End
RPM3450
RPM Range3,001 - 3,600, 3,001-3,.
Service Factor (SF)1.40
Shaft Dia.5/8 in, 5/8"
Shaft Dia. (In.)5/8
Shaft DiameterThreaded
Shaft Length2-9/16", 2 1/2 in
Shaft Material303 Stainless Steel
Ship Weight25 lbs.
SKUZO-G0537993, MGT-60-5099
StandardsCSA (LR43341/LR94643), .
Stator TypePermanent Split Capacit.
SubCategoryMotors/Ac Motors
Technical Specs<p>Model: B128
Thermal ProtectionAutomatic
UPC0011277688624
Usable @ 200VNo
Usable @ 208VNo
Voltage115/230V AC, 115/230
Voltage Compatibility115, 120, 230, 240, 115.
Volts115/230
Weight26 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB007ATO0PK186.951In Stock2Century Electric/AO Smith Motors Co186.95 @ 1
thumbzoomktool.netB128250.31In StockCentury250.3 @ 1
thumbzoomcshincorporated.comUB128257.121In StockAO Smith / Century25.0257.12 @ 1
thumbzoomMRO Supply6424641267.961In StockCentury267.96 @ 1
thumbzoomZoroG0537993268.991In StockCentury25.35268.99 @ 1
yourpoolhq.comMGT-60-5099282.991In StockAO Smith282.99 @ 1
thumbzoomgetpoolparts.comB128285.481In StockCentury Motors285.48 @ 1
thumbzoommidwestapplianceparts.comB128-AO-P288.4611AO Smith288.46 @ 1
thumbzoomemotorpro.comB128290.621In StockCentury25.0290.62 @ 1
Wild West Pool SuppliesB128294.831In StockA.O. Smith26.0294.83 @ 1
thumbzoomsustainablesupply.comC1564493297.061In StockCentury25.35297.06 @ 1
thumbzoomNational Supply NetworkB516766307.341In StockAO SMITH307.34 @ 1
hvacdiscountstore.comCEN--B128320.451In StockCENTURY MOTORS320.45 @ 1
thumbzoomsimsupply.comZO-G0537993325.5213Century325.52 @ 1
grainger.caAOSB128401.211040681In StockCENTURY25.35401.21104068 @ 1
thumbzoomRaptor SuppliesAE6ABD521.45607151In StockCENTURY521.4560715 @ 1
poolzoom.comMGT-60-5099580.981360Century25.0580.98 @ 1
