- mpn4THZ5
- brandname: Dayton
- manufacturername: Dayton

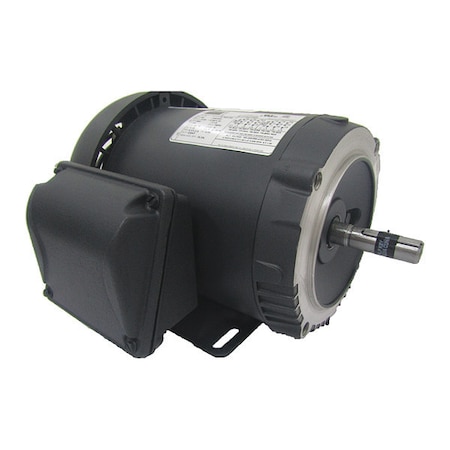

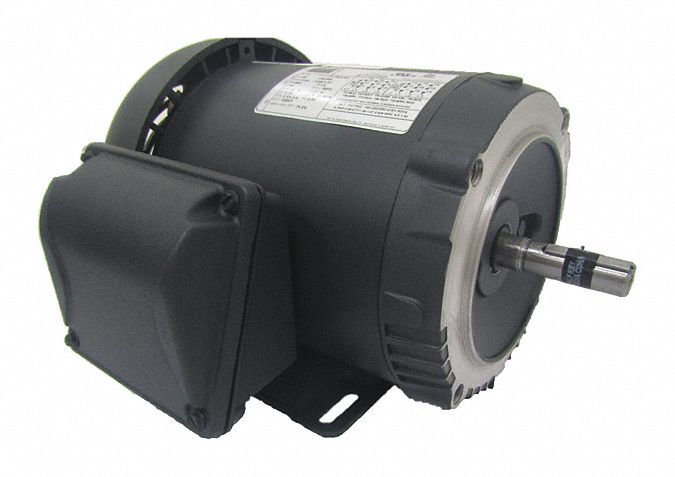

Dayton 3/4 HP General Purpose Motor,3-Phase,1135 Nameplate RPM,Voltage 208-230/460,Frame 56C
- Brand: Dayton
- PartNumber: 4THZ5
- PackageQuantity: 1
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Amps | 3.0-3.0/1.5 |
| Bearings | Ball |
| Brand | Dayton |
| Cross Reference | 4TJA1 |
| Current Stock | 4 |
| Duty Cycle | Continuous |
| Efficiency | 74.0% |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed . |
| Frame | 56C |
| Frame Material | Steel |
| Full Load Amps | 3.0/1.50 |
| HP | 3/4 |
| HP @ 50Hz | 920 |
| Hz | 60 |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Length Less Shaft | 10 15/16 in |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Diameter | 6-1/2" |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Co. |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 10-15/16" |
| Motor Thermal Protection | None |
| Mounting | C-Face/Rigid |
| Mpn | 4THZ5 |
| Nameplate RPM | 1,135 |
| NEMA Design | B |
| No. of Speeds | 1 |
| Nominal Efficiency | 75.5 % |
| Number of Speeds | 1 |
| Overall Length | 12-13/16", 12 13/16 in |
| Part Winding Start Capa. | No |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 1135 |
| RPM Range | 1,101-1,200 |
| Service Factor (SF) | 1.15 |
| Shaft Dia. | 5/8 in |
| Shaft Diameter | 5/8" Keyed |
| Shaft Length | 1-7/8", 1 7/8 in |
| Ship Weight | 35 lbs. |
| SKU | ZO-G2632007 |
| Standards | CE, CSA, UL, UL Recogni. |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | None |
| UPC | 190735334362 |
| Voltage | 230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | GGE4THZ5 | 313.50464364 | 1 | In Stock | | DAYTON | 34.23 | 313.50464364 @ 1 |
 | Zoro | G2632007 | 342.99 | 1 | 11 | | Dayton | 34.23 | 342.99 @ 1 |
| emotorpro.com | 4THZ5 | 391.64 | 1 | In Stock | | Dayton | 35.0 | 391.64 @ 1 |
 | simsupply.com | ZO-G2632007 | 397.57 | 1 | 4 | | Dayton | | 397.57 @ 1 |
 | sustainablesupply.com | C2776306 | 456.58 | 1 | In Stock | | Dayton | 34.23 | 456.58 @ 1 |
 | Raptor Supplies | AD9LLY | 506.7517455 | 1 | In Stock | | DAYTON | | 506.7517455 @ 1 |
