Dodge P2B-SCEZ-100-SHCR

B074HDPBP9

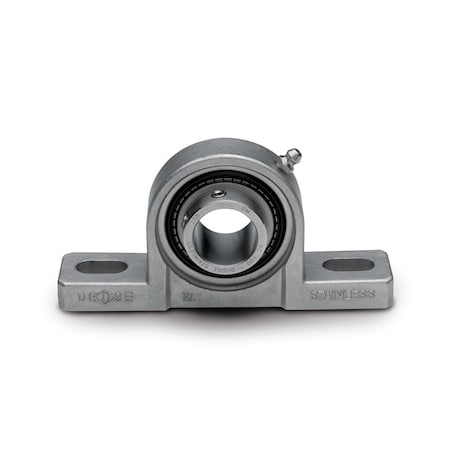

P2B-SCEZ-100-SHCR Pillow Block Bearing ; 1 BORE 1-7/16" Base-CTR HGT 2 Hole"

P2B-SCEZ-100-SHCR Pillow Block Bearing ; 1 BORE 1-7/16" Base-CTR HGT 2 Hole"zoom

Attributes

Key Value
Actual Bolt Center to C.0 Inch | 0Millimeter
ApplicationWashdown
Ball bearing series205 series
Base to center height1.4400 in, 36.576 mm
Base to Center Height1.438 Inch | 36.525 Mil.
Bearing typeBall, ball
Bolt centerline range3.68 inch-4.50 inch
Bolt Diameter0.3750 in
Bolt Spacing Maximum4.5 Inch | 114.3Millime.
Bolt Spacing Minimum3.688 Inch | 93.675Mill.
Bolt to bolt max4.5000 in, 114.3 mm
Bolt to bolt min3.6800 in, 93.472 mm
Bore1 in
Bore length1.3400 in, 34.036 mm
BrandDODGE
CategoryPillow Block Bearings
DutyStandard Duty
ExpansionNo
Expansion / Non-expansi.Non-expansion
Expansion capabilityNon-expansion (fixed)
Global Part Number GPN521915
GreasableYes
Harmonized Tariff Code8483.20.40.40
High tempNo
Housing Configuration1 Piece Solid
Housing constructionSolid
Housing MaterialStainless Steel
Housing materialStainless Steel
Housing optionStainless Steel
Housing Style2 Bolt Pillow Block
Housing typeTwo-bolt pillow block
I.D.1 in
Inch - MetricInch
Insert materialPlated steel
Insert optionCorrosion resistant
Insert Part NumberINS-SC-100-CR
Insert typeBall Bearing
Length Thru Bore1.188 Inch | 30.17 Mill.
LockingSet Screw
Lubrication typeGrease
Manufacturer NameABB MOTORS AND MECHANIC.
Mounting Bolts3/8 Inch
Mounting MethodSet Screw
Nominal Bolt Center to .4.1 Inch | 105 Millimet.
Number of Mounting Holes2
Other FeaturesSingle Row | Normal Dut.
Package Quantity1
price$ 155.69 / each
RelubricatableYes
RelubricationYes
Rolling elementStandard duty ball
Seal optionQuadGuard seals with fl.
SealsSingle Lip Contact
Sensor readyAdapter required
Shaft attachmentSetscrew
Shaft centerline height1.44 inch
Shaft diameter1.0000 in
Standoff housingNo
Suitable for high tempe.No
Suitable for washdownYes
titleP2B-SCEZ-100-SHCR
TypePillow block 2-Bolt
UNSPSC31171511
Weight / kgm0.717
Weight / LBS1.59

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomLily BearingP2B-SCEZ-100-SHCR132.341In StockDODGE1.5774132.34 @ 1
thumbzoomMRO Supply132957146.881In StockDodge146.88 @ 1
thumbzoomapexindustrialautomation.comP2B-SCEZ-100-SHCR148.861In StockDodge148.86 @ 1
thumbzoomZoroG700471862188.991In Stock20Dodge188.99 @ 1
motionindustries.com02343099230.431In StockDodge230.43 @ 1
