GENERAL SEMICONDUCTOR (VISHAY) P6KE6.8A-E3/54

mpnP6KE6.8A-E3/54
brandname: General Semiconductor / Vishay
manufacturername: General Semiconductor / Vishay

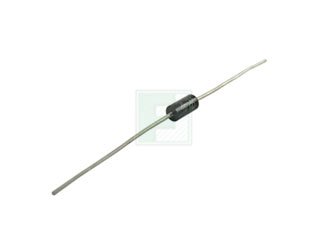

GENERAL SEMICONDUCTOR (VISHAY) P6KE6.8A-E3/54 600 W 6.8 V Uni-Directional Through Hole Transient Voltage Suppressor Diode - 4000 item(s)

GENERAL SEMICONDUCTOR (VISHAY) P6KE6.8A-E3/54 600 W 6.8 V Uni-Directional Through Hole Transient Voltage Suppressor Diode - 4000 item(s)

zoom

Brand: GENERAL SEMICONDUCTOR (VISHAY)
PartNumber: P6KE6.8A-E3/54
Model: P6KE6.8A-E3/54
PackageQuantity: 1
Manufacturer: GENERAL SEMICONDUCTOR (VISHAY)
Label: GENERAL SEMICONDUCTOR (VISHAY)

Attributes

Key	Value
Applications	General Purpose
Base Product Number	P6KE6.8
Breakdown Voltage	6.45 V
Capacitance @ Frequency	-
Category	Circuit Protection
Clamping Voltage	10.5 V
Configuration	Single
Current - Peak Pulse (1.	57.1A
Current, Ratings	57.1 A
Description	TVS DIODE 5.8VWM 10.5VC.
Detailed Description	10.5V Clamp 57.1A Ipp T.
Diameter	3.6 mm
Digi-Key Part Number	P6KE6.8A-E3/54GITR-ND -.
Dimensions	3.6 Dia. x 7.6 L mm
For Use With	Data/Comm, Industrial E.
Leakage Current	1000 ?A
Length	0.299" (7.6mm)
Manufacturer	Vishay General Semicond.
Manufacturer Product Nu.	P6KE6.8A-E3/54
Manufacturer Standard L.	10 Weeks
Maximum Junction Temper.	175 ?C
Maximum Operating Tempe.	+175 ?C
Mfr	Vishay General Semicond.
Minimum Operating Tempe.	-55 ?C
Mounting Type	Through Hole
Number of Pins	2
Operating Temperature	-55?C ~ 175?C (TJ), -55.
Package	Tape & Reel (TR)
Package / Case	DO-204AC, DO-15, Axial
Package Type	DO-204AC
Peak Current	57.1 A
Power - Peak Pulse	600W
Power Dissipation	600 W
Power Line Protection	No
Primary Type	Diodes
Product Header	Surface Mount Bi-Direct.
Product Status	Active
Reverse Standoff Voltage	5.8 V
Series	TransZorb?, P6KE Series
Stand Off Voltage	6.8 V
Supplier Device Package	DO-204AC (DO-15)
Suppressor Type	Voltage
Surge Current	100 A
Temperature Operating R.	-55 to +175 ?C
Termination	Leadwires
Test Current	10 mA
Type	TVS, Zener
Unidirectional Channels	1
Voltage - Breakdown (Mi.	6.45V
Voltage - Clamping (Max.	10.5V
Voltage - Reverse Stand.	5.8V
Working Voltage	3.5 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Win Source	P6KE6.8A-E3/54	0.069	600	4500		Vishay		0.069 @ 1
	Hotenda	H639936	0.12491	1	4000		Vishay Semiconductor/Diodes Division		0.12491 @ 1
	Newark	76K9724	0.23	4000	434		VISHAY		0.23 @ 4000
	us.rs-online.com	70217589	0.27059	4000	434		General Semiconductor / Vishay		0.27059 @ 4000
	TTI	P6KE6.8A-E3/54	0.285	100	7175		Vishay		0.285 @ 100
	Mouser	625-P6KE6.8A-E3	0.45	1	868		Vishay		0.45 @ 1
	Digi-Key	2145343	0.564	1	26318		Vishay General Semiconductor - Diodes Division		0.564 @ 1
	RS Delivers	638-8687	0.6072	1	505		Vishay		0.6072 @ 1
