Leeson 116775.00

mpn116775.00
brandname: LEESON
manufacturername: LEESON

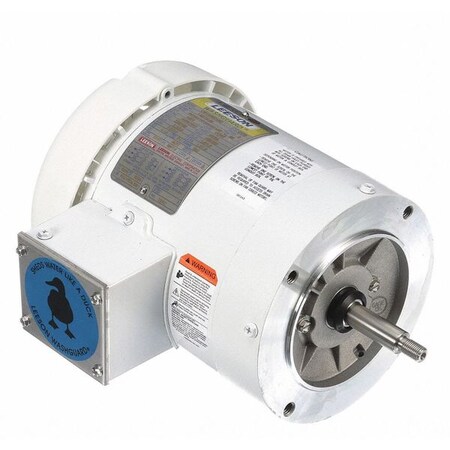

Leeson 116775.00 Washguard Jet Pump Motor, 3 Phase, 56J Frame, Round Mounting, 1HP, 3600 RPM, 208-230/460V Voltage, 60/50Hz Fequency

Brand: Leeson
PartNumber: 116775.00
Model: C6T34WC15 C
Size: 3 Phase
PackageQuantity: 1
Binding: Misc.
Manufacturer: Leeson
Label: Leeson

Attributes

Key	Value
Amperage Rating	3.2/1.6 A
Application	Washguard
Application Type	Jet Pump (JM/JP) Motors
Approvals	CSA, UL
Bearing Type	10.81, Ball
Body Dia.	7-25/64"
Category	Electric Motor
CC Number	CC005A
Class/Group	C6T34WC15
Composition	Steel
Conduit Box	Split Clam Shell with R.
Country of Origin (subj.	United States
Description:	..1HP..3450RPM.56.TEFC..
Dimensions	11.37 in L
Drain Plugs	(4) Each End, (2) In Co.
Duty	Continuous
Efficiency %	77 %
Enclosure	TEFC, Totally Enclosed .
Enclosure Type	Totally Enclosed Fan Co.
Endshields	Cast Aluminum
Family Series	Leeson Motors, Washguar.
Frame	56J
Frame Material	Rolled Steel
Frame Remarks	FOOTLESS
Frequency Rating	60 Hz
Full Load Amps	3.2/1.6
Gross Weight	0 lbs
Horsepower	1 hp
HP	1
Hz	60/50
Includes	Splice Kit
Ins. Class	F
Insulation Class	Class F
Inverter Rated	No
Item	Washdown Jet Pump Motor
Item Condition	FACTORY NEW
Item Number	116775.00
Length Less Shaft	8-15/16"
Manufacturer	LEESON ELECTRIC CORPORA.
Manufacturer Part Number	116775.00
Material	Rolled Steel
Max. Ambient Temp.	40 Degrees C
MFG Part #:	116775.00
Model Number	C6T34WC15
Motor Application	Washdown
Motor Bearings	Ball
Motor Design	3-Phase
Motor Enclosure Design	Totally Enclosed Fan-Co.
Motor Frame Material	Rolled Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Face
Motor Service Factor	1.15
Motor Shaft Design	Threaded
Motor Shaft Rotation	CWLE
Motor Thermal Protection	None
mounting	C-face (NO base)
Mounting Type	C-Face Less Base, Round.
Nameplate RPM	3450
NEMA Design	B
NEMA Frame	56J
Net Weight	35 lbs
Nominal Efficiency	77.0%
Nominal Voltage	208 VAC, 240 VAC, 480 V.
Number of Poles	2
Number of Speeds	1
Overall Length	10.81 ", 11-3/8"
Phase	3, 3 ph
Product Series	Washguard
Rotation	Reversible
RPM	3600, 3,600 RPM
RPM Range	3001-3600
Service Factor	1.15
Shaft Dia.	5/8"
Shaft Diameter	UL;CSA
Shaft Length	2-7/16"
Shaft Material	303 Stainless Steel
Shaft Size	0.63 in Dia x 2.44 in L
Special Features	Washdown Duty Motors
Standards	UL(E49747), CSA(LR2025)
Supplier:	LEESON ELECTRIC CORPORA.
UPC:	691720348932
Voltage	230/460
Voltage Compatibility	460, 230/460, 220-230/4.
Volts	230/460

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Zoro	G4241758	398.34	1	In Stock	25	Leeson		398.34 @ 1
Walker Industrial	116775-00	728.1	60	In Stock	17	Leeson		728.1 @ 60
Dealers Electric	116775.00	737.18	1	In Stock		Leeson	24.0	737.18 @ 1
Galco	116775.00-LEES	806.77	1	In Stock		Leeson	35.0	806.77 @ 1
cbtcompany.com	116775.00	854.32	1	In Stock		Leeson Electric		854.32 @ 1
kscdirect.com	LEE 116775.00	946.97	1	In Stock		LEESON ELECTRIC CORPORATION		946.97 @ 1
