Marathon Electric B314

B0042G7DTO

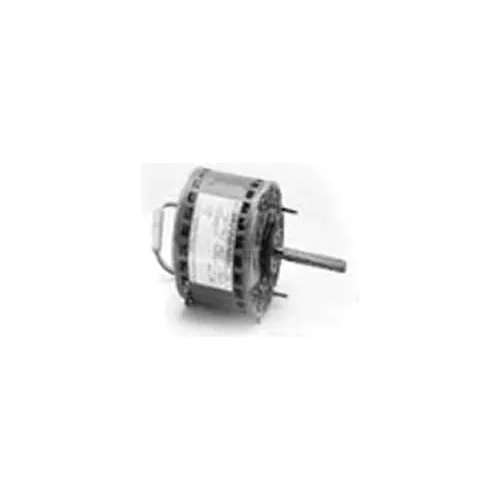

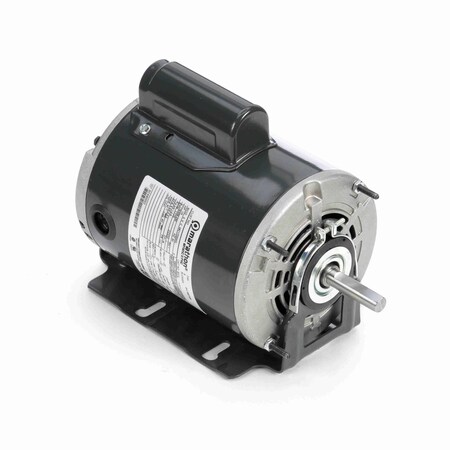

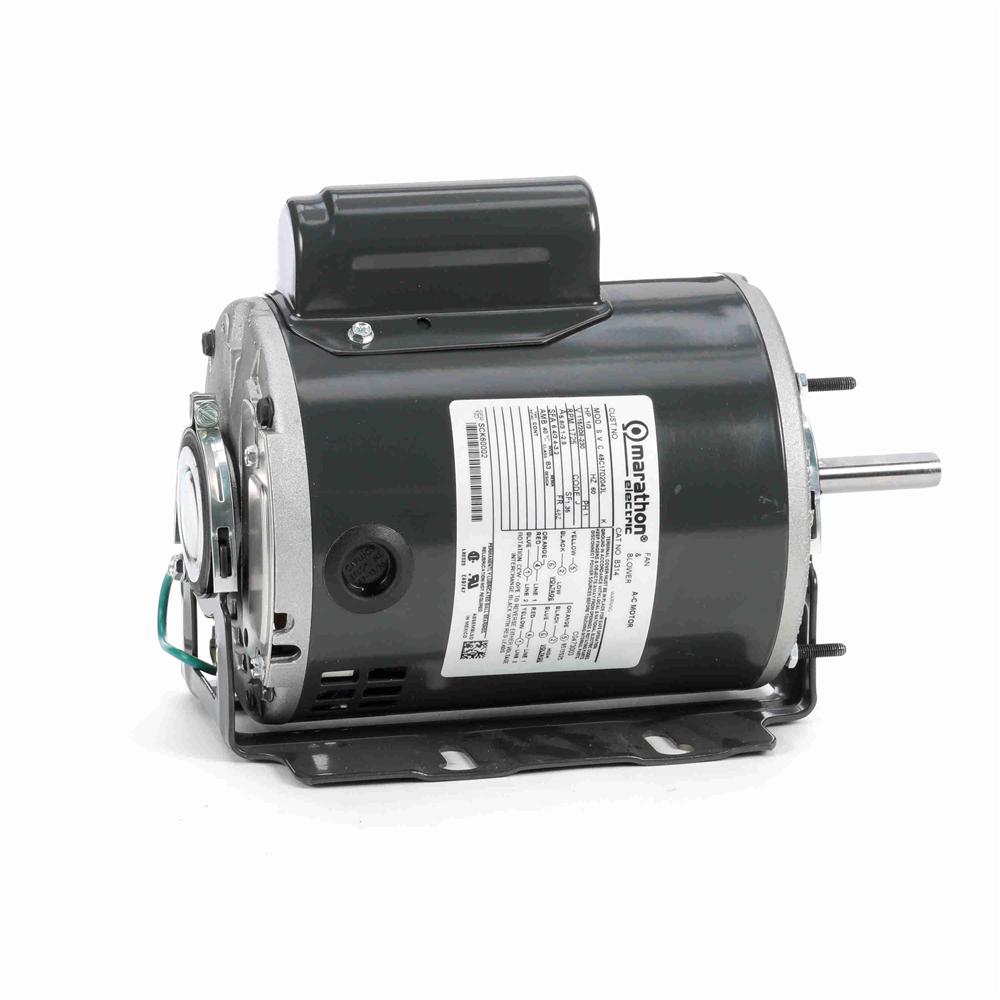

Marathon B314 48YZ Frame Open Drip Proof 48C17D2043 Belt Drive Motor, 1/3 hp, 1725 RPM, 115/208-230 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Ring Mount

Marathon B314 48YZ Frame Open Drip Proof 48C17D2043 Belt Drive Motor, 1/3 hp, 1725 RPM, 115/208-230 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Ring Mountzoom

Attributes

Key Value
Amps5.8/3.1-2.9
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension10.22 (in.)
Catalog NumberB314
CEN
CompositionRolled Steel
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.64
Efficiency %64 %
Electrical TypeCapacitor Start Inducti.
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
Family SeriesMarathon Electric Motors
Frame48Z
Frame MaterialRolled Steel
Frame Type48Z
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower1/3 hp
HP1/3
Hz60
Insulation ClassB
IP Code22
Item NumberB314
Kilowatts0.25 kW
KVA CodeJ
ManufacturerMarathon Electric
Manufacturer Model #048C17D2043
Manufacturer Part Number048C17D2043
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length6.25"
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Ring - Extend.
NEMA Frame48Z
Net Weight18 lbs
Nominal Voltage120 VAC, 208 VAC, 240 V.
Number of Poles4
Number of Speeds1
ODE Bearing TypeBall
Overall Length10.22", 10.22 "
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypeCapacitor Start
RotationReversible, Selective C.
RPM1725, 1700 - 1800, 1,72.
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.35
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
Shaft Extension1.97 (in.)
Shaft Length1.97"
Shaft TypeSingle Special Extension
Ship Weight18 lbs.
Speeds1
Type of Overload Protec.No
ULRecognized
Voltage115/208-230
Voltage (AC)115 VAC, 208-230 VAC
Volts115, 208, 230, 115/208-.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comB314188.01In StockMARATHON188.0 @ 1
thumbzoomGalcoB314-MARA264.141In StockMarathon Electric18.0264.14 @ 1
thumbzoomGlobal IndustrialWBB871967265.951In StockMarathon Motors265.95 @ 1
thumbzoomMRO Supply2269660267.141In StockMarathon Electric267.14 @ 1
thumbzoomcshincorporated.comMB314268.161In StockMarathon18.0268.16 @ 1
thumbzoomemotorpro.comB314326.191In StockMarathon18.0326.19 @ 1
thumbzoomDreisilkerMA-RBC-B314326.241In StockMarathon326.24 @ 1
thumbzoomNational Supply NetworkB871669329.941In StockMARATHON MOTORS329.94 @ 1
thumbzoommidwestapplianceparts.comB314-MT-P338.311In StockMarathon338.31 @ 1
thumbzoomZoroG2531189342.991In StockMarathon342.99 @ 1
thumbzoomindustrialstores.comB314370.41In Stock10Marathon Motors370.4 @ 1
