Marathon Electric K277

B007ZQL1F0

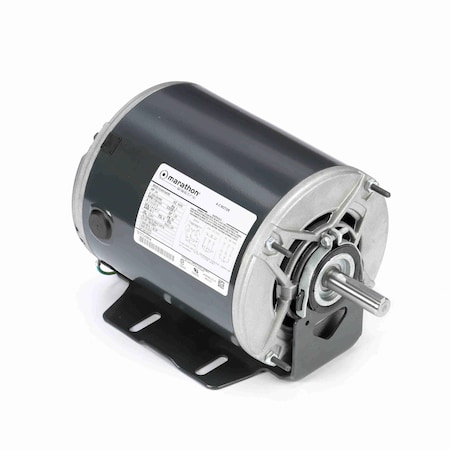

Marathon K277 Fan and Blower Motor, 3 Phase, 3/4 hp, 1800 RPM, 208-230/460V, 3.3-3.0/1.5 amp

Marathon K277 Fan and Blower Motor, 3 Phase, 3/4 hp, 1800 RPM, 208-230/460V, 3.3-3.0/1.5 ampzoom

Attributes

Key Value
Alternate Mfr Part Numb.5K46KN4085
Amps3.3-3.0,1.5, 3.3-3.0/1..
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension10.88 (in.)
Catalog NumberK277
CEN
CompositionRolled Steel
CSAY
Current Rating3.3 to 3.0 A
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency74, 74%
Efficiency %74 %
Electrical TypeThree Phase
EnclosureODP, Drip Proof
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
Family SeriesMarathon Electric Motors
Frame56
Frame MaterialRolled Steel
Frame Type56
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower3/4 hp
Horsepower Rating0.75 HP
HP3/4
Hz60, 60/50
Insulation ClassB
Insulation TypeClass B
IP Code-
Item NumberK277
Kilowatts0.56 kW
KVA CodeK
ManufacturerMarathon Electric
Manufacturer Model #5K46KN4085
Manufacturer Part Number5K46KN4085
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter6-1/2"
Motor OrientationAny
Motor Shell Length6.55"
Mounting OrientationAny
Mounting TypeResilient Base, Rigid B.
NEMA Frame56
Net Weight24 lbs
Number of Poles4
Number of Speeds1
ODE Bearing TypeBall
Overall Length10.88", 10.88 "
Phase3, 3 Phase
Product CategoryHVAC/R Motors > Fan an.
Product Type3 Phase
RotationCounterclockwise/Clockw.
RPM1725 RPM, 1725, 1725/14.
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1.25
Shaft Diameter0.63 ", 5/8 (in.), 5/8"
Shaft Extension1.88 (in.)
Shaft Length1.88"
Shaft Type-
Ship Weight24 lbs.
Special FeaturesService Factor - 1.25
Speeds1
StandardsUL Recognized
Supply Voltage208-230/460 VAC
TypeThree Phase
Type of Overload Protec.NONE
ULRecognized
UPC Code722856041005
Voltage208-230/460
Voltage (AC)208-230 VAC, 460 VAC
Volts208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comK277234.01In StockMARATHON234.0 @ 1
thumbzoomcshincorporated.comMK277241.191In StockMarathon24.0241.19 @ 1
thumbzoomapexindustrialautomation.comK277249.991210Marathon249.99 @ 1
thumbzoomGalcoK277-MARA256.571In StockMarathon Electric24.0256.57 @ 1
thumbzoomemotorpro.comK277286.351In StockMarathon24.0286.35 @ 1
thumbzoommidwestapplianceparts.comK277-MT-P296.981In StockMarathon296.98 @ 1
us.rs-online.com72237978304.151In StockMarathon Motors304.15 @ 1
thumbzoomVoomi SupplyK277307.221In StockMarathon Motors307.22 @ 1
thumbzoomNational Supply NetworkB871766309.061In StockMARATHON MOTORS309.06 @ 1
thumbzoomZoroG2533681312.491In Stock10Marathon312.49 @ 1
thumbzoomDreisilkerMA-RBC-K277314.981In StockMarathon314.98 @ 1
thumbzoomindustrialstores.comK277318.0517Marathon Motors318.05 @ 1
thumbzoomMRO Supply2269690341.791In StockMarathon Electric341.79 @ 1
thumbzoomGuardianMARSK277370.921In StockMarathon370.92 @ 1
thumbzoomptacsolutions.comK277384.0314Marathon Motors384.03 @ 1
