Martin 8 8V 1500 J

B004BJ2HIY

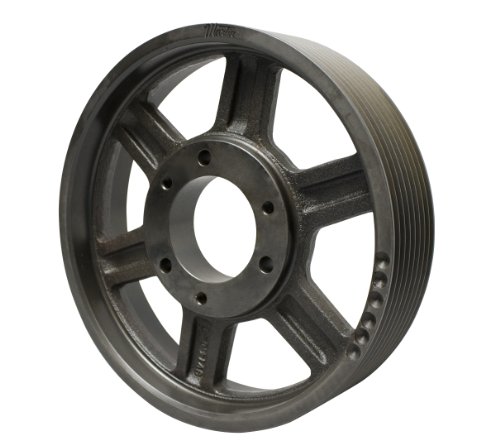

Martin 8 8V 1500 J Hi-Cap QD Sheave, 8V Belt Section, 8 Grooves, J Bushing required, Class 30 Gray Cast Iron, 15" OD, 1654 max rpm, 14.8" Pitch Diameter

Martin 8 8V 1500 J Hi-Cap QD Sheave, 8V Belt Section, 8 Grooves, J Bushing required, Class 30 Gray Cast Iron, 15" OD, 1654 max rpm, 14.8" Pitch Diameterzoom

Attributes

Key Value
Belt Cross Section8V
Bore TypeBushed
Bushed ForJ
Bushing Maximum Bore Si.3.75 "
Bushing MountReverse
Bushing StyleQD
Length Through Bore4.5 "
MaterialCast Iron
Number of Grooves8
Outer Diameter15 in
Outside Dia15.000"
Pitch Diameter14.8 "
Sheave ConstructionArm / Spoke
Sheave Face Width9.375 "
Sheave TypeHigh Capacity
UPC Code697950123936
Weight167 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialzone.com8 8V 1500 J1355.821In StockMartin1.01355.82 @ 1
thumbzoomMRO Supply2557561485.421In StockMartin Sprocket1485.42 @ 1
us.rs-online.com724805761498.41In StockMartin Sprocket & Gear167.01498.4 @ 1
thumbzoomcbtcompany.com8 8V 1500 J1500.651In StockMartin Sprocket & Gear1500.65 @ 1
thumbzoomPurvis8 8V 1500 J1632.861In StockMartin1632.86 @ 1
factorysupplyoutlet.comRT49MF1636.31In StockMARTIN1636.3 @ 1
motionindustries.com007077622145.721In StockMartin2145.72 @ 1
thumbzoomZoroG33243812155.011Martin Sprocket & Gear2155.0 @ 1
