MEAN WELL RPS-60-5

mpnRPS-60-5
brandname: MEAN WELL
manufacturername: MEAN WELL

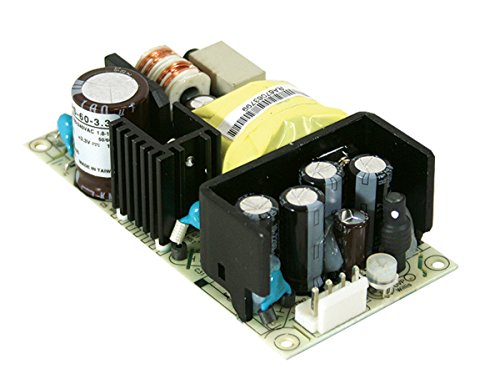

[PowerNex] Mean Well RPS-60-5 5V 10A 50W Single Output Medical Type Power Supply

[PowerNex] Mean Well RPS-60-5 5V 10A 50W Single Output Medical Type Power Supply

zoom

Brand: MEAN WELL
PartNumber: RPS-60-5
Model: RPS-60-5
PackageQuantity: 1
Binding: Personal Computers
Manufacturer: MEAN WELL
Label: MEAN WELL

Attributes

Key	Value
AC inrush current	Cold start, 30A at 115V.
Applications	ITE (Commercial), Medic.
Approval Agency	CB, CE, cURus, TUV
Base Product Number	RPS-60
Category	Power Supplies - Extern.
Configuration	Open Frame
Current - Output 1	10 A
Description	AC/DC CONVERTER 5V 50W
Detailed Description	Open Frame AC DC Conver.
Digi-Key Part Number	1866-4075-ND
Dimension (LxWxH)	101.6x 50.8x 29 mm
Dimensions	4.00 L x 2.00 W x 1.14 .
Efficiency	79%
EMC standards	EN55011 / EN55022 class.
Features	Adjustable Output, Univ.
Industry Aliases	new
Input Voltage	90 ~ 264 VAC Universal,.
Input Voltage Range	115-264 VAC
Leakage current	Less than 150uA at 264V.
Manufacturer	MEAN WELL USA Inc.
Manufacturer Product Nu.	RPS-60-5
Manufacturer Standard L.	14 Weeks
Mfr	MEAN WELL USA Inc.
Minimum Load Required	No
Mounting Type	Panel Mount, Chassis Mo.
Number of Outputs	1
Operating Temperature	-20?C ~ 70?C (With Dera.
Operation	Switching
Output Current	10 A
Output Power	50 W
Output Voltage	5 VDC, 5V
Overload protection	115%~150% hiccup mode, .
Package	Box
Packing	0.15kg ; 96pcs / 15.4kg.
Power (Watts)	50W
Primary Type	AC-DC
Product Status	Active
Series	RPS-60 (60W), RPS-60 Se.
Size / Dimension	4.00" L x 2.00" W x 1.1.
Special Features	3 Year Warranty ; Short.
Type	Medical, Open Frame
Voltage - Input	90 ~ 264 VAC, 127 ~ 370.
Voltage - Isolation	4 kV
Voltage - Output 1	5V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Voltage - Output 6	-
Wattage	60
Withstand voltage	I/P-O/P: 4kVAC, I/P-FG:.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	RPS-60-5	12.6	1	87		MEAN WELL		12.6 @ 2
	peaktopeakpower.com	RPS-60-5	12.6	1	2		Mean Well		12.6 @ 2
	Arrow	RPS-60-5	13.07	1	2		Mean Well		13.07 @ 2
	Future Electronics	3412608	15.12	1	2		MEAN WELL		15.12 @ 2
	Mouser	709-RPS60-5	15.89	1	94		Mean Well		15.89 @ 2
	powersupplymall.com	RPS-60-5	15.98	1	576		Mean Well		15.98 @ 2
	TME	RPS-60-5	17.38	1	2		MEAN WELL		17.38 @ 2
	Newark	14AJ2673	18.14	1	2		MEAN WELL		18.14 @ 2
	AmazonSC	B01HTH420A	18.53	1	2		MEAN WELL		18.53 @ 2
	us.rs-online.com	70388219	20.0	1	2		MEAN WELL		20.0 @ 2
	electricautomationnetwork.com	RPS-60-5	20.97	1	2		MEANWELL		20.97 @ 2
	Digi-Key	7706101	22.02	1	1356		MEAN WELL USA Inc.		22.02 @ 2
	RS Delivers	644-7130	27.6	1	2		Mean Well		27.6 @ 2
