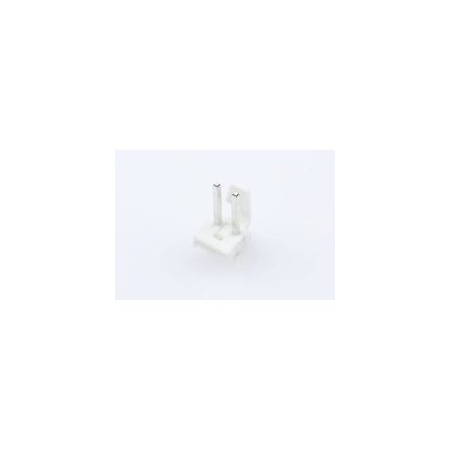

Molex / Waldom 171813-3002 Connector Headers and PCB Receptacles
- Brand: Molex / Waldom
- PartNumber: 171813-3002
- PackageQuantity: 1
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 171813-3002 |
| Alternate Part No. | 538-171813-3002 |
| Angle | Vertical |
| Application | Wire-to-Board |
| Applications | Automotive, General Pur. |
| Base Product Number | 171813 |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thicknes. | 60.0?in (1.52?m) |
| Contact Finish Thicknes. | 60.0?in (1.52?m) |
| Contact Gender | Pin (Male) |
| Contact Length - Mating | 0.448" (11.38mm) |
| Contact Length - Post | 0.093" (2.35mm) |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin, Pin |
| Current Rating | 13 A, 5 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER VERT 2POS 3. |
| Detailed Description | Connector Header Throug. |
| Digi-Key Part Number | WM10564TR-ND - Tape & R. |
| Family Name | KK 396 |
| Fastening Type | Friction Lock |
| Features | Pick and Place |
| Flammability Rating | UL 94 V-2 |
| Housing Material | Nylon |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Height | 0.446" (11.33mm) |
| Insulation Material | Polyamide (PA), Nylon |
| Manufacturer | Molex |
| Manufacturer Part No. | 171813-3002 |
| Manufacturer Product Nu. | 1718133002 |
| Manufacturer Standard L. | 24 Weeks |
| Mated Stacking Heights | - |
| Material Flammability R. | UL94 V-2 |
| Mating Post Length | 11.38 mm |
| Mfr | Molex |
| Mounting Style | Through Board |
| Mounting Type | Through Hole |
| Number of Circuits | 2 |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Positions Loa. | All |
| Number of Rows | 1 |
| Operating Temperature | - |
| Operating Temperature R. | - 40 C to + 105 C |
| Orientation | Vertical |
| Overall Contact Length | 0.671" (17.05mm) |
| Package | Tape & Reel (TR) |
| Package Quantity | 1 |
| Packaging | Reel, Tape & Reel |
| Pitch | 3.96 mm (0.156") In., 3. |
| Pitch - Mating | 0.156" (3.96mm) |
| Plating Material | Matte Tin |
| Primary Type | Board Mount |
| Product Category | Headers & Wire Housings |
| Product Status | Active |
| Product Type | Headers |
| Row Spacing - Mating | - |
| Series | 171813, KK396, 171813, . |
| Shrouding | Shrouded - 1 Wall |
| Special Features | Low-Halogen |
| Style | Board to Board or Cable |
| Termination | Solder |
| Termination Post Length | 2.37 mm |
| Termination Style | Through Hole |
| Tradename | KK |
| Type | Vertical Header, Shroud. |
| Voltage Rating | -, 600 V |
