- mpn1718133006
- brandname: Molex
- manufacturername: Molex

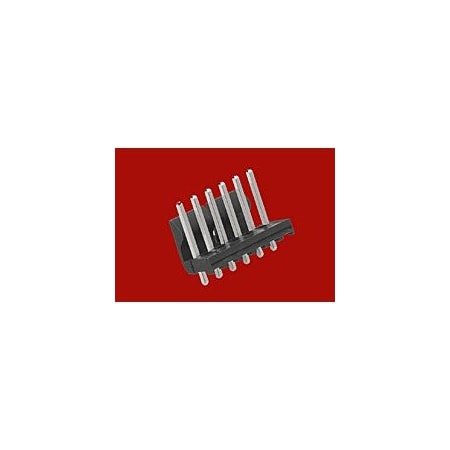

171813-3006, Molex/Waldom (25 Items)
- Brand: Molex / Waldom
- PartNumber: 171813-3006
- Model: 171813-3006
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 171813-3006 |
| Alternate Part No. | 538-171813-3006 |
| Angle | Vertical |
| Application | Wire-to-Board |
| Applications | Automotive, General Pur. |
| ASIN | B00OVES9AO |
| Base Product Number | 171813 |
| Brand | Molex |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thicknes. | 60.0?in (1.52?m) |
| Contact Finish Thicknes. | 60.0?in (1.52?m) |
| Contact Gender | Pin (Male) |
| Contact Length - Mating | 0.448" (11.38mm) |
| Contact Length - Post | 0.093" (2.35mm) |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin, Pin |
| Current Rating | 13 A, 5 A |
| Current Rating (Amps) | - |
| Description | CONN HEADER VERT 6POS 3. |
| Detailed Description | Connector Header Throug. |
| Digi-Key Part Number | WM10567TR-ND - Tape & R. |
| Family Name | KK 396 |
| Fastening Type | Friction Lock |
| Features | Pick and Place |
| Flammability Rating | UL 94 V-2 |
| Housing Material | Nylon |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Height | 0.446" (11.33mm) |
| Insulation Material | Polyamide (PA), Nylon |
| Item model number | 171813-3006 |
| Manufacturer | Molex |
| Manufacturer Part No. | 171813-3006 |
| Manufacturer Product Nu. | 1718133006 |
| Manufacturer Standard L. | 19 Weeks |
| Mated Stacking Heights | - |
| Material Flammability R. | UL94 V-2 |
| Mating Post Length | 11.38 mm |
| Mfr | Molex |
| Mounting Style | Through Board |
| Mounting Type | Through Hole |
| Number of Circuits | 6 |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Positions Loa. | All |
| Number of Rows | 1 |
| Operating Temperature | - |
| Operating Temperature R. | - 40 C to + 105 C |
| Orientation | Vertical |
| Overall Contact Length | 0.671" (17.05mm) |
| Package | Tape & Reel (TR) |
| Package Quantity | 1 |
| Packaging | Reel, Tape & Reel |
| Pitch | 3.96 mm (0.156") In., 3. |
| Pitch - Mating | 0.156" (3.96mm) |
| Plating Material | Matte Tin |
| Primary Type | Board Mount |
| Product Category | Headers & Wire Housings |
| Product Status | Active |
| Product Type | Headers |
| Row Spacing - Mating | - |
| Series | 171813, KK396, 171813, . |
| Shrouding | Shrouded - 1 Wall |
| Special Features | Low-Halogen |
| Style | Board to Board or Cable |
| Termination | Solder |
| Termination Post Length | 2.37 mm |
| Termination Style | Through Hole |
| Tradename | KK |
| Type | Vertical Header, Shroud. |
| Voltage Rating | -, 600 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Waldom | MOLEX 171813-3006 | 1.03 | 500 | 500 | | MOLEX | | 1.03 @ 500 |
| jensentools.com | 10152697 | 1.37 | 1 | 500 | | Molex | | 1.37 @ 1 |
 | Newark | 62X6819 | 1.6 | 1500 | 62 | | MOLEX | | 1.6 @ 1500 |
| Hotenda | H1301904 | 1.6819 | 100 | 62 | | Molex | | 1.6819 @ 100 |
| us.rs-online.com | 70378121 | 1.85 | 1 | 62 | | Molex Incorporated | | 1.85 @ 1 |
 | Digi-Key | 4879274 | 2.42 | 1 | 6709 | | Molex | | 2.42 @ 1 |
| swatee.com | 171813-3006 | 4.13 | 1 | 305 | | Molex | | 4.13 @ 1 |
| AmazonSC | B00OVES9AO | 442.68 | 1 | 62 | | MOLEX | | 442.68 @ 1 |
 | Zoro | G2746944 | 925.0 | 1 | 62 | | Molex | | 925.0 @ 1 |
