19130-0009

B00DWI7N6Q

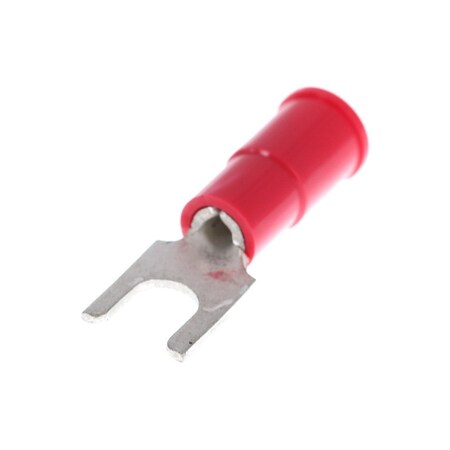

MOLEX 19130-0009 BLOCK SPADE INSULKRIMP (A-238-06X) (1 piece)

MOLEX 19130-0009 BLOCK SPADE INSULKRIMP (A-238-06X) (1 piece)zoom

Attributes

Key Value
Alternate Mfr Part Numb.A-238-06X
Alternate Part No.538-19130-0009
BrandMolex
CategoryConnectors, Interconnec.
ColorElectro-Tin, Red
ColourRed
Contact FinishCopper
Contact MaterialCopper, 0.145" (3.68mm)
Contact PlatingTin
FeaturesRed
InsulationInsulation, Insulated, -
Insulation DiameterPoly-Vinyl Chloride (PV.
Insulation MaterialPVC
Length21.21 mm
Length - OverallFree Hanging (In-Line)
Length - Ring Center to.0.455" (11.56mm)
Length - Termination0.146" (3.71mm)
ManufacturerMolex
Manufacturer Part No.19130-0009
MaterialCopper
Material - Insulation0.207" (5.26mm)
Maximum Bundle Diameter1.5 mm
Maximum Wire Size AWG18AWG
Maximum Wire Size mm&#1.1.5mm?
MfrMolex
Minimum Wire Size AWG22AWG
Minimum Wire Size mm&#1.0.25mm?
Mounting AngleStraight
Mounting MethodWire
Mounting TypeCrimp
Overall Length21.21mm
PackageActive
Part # Aliases0191300009
Part StatusStandard
ProductFork Terminals
Product CategoryTerminals
SeriesBulk, Fork Tongue Termi.
Shrouded/UnshroudedUnshrouded
StockStock
Stud SizeM3.5 (#6), #6
Stud/Tab Size6 (M3.5), 0.245" (6.22m.
Terminal Type6 Stud
Termination18-22 AWG
Termination StyleCrimp
Thickness0.71mm
TradenameInsulKrimp
TypeFork Tongue
UPC Code800753101005
Width6.22mm
Width - Outer Edges0.835" (21.20mm)
Wire GaugeInsulated, 22-18
Wire Size18-22 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com19130-00090.07313MOLEX / WALDOM0.073 @ 1
thumbzoomswatee.com19130-00090.12617627Molex0.126 @ 1
thumbzoomRS Delivers822-12740.126100952Molex0.126 @ 100
thumbzoomDigi-KeyWM13766-ND0.171952Molex0.17 @ 1
HotendaH16943430.21952Molex0.2 @ 1
jensentools.com101552480.21500Molex0.2 @ 1
thumbzoomZoroG0057979710.291000952Molex0.29 @ 1000
us.rs-online.com701110400.475257550Molex Woodhead/Brad0.4752 @ 5
thumbzoomNewark02J77850.5113664MOLEX0.51 @ 1
