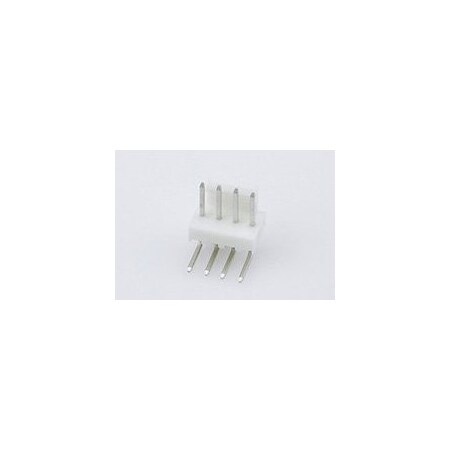

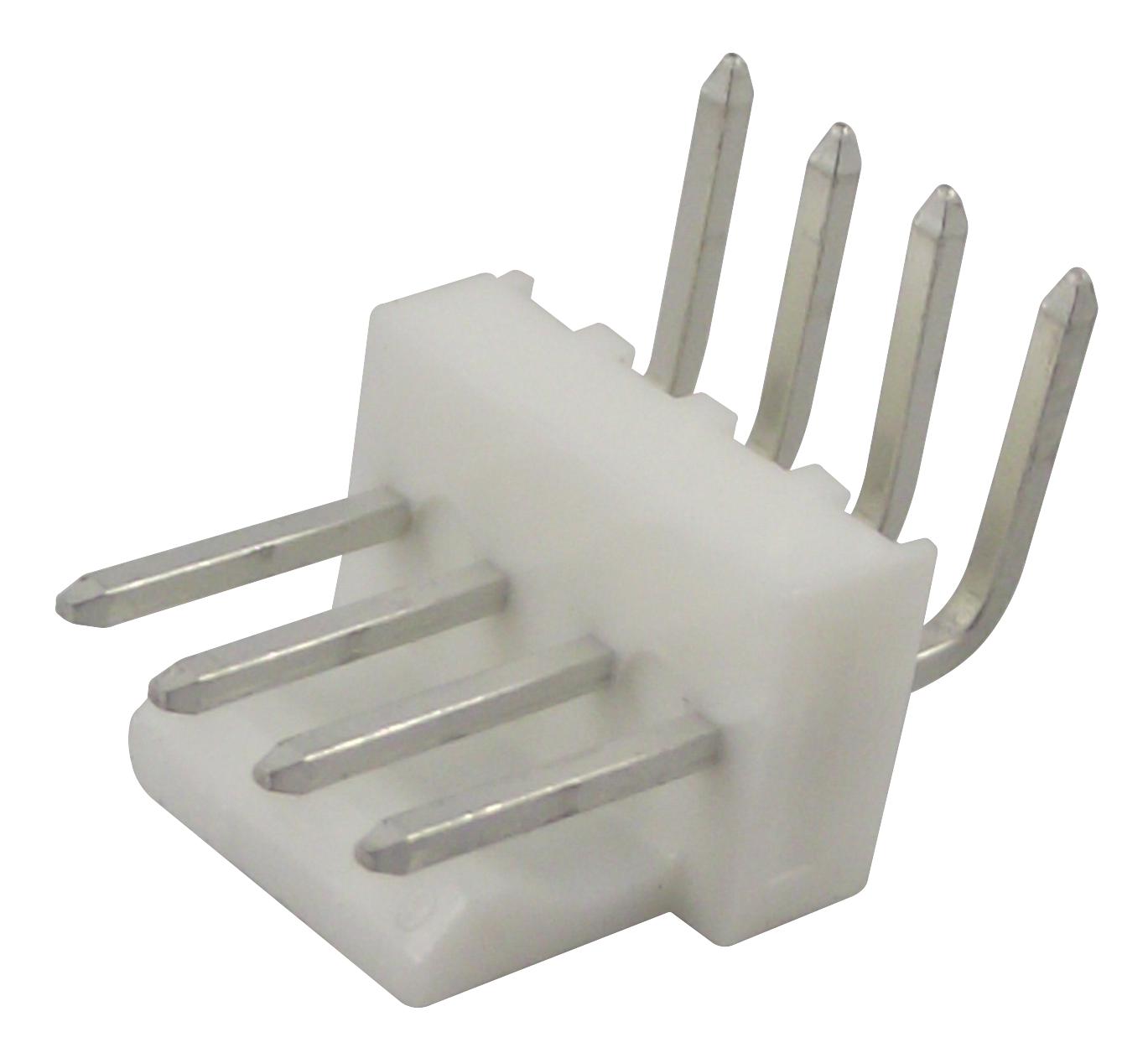

Molex 22-05-3041 (2 pcs) KK 100 HDR FRLK RTAN 04 CKT TIN
- Brand: Molex
- PartNumber: 22-05-3041
- Model: 22053041
- PackageQuantity: 1
- Manufacturer: Molex
- Label: Molex
Attributes
| Key | Value |
|---|
| Agency Approvals | CSA ; UL |
| Alternate Mfr Part Numb. | A-7478-04A222 |
| Angle | Straight |
| Applications | Automotive, General Pur. |
| Base Product Number | 002205 |
| Category | Connectors, Interconnec. |
| Color | White, Natural |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Finish Thicknes. | 100.0?in (2.54?m) |
| Contact Finish Thicknes. | 100.0?in (2.54?m) |
| Contact Length - Mating | 0.264" (6.70mm) |
| Contact Length - Post | 0.141" (3.58mm) |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 4 A |
| Current Rating (Amps) | - |
| Family Name | KK 254 |
| Fastening Type | Friction Lock |
| Features | - |
| Housing Material | Nylon |
| Ingress Protection | - |
| Insulation Color | White |
| Insulation Height | 0.256" (6.50mm) |
| Insulation Material | Polyamide (PA), Nylon |
| Mated Stacking Heights | - |
| Material Flammability R. | UL94 V-0 |
| Mfr | Molex |
| Mounting Hole Size | 0.04 in |
| Mounting Type | Through Hole, Right Ang. |
| Number of Circuits | 4 |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Positions Loa. | All |
| Number of Rows | 1 |
| Operating Temperature | 0 to +75 ?C, - |
| Orientation | Right Angle |
| Overall Contact Length | - |
| Overall Length | 0.56 " |
| Package | Bulk |
| Package Quantity | 1 |
| Pin Length | 0.141 " |
| Pin Spacing | 0.1 in |
| Pitch | 2.54 mm (0.100") |
| Pitch - Mating | 0.100" (2.54mm) |
| Plating Material | Tin |
| Primary Type | Board Mount |
| Product Header | KK? Solid Header |
| Product Status | Active |
| Row Spacing - Mating | - |
| Series | 7478 Series, KK254, 7478 |
| Shrouding | Shrouded - 1 Wall |
| Special Features | Low-Halogen |
| Style | Board to Board or Cable |
| Termination | Solder, Through Hole |
| Type | Right Angle Header |
| Voltage Rating | 250 V, - |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Freelance Electronics | 22-05-3041 | 0.08181 | 1 | 2 | | MOLEX | | 0.08181 @ 2 |
| Power and Signal Group | 0022053041 | 0.1302 | 1500 | 2 | | Molex | | 0.1302 @ 1500 |
| Waldom | MOLEX 22-05-3041 | 0.134 | 400 | 44000 | | MOLEX | | 0.134 @ 400 |
 | jensentools.com | 10158717 | 0.15 | 1 | 41250 | | Molex | | 0.15 @ 2 |
 | NEP Electronics | 22-05-3041 | 0.1588 | 500 | 43315 | | Molex | | 0.1588 @ 500 |
| Avnet | 0022053041 | 0.236 | 1 | 10872 | | Molex | | 0.236 @ 2 |
| Onlinecomponents.com | 22-05-3041 | 0.248 | 1 | 5450 | | MOLEX / WALDOM | | 0.248 @ 2 |
 | TME | MX-22-05-3041 | 0.324 | 4 | 18903 | | MOLEX | | 0.324 @ 4 |
 | Newark | 34R5595 | 0.345 | 1 | 2 | | MOLEX | | 0.345 @ 2 |
 | Component Electronics | 701A-4X | 0.62 | 1 | 70 | | Molex | | 0.62 @ 2 |
| Digi-Key | 26693 | 0.65 | 1 | 80568 | | Molex | | 0.65 @ 2 |
| RS Delivers | 679-5458P | 0.702 | 1 | 8080 | | Molex | | 0.702 @ 2 |
 | Radwell | 22-05-3041 | 0.8 | 10 | 31 | | MOLEX | | 0.8 @ 10 |
| us.rs-online.com | 70190688 | 0.92 | 1 | 5250 | | Molex Incorporated | | 0.92 @ 2 |
| AmazonTP | B00DECYZQQ | 5.99 | 1 | 2 | 2 | MOLEX | | 5.99 @ 2 |
 | Zoro | G2753630 | 103.5 | 450 | 2 | | Molex | | 103.5 @ 450 |
