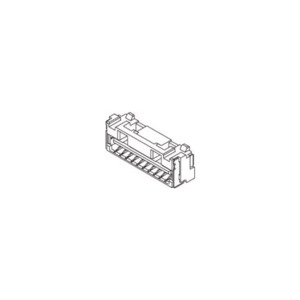

Molex / Waldom 502386-1170 Connector Headers and PCB Receptacles

Molex / Waldom 502386-1170 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
ApplicationsAutomotive, General Pur.
Base Product Number502386
CategoryConnectors, Interconnec.
Circuits (maximum)11
Color - ResinNatural
Connector TypeReceptacle
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.39.4?in (1.00?m)
Contact Finish Thicknes.39.4?in (1.00?m)
Contact Length - Post-
Contact MaterialCopper Alloy
Contact Shape-
Contact TypeForked
Current - Maximum per C.1.0A
Current Rating (Amps)1A
DescriptionCONN RCPT 11P 0.049 TIN.
Detailed Description11 Position Receptacle .
Digi-Key Part NumberWM4954TR-ND - Tape & Re.
Durability (mating cycl.30
Fastening TypeLatch Holder
FeaturesSolder Retention
Guide to Mating PartYes
Ingress Protection-
Insulation ColorNatural
Insulation Height0.215" (5.45mm)
Insulation MaterialResin
Keying to Mating PartYes
Lock to Mating PartYes
ManufacturerMolex
Manufacturer Product Nu.5023861170
Manufacturer Standard L.9 Weeks
Mated Height5.55mm
Mated Stacking Heights-
Material - MetalCopper Alloy
Material - Plating Mati.Tin
Material - Plating Term.Tin
Material - ResinHigh Temperature Thermo.
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeSurface Mount, Right An.
Number of Positions11
Number of Positions Loa.All
Number of Rows1
Operating Temperature-40?C ~ 105?C
OrientationRight Angle
PackageTape & Reel (TR)
PCB RetentionYes
Pitch - Mating0.049" (1.25mm)
Pitch - Mating Interface1.25mm
Pitch - Termination Int.1.25mm
Plating min - Mating1.016?m
Plating min - Terminati.1.016?m
Polarized to Mating PartYes
Product StatusActive
Row Spacing - Mating-
SeriesCLIK-Mate 502386
StyleBoard to Cable/Wire
Surface Mount Compatibl.Yes
Temperature Range - Ope.-40? to +105?C
TerminationSolder
Termination Interface: .Surface Mount
Voltage - Maximum50V AC (RMS)/DC
Voltage Rating50V
