Omron ZE-QCL-2S

B011ONBXH0

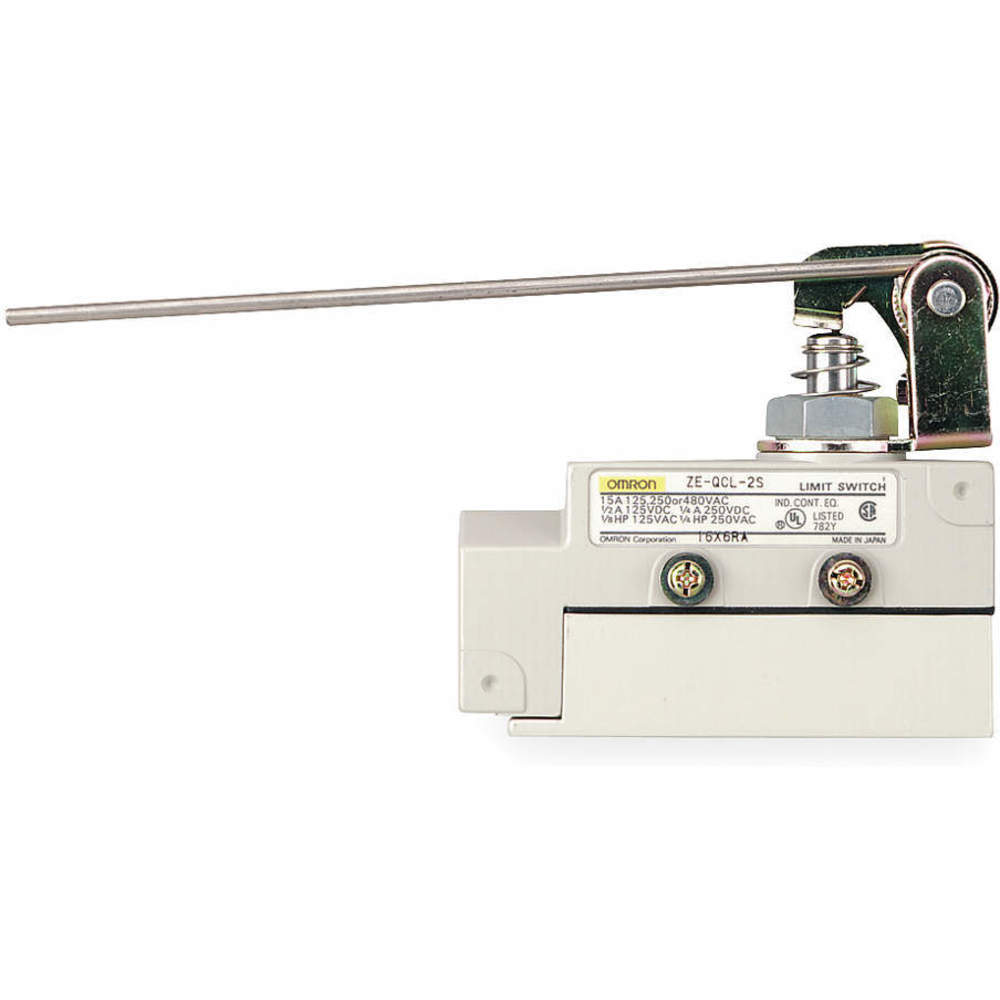

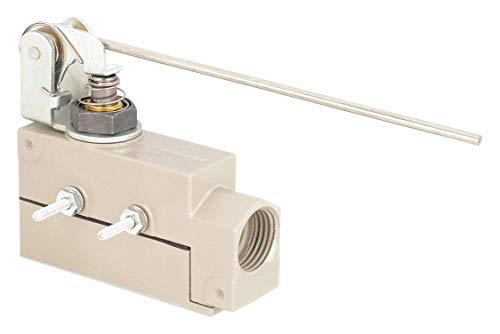

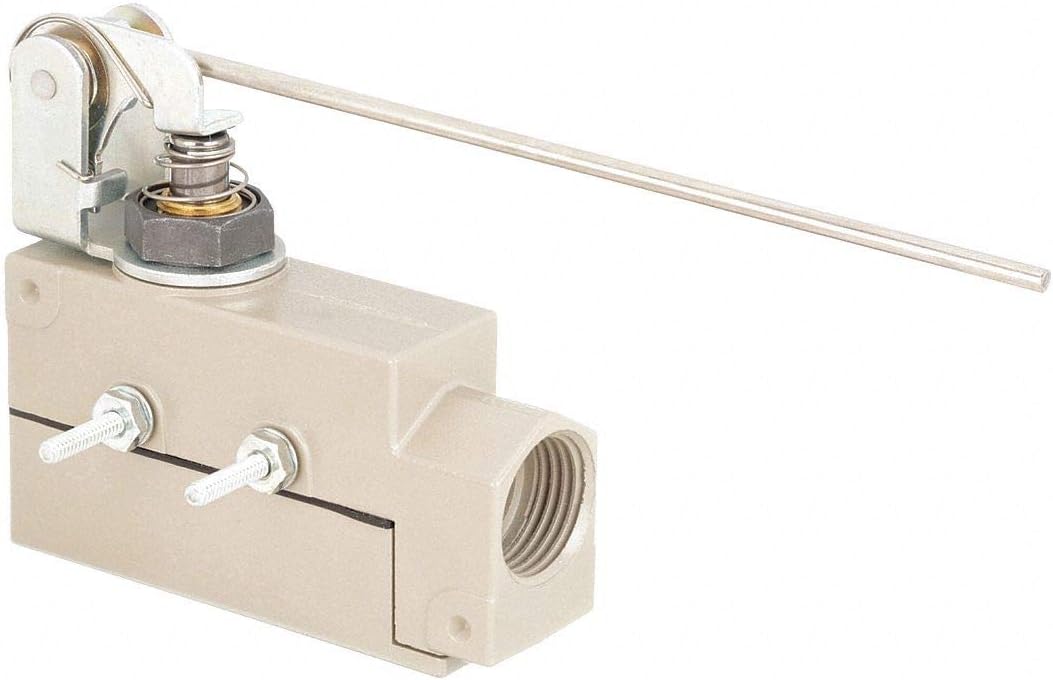

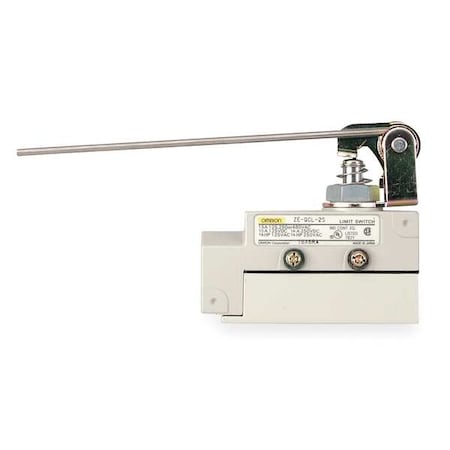

OMRON INDUSTRIAL AUTOMATION ZE-QCL-2S SWITCH

OMRON INDUSTRIAL AUTOMATION ZE-QCL-2S SWITCHzoom

Attributes

Key Value
AC Contact Rating - Lim.15A @ 480V, 15 A @ 480V
Actuator Length5.90"
Actuator Length - Limit.5.9 in, 5.90 in
Actuator LocationTop
Actuator Location - Lim.Top
Actuator Style - Limit .Plunger, Lever, Lever, .
Actuator TypeAdjustable Rod
Alternate Mfr Part Numb.ZEQCL2S
ASINB011ONBXH0
Basic Actuator Style - .Plunger
Batteries Required?No
Body Depth - Limit Swit.1.01 in
Body Height - Limit Swi.1.75 in
Body MaterialAluminum
Body Style - Limit Swit.Miniature
Body Width - Limit Swit.3.39 in
Boot Sealed Actuator - .No
BrandOmron
CircuitSPDT
Contact FormSPDT
Contact Form- SwitchesSPDT
Current Rating15 A
Current Rating (Amps)15A (AC), 500mA (DC)
Current Stock22
DC Contact Rating15A @ 250V
DC Contact Rating - Lim.15A @ 250V, 15 A @ 250V
Depth2.90"
Differential Travel0.060" (1.5mm)
Electrical ConnectionScrew Terminals
Electrical Life500,000 Cycles
Features-
Head TypeSide Plunger Head
Height3.40"
Ingress ProtectionIP60 - Dust Tight
International ShippingNo
IP Rating60, IP60
ItemLimit Switch
Item Package Quantity1
Lead TimeExpected to ship in 1-2.
Limit Switch StyleGeneral Purpose Limit S.
Mechanical Life10,000,000 Cycles
MfrOmron Automation and Sa.
Mounting - Limit SwitchSurface
Mounting Hole - Limit S.(2) 0.16 in dia
Mounting Hole Pattern -.2 Hole Horizontal
Mounting Hole Spacing -.1.00 in
Mounting TypeChassis Mount
MovementTop
MpnZE-QCL-2S
NEMA Rating1, IP60
Operating Force5.4 oz, 153gf
Operating Position-
Operating Temp. Range14 Degrees to 158 Degr.
Operating Temperature-10?C ~ 80?C
Overtravel0.866" (22.0mm)
Part NumberZE-QCL-2S
Part StatusActive
Pretravel0.591" (15.0mm)
Release Force45gf
SeriesZE, ZE Series
SKUZO-G2946492
StandardsUL, CSA, CSA, UL
Stem Thread - Limit Swi.No Stem
SubCategoryElectrical
Switch FunctionOn-Mom
TerminationScrew
Termination StyleScrew Terminal
Travel1.46 in
Voltage Rating125 ; 250 ; 480 ; 125 ;.
Voltage Rating - AC125 V
Voltage Rating - DC125 V
Width1.00"
Wiring EntryG1/2

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB000LE3XNQ58.341In Stock2OMRON58.34 @ 1
thumbzoomsustainablesupply.comC119562161.371In StockOmron0.561.37 @ 1
grainger.caWWG3XG6065.707217181In StockOMRON0.565.70721718 @ 1
thumbzoomZoroG294649267.451104Omron0.567.45 @ 1
thumbzoomsimsupply.comZO-G294649279.93122Omron79.93 @ 1
Airline HydraulicsOMRON ZE-QCL-2S80.01In StockOmron80.0 @ 1
thumbzoomRaptor SuppliesAD3AJB89.7008581In StockOMRON89.700858 @ 1
thumbzoomAmazonB011ONBXH097.71In StockOmron97.7 @ 1
us.rs-online.com70178191103.2612Omron Automation103.26 @ 1
thumbzoomMRO Supply6164454103.961In StockOmron103.96 @ 1
Master ElectronicsZEQCL2S106.2614Omron Automation106.26 @ 1
Newark94C4509107.12141OMRON INDUSTRIAL AUTOMATION107.12 @ 1
