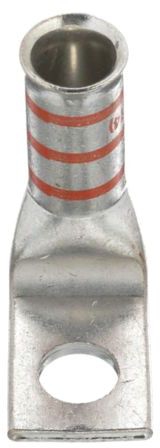

Panduit LCAF2/0-12F-X Copper Compression Lug, 1 Hole

Panduit LCAF2/0-12F-X Copper Compression Lug, 1 Holezoom

Attributes

Key Value
Allowable Gauge Range2/0
ApprovalsCSA, UL
Base Product NumberLCAF
Cable Size2/0 AWG
CategoryConnectors, Interconnec.
ColorOrange
Color CodeOrange
Connection MaterialTin
Connection Type1 x Terminal
Connector TypeFlared Barrel
Contact FinishElectro-Tin
Contact MaterialCopper
Country of Origin (subj.Mexico
DescriptionCONN TERM RECT TONG 2/0.
Detailed DescriptionTerminal Connector Rect.
Diameter - Barrel ID0.510" (12.95mm)
Diameter - Barrel OD0.730" (18.54mm)
Diameter - Ring ID0.530" (13.46mm)
Digi-Key Part Number298-11661-ND
Family SeriesPanduit Terminals, Pan-.
Features-
Gross Weight0.115 lbs
InsulationNon-Insulated
ItemLug Compression Connect.
Item NumberLCAF2/0-12F-X
Length2.02"
Length - Overall-
ManufacturerPanduit Corp, Panduit
Manufacturer Part NumberLCAF2/0-12F-X
Manufacturer Product Nu.LCAF2/0-12F-X
Manufacturer Standard L.2 Weeks
MaterialCopper, Tin-Plated Copp.
Material/CompositionCopper
Max Conductor Range2/0 AWG
MfrPanduit Corp
Min Conductor Range2/0 AWG
Mounting1-Hole
Mounting TypeFree Hanging (In-Line),.
Net Weight0.115 lbs
Number of Conductors1
Number of Holes1
PackageBulk
Product SeriesPan-Lug Compression
Product StatusActive
RoHS CompliantYes
SeriesPan-Lug LCAF Series, Pa.
Stud Size1/2 in
Stud/Tab Size1/2 Stud
Tab Thickness0.130" (3.30mm)
Terminal StyleSingle Stud Hole
Terminal TypeRectangular Tongue
TerminationCrimp, Barrel
Type1 Hole
UPC Code074983877089
Width0.96"
Width - Outer Edges0.960" (24.38mm)
Wire Gauge2/0 AWG
Wire Size2/0 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcbtcompany.comLCAF2/0-12F-X7.531In StockPANDUIT7.53 @ 1
RadwellLCAF2012FX12.76100In StockPANDUIT12.76 @ 100
thumbzoomDigi-Key456450913.56120Panduit Corp13.56 @ 1
Onlinecomponents.comLCAF2/0-12F-X13.781In StockPanduit13.78 @ 1
thumbzoomZoroG077233115.21In Stock16Panduit1.2715.2 @ 1
thumbzoomGalcoLCAF2/0-12F-X-PNDT16.7320In StockPanduit0.11516.73 @ 20
thumbzoomPlatt.com068334817.81In StockPanduit17.8 @ 1
Airline HydraulicsPANDUIT LCAF2/0-12F-X20.161In StockPanduit Corp20.16 @ 1
us.rs-online.com7075043621.1810In StockPanduit21.18 @ 10
Newark66H0544142.991In StockPANDUIT142.99 @ 1
thumbzoomCarlton Bates Company07498387708150.81In StockPANDUIT150.8 @ 1
thumbzoomgordonelectricsupply.comLCAF2/0-12F-X352.01In Stock12PANDUIT352.0 @ 1
