Ruland SP-18-SS

B0063KZK9M

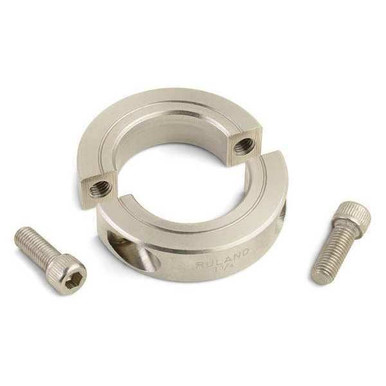

Ruland SP-18-SS Two-Piece Clamping Shaft Collar, Stainless Steel, 1.125" Bore, 1 7/8" OD, 1/2" Width

Ruland SP-18-SS Two-Piece Clamping Shaft Collar, Stainless Steel, 1.125" Bore, 1 7/8" OD, 1/2" Widthzoom

Attributes

Key Value
Bore (B)1.1250 in
Bore Dia.1 1/8 in
Bore Tolerance+0.0020 in / +0.0005 in
Bore Type - CollarsPlain Bore
BrandRULAND
Clearance Dia.2.125 in
Clearance Diameter (C) .2.140 in
Collar StyleClamp
Country of OriginUSA
Country of Origin (subj.United States
Current Stock47
Dimension TypeInch
Finish SpecificationBright, No Plating
Forged Clamp Screw1/4-28
Hex Wrench Size3/16 in
International ShippingNo
ItemShaft Collar
Item - Shaft CollarsShaft Collar
Lead TimeExpected to ship in 1-2.
ManufacturerRuland Manufacturing
Material303 Stainless Steel
Material - Collars303 Stainless Steel
Material SpecificationType 303 Austenitic, No.
MpnSP-18-SS
Note 1Performance ratings are.
Number of Pieces2
Number of Screws2 ea
Operating Temp. Range-40 Degrees to 350 Degr.
Outer Diameter (OD)1 7/8 in
Outside Dia.1 7/8 in
Prop 65This product contains a.
Recommended Gap0.063 in
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBright
Screw Location (R)0.740 in
Screw Material18-8 300 Series Stainle.
Screw Size1/4"-28
Seating Torque110 lb-in
Shaft Locking Type - Co.2 Piece Clamp
SKUZO-G2603797
StandardsREACH Compliant, RoHS2 .
SubCategoryPower Transmission
System of MeasurementInch
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
UNSPC31162811
UPC634529020647
UPC Code63452902064
Weight (lbs)0.232500
Width1/2 in
Width (W)0.500 in
Width Tolerance+0.003 in / -0.010 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB0063KZK9M24.111In StockRuland24.11 @ 1
thumbzoomsustainablesupply.comC167191327.671In StockRuland Manufacturing0.227.67 @ 1
thumbzoomZoroG260379730.191In StockRuland0.230.19 @ 1
us.rs-online.com7217761331.61In StockRuland Manufacturing31.6 @ 1
thumbzoomRulandSP-18-SS34.341In StockRuland0.232534.34 @ 1
thumbzoomsimsupply.comZO-G260379743.83147RULAND43.83 @ 1
motionindustries.com0024316944.91In StockRuland Manufacturing Co Inc44.9 @ 1
thumbzoomRaptor SuppliesAB9ADQ76.650211In StockRULAND MANUFACTURING76.65021 @ 1
