Samtec IPS1-115-01-S-D-VS

B011NKF096

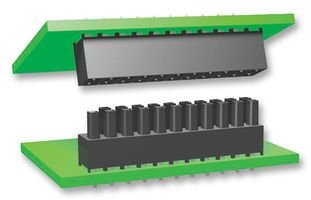

Samtec Socket, 2.54Mm, SMT, 2X15 Position - IPS1-115-01-S-D-VS

Samtec Socket, 2.54Mm, SMT, 2X15 Position - IPS1-115-01-S-D-VSzoom

Attributes

Key Value
Applications-
Base Product NumberIPS1-115
CategoryConnectors, Interconnec.
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.-
Contact Length - Post-
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeFemale Socket
Current Rating (Amps)-
Fastening TypePush-Pull
Features-
Ingress Protection-
Insulation ColorBlack
Insulation Height0.335" (8.51mm)
Insulation MaterialLiquid Crystal Polymer .
Mated Stacking Heights-
Material Flammability R.-
MfrSamtec Inc.
Mounting TypeSurface Mount
Number of Positions30
Number of Positions Loa.All
Number of Rows2
Operating Temperature-55?C ~ 125?C
PackageTube
Part StatusActive
Pitch - Mating0.100" (2.54mm)
Row Spacing - Mating0.100" (2.54mm)
SeriesMini Mate? IPS1
StyleBoard to Board
TerminationSolder
Voltage Rating775VAC, 1095VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
SamtecIPS1-115-01-S-D-VS5.421In StockSamtec5.42 @ 1
thumbzoomNewark11P50956.89137SAMTEC6.89 @ 1
Digi-Key11104497.72415In StockSamtec Inc.7.724 @ 15
thumbzoomRadwellIPS1-115-01-S-D-VS9.01In StockSAMTEC9.0 @ 1
