- mpnFN2020-10-06
- brandname: Schaffner
- manufacturername: Schaffner

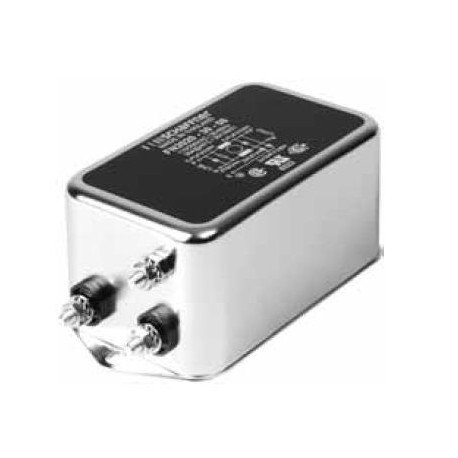

SCHAFFNER FN2020-10-06 EMI Power LINE Filter, 10A, 740UA
- Brand: SCHAFFNER
- PartNumber: FN2020-10-06-BPSFT00891
- Model: BPSFT00891-FN2020-10-06
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: SCHAFFNER
- Label: SCHAFFNER
Attributes
| Key | Value |
|---|
| Alternate Mfr Part Numb. | 800606 |
| Alternate Part No. | 631-FN2020-10/06 |
| Applications | CSA, ENEC, UR |
| Approval Agency | -25?C ~ 100?C |
| Approvals | UR, CSA, ENEC-14 |
| Brand | Schaffner |
| Category | Filters |
| Configuration | - |
| Current Rating | 10 A |
| Cx Capacitance | 0.15 ?F |
| Cy Capacitance | 4.7 nF |
| Dimensions | 29.3 H x 35 W x 64 L mm |
| Filter Type | AC ; DC, Single Stage, . |
| Frequency | 50 Hz, 60 Hz |
| Frequency - Operating | General Purpose |
| Gender | Male |
| Inductance | 0.8 mH, 10 A |
| Leakage Current | 0.74 mA |
| Line to Ground Hipot Ra. | 2000 |
| Line to Line Hipot Rati. | 760 VAC |
| Manufacturer | Schaffner |
| Manufacturer Part No. | FN2020-10-06 |
| Mfr | Schaffner EMC Inc. |
| Mounting Style | Chassis |
| Mounting Type | Panel Mount, Quick Conn. |
| Operating Temperature | Chassis Mount |
| Operating Voltage | 250 V |
| Package | Active |
| Part Status | Single Phase |
| Phase | 1 Phase |
| Primary Type | AC, General Purpose |
| Product Category | Power Line Filters |
| Product Header | 1-Phase General Purpose. |
| Resistance | 1 Megaohms |
| Series | FN 2020, Tray, FN 2020 . |
| Termination Style | 800?H, Faston |
| Type | EMI |
| Version | Standard |
| Voltage - Rated AC | DC ~ 400Hz |
| Voltage - Rated DC | 250V |
| Voltage Rating | 250 VAC, 250 V |
| Wire Size | 20 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Digi-Key | 817-1264-ND | 16.62 | 1 | In Stock | | Schaffner EMC Inc. | | 16.62 @ 1 |
| us.rs-online.com | 70027277 | 19.37 | 1 | 526 | | Schaffner | | 19.37 @ 1 |
 | Newark | 01M7865 | 19.57 | 1 | 184 | | SCHAFFNER | | 19.57 @ 1 |
 | Radwell | FN2020-10-06 | 24.0 | 1 | 2 | | SCHAFFNER | | 24.0 @ 1 |
 | swatee.com | FN2020-10-06 | 24.23 | 1 | 45 | | Schaffner | | 24.23 @ 1 |
| RS Delivers | 219-2858 | 28.692 | 1 | 430 | | Schaffner | | 28.692 @ 1 |
