CAI - SCHNEIDER ELECTRIC ZB4BA36

B07J9MKVH7

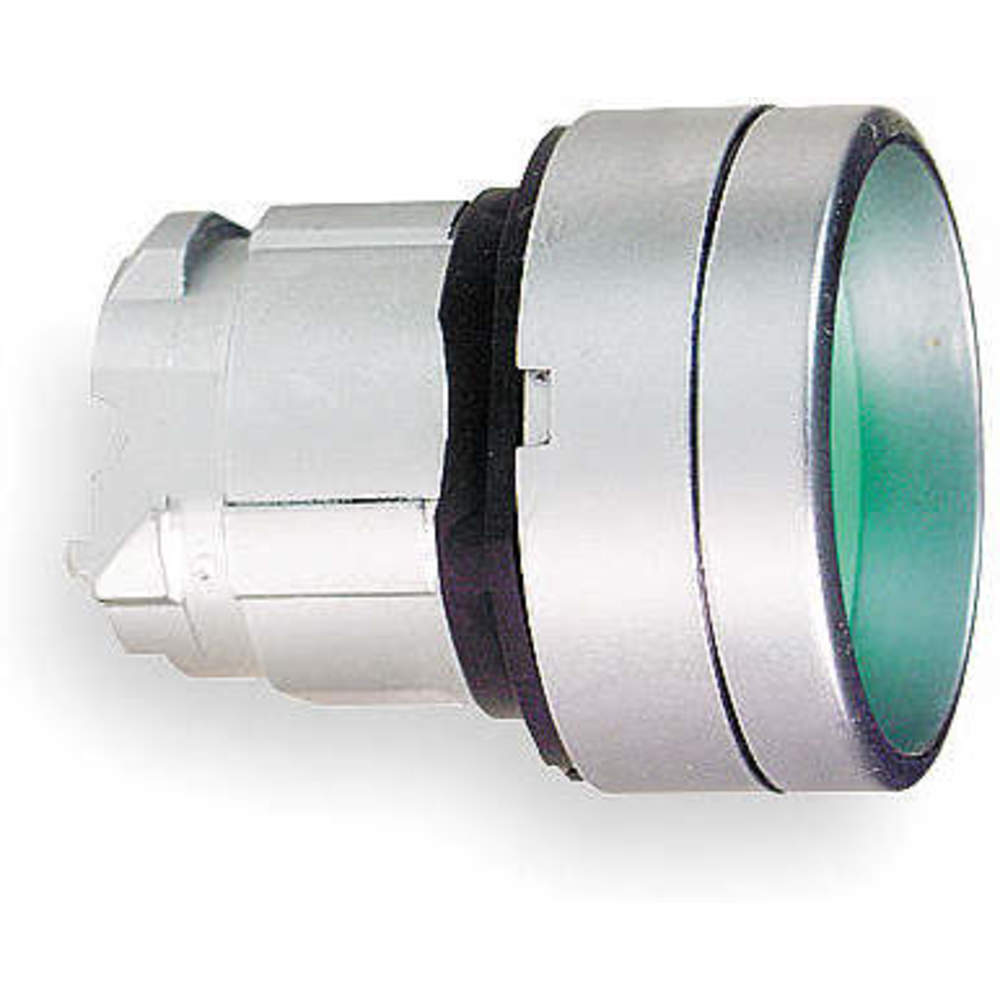

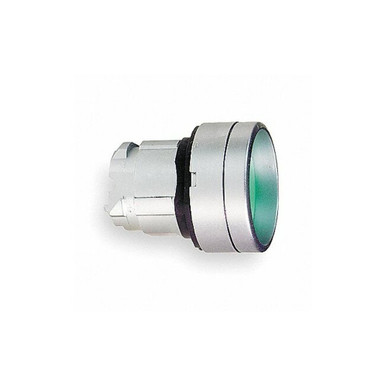

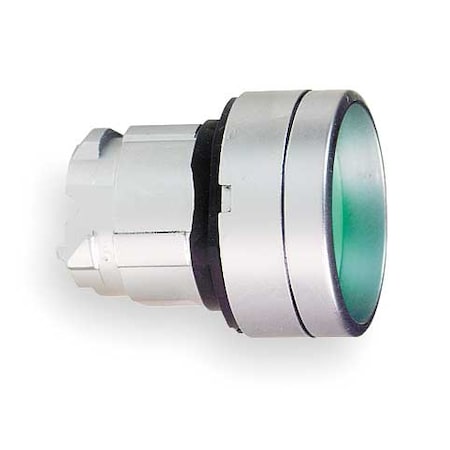

Schneider Electric Metal Push Button Operator, Type of Operator: Extended Button, Size: 22mm, Action: Momentary Push

Schneider Electric Metal Push Button Operator, Type of Operator: Extended Button, Size: 22mm, Action: Momentary Pushzoom

Attributes

Key Value
(Select First, Then App.Schneider, Harmony XB4
Accessory GroupB
ActionMomentary Push, Momenta.
ActuationSpring Return
Actuatorspring return;Green rec.
Actuator colourgreen
Actuator TypePushbutton, Round, Mush.
Ambient Air Temperature.-40-70?C
ApplicationGREEN UNMARKED
Basic MaterialMetal
Bezel MaterialChrome Die Cast Aluminum
BrandSCHNEIDER ELECTRIC
Button markingblank
Button shapeconcave
Cad Overall Depth31 mm
Cad Overall Height29 mm
Cad Overall Width29 mm
Catalog NumberZB4BA36
CategorySwitches
Colorgreen
Color Familygreen
Colourgreen
Country of OriginFR - France, France
Current Stock42
DescriptionHARMONY XB4, PUSH BUTTO.
Detailed DescriptionConfigurable Switch Bod.
Device Presentationbasic element
Digi-Key Part Number4008-ZB4BA36-ND
ECCNEAR99
EnclosureNEMA 1/2/3/4/4X/13
Environmental ConditionsIP 65
Family NameHarmony XB4 Family
GTIN03389110887938
Head MaterialAluminum-Zinc Alloy
Illuminationnone, Non-Illuminated
Indicatorgreen
International ShippingNo
IP ratingIP66
IP Rating66, IP66
ItemPush Button Operator
Item TypeHead for non-illuminate.
LegendNo Legend
Made in USANo
ManufacturerSCHNEIDER ELECTRIC
Manufacturer Product Nu.ZB4BA36
Manufacturer seriesHarmony XB4
Manufacturer Standard L.6 Weeks
MaterialChromium plated metal
Mechanical Durability10000000 cycles
MfrSCHNEIDER ELECTRIC
Mounting Diameter22 mm
Mounting hole diameter?22mm
Mounting Hole Size22
MpnZB4BA36
NEMA Rating1, 13, 2, 3, 4, 4X
Number of Operators1
Number of positions2
Operating temperature-25...70?C
Operating Temperature-40-70 A Degrees C
Overvoltage Categoryclass I IEC 60536
PackageBox
Panel Cutout Dimensions22mm (Round)
Primary TypePushbutton
Product StatusActive
Product TypePush Button Operator
Protective TreatmentTH
Related itemsZB4BZ009,
RequiresContact Block(s)
SeriesHarmony XB4, ZB4 Series
Size22 mm, 0.87
SKUZO-G0291724
Special FeaturesNon-Illuminated
Stable positions number1
StandardUL LISTED FILE NUMBER E.
StandardsCE, CSA, RoHS, UL
Sub BrandZB4
SubCategoryElectrical
Switch standard22mm
Switches featureswitout symbol
TerminationScrew
TypeMomentary
Type of OperatorRecessed Button
Type of switchpush-button
UNSPSC39122216
UPC785901354260
UPC Code785901354260
Warranty DescriptionContractual Warranty:18.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEZB4BA3619.2912SCHNEIDER ELECTRIC19.29 @ 1
RS Delivers746-904322.1415Schneider Electric22.14 @ 1
thumbzoommostelectric.comZB4BA3623.24114SQUARE D/TELEMECANIQUE23.24 @ 1
thumbzoomZoroG029172425.95163Schneider Electric0.0125.95 @ 1
thumbzoomgordonelectricsupply.comZB4BA3630.591In Stock10SQUARE D30.59 @ 1
us.rs-online.com7033720136.2111Schneider Electric36.21 @ 1
thumbzoomsimsupply.comZO-G029172436.68142Schneider Electric36.68 @ 1
grainger.caTLQZB4BA3636.711267481In StockSCHNEIDER ELECTRIC0.0136.71126748 @ 1
Graybar9949595639.21In StockSquare D (Schneider Electric)39.2 @ 1
thumbzoomDigi-Key1661283839.371In StockSchneider Electric39.37 @ 1
thumbzoomcrescentelectric.com2145740.81In StockSchneider Electric40.8 @ 1
Newark12C227741.011In StockSCHNEIDER ELECTRIC41.01 @ 1
thumbzoomsustainablesupply.comC121178143.181In StockSchneider Electric0.0143.18 @ 1
thumbzoomNational Supply Network4460671349.581In StockSchneider Electric49.58 @ 1
thumbzoomRaptor SuppliesAG7EWG58.11337351In StockSCHNEIDER ELECTRIC58.1133735 @ 1
