Schneider Electric NQ30L2

B0078RAHLA

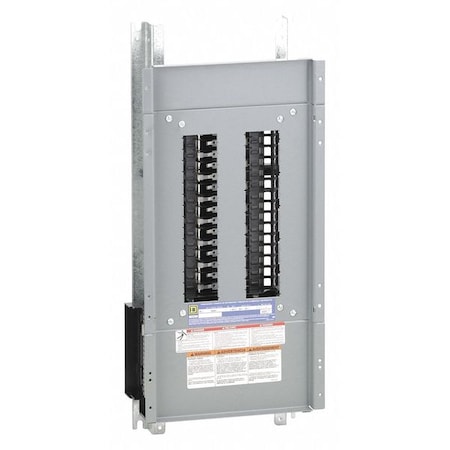

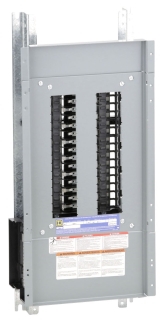

SCHNEIDER ELECTRIC Panel Board Int Nq 225A Mlo 30 1-Pole Aluminum NQ30L2 Molded Case Circuit Breaker 600V 100A

SCHNEIDER ELECTRIC Panel Board Int Nq 225A Mlo 30 1-Pole Aluminum NQ30L2 Molded Case Circuit Breaker 600V 100Azoom

Attributes

Key Value
Amperage Rating225, 225 A, 225
Amps225 A
ApplicationNQ PANELBOARDS
BrandSquare D by Schneider E.
Breaker TypeHD/HG/HJ/HL/JD/JG/JJ/JL
Bus MaterialTin Plated Aluminum, Al.
Catalog NumberNQ30L2
Circuit Breaker SeriesQHB, QOB, QOB-VH
Circuit Breaker TypePlug In Miniature
Country of Origin00 - Unknown, Mexico
Depth5 3/4 in
Dimensions20 in W x 5-3/4 in D x .
ECCNEAR99
Enclosure TypeNEMA 1/3R/5/12
For Use WithNQ Circuit Breakers
Height27 in., 27 in
Housing materialAluminum
ItemPanelboard Interior
Item TypeInteriors;3-wire
Made in USANo
Main Circuit Breaker Ad.4HHA3, 4HHA4, Mfr. No. .
Main Circuit Breaker or.Convertible, Main Lug
Main TypeMain Lugs
ManufacturerSchneider Electric
MaterialAluminium, Aluminum
MountingPanel Mount
Mounting typePanel
No. of Spaces30
Number of Spaces30
Panelboard TypePanelboard Interior
Phase1
Rated Current225A
Rated Voltage240 V ac/48 V dc
Recommended Enclosure1D691 for Main Lug, 1D6.
Recommended Flush Cover4HGZ9 for Main Lug, 4HH.
Recommended Ground Bar .5B716
Recommended Surface Cov.3TX80 for Main Lug, 3TX.
SeriesNQ Series
Short Circuit Current R.100000 RMS Symmetrical
Short Circuit Current R.100000, 100000 A
Size32
StandardUL 67
StandardsCSA Approved, UL Listed
Sub BrandNQ
Torque4.52-5.65 N.m 13.30-67..
Type1-Phase
UNSPSC39121112
UPC785901502005
Voltage120/240V AC
Voltage Rating240 VAC, 48 VDC, 240 VA.
Warranty DescriptionContractual Warranty:18.
Width10 7/16 in, 10.44 in.
Wiring Configuration3-Wire

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomstandardelectricsupply.com2286522375.351In StockSquare D375.35 @ 1
thumbzoomZoroG0411266417.591In StockSquare D15.25417.59 @ 1
thumbzoomsustainablesupply.comC1199972532.191In StockSquare D15.25532.19 @ 1
thumbzoomgordonelectricsupply.comNQ30L21075.01In Stock10SQUARE D1075.0 @ 1
thumbzoomRadwellNQ30L21150.012SCHNEIDER ELECTRIC SQUARE D1150.0 @ 1
Newark09P62241194.871In StockSQUARE D BY SCHNEIDER ELECTRIC1194.87 @ 1
thumbzoomcrescentelectric.com395701315.0911Square D by Schneider Electric1315.09 @ 1
Graybar251807441709.881611Square D (Schneider Electric)1709.8816 @ 1
