STMicroelectronics TL061CD

B08159FX64

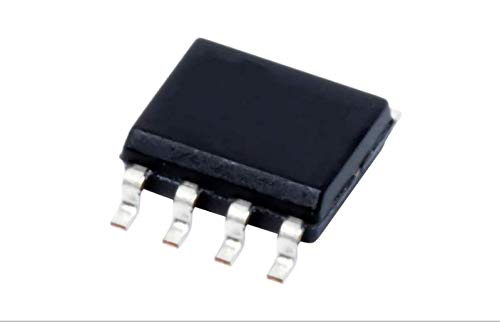

STMicroelectronics ST MICROELECTRONICS TL061CD 8-Pin SOP Operational Amplifier IC Qty-100

STMicroelectronics ST MICROELECTRONICS TL061CD 8-Pin SOP Operational Amplifier IC Qty-100zoom

Attributes

Key Value
Alternate Part No.511-TL061CD
Amplifier TypeJ-FET, Low Power Amplif.
Base Product NumberTL061
BrandSTMicroelectronics
CategoryIntegrated Circuits (IC.
CMRR - Common Mode Reje.70 dB
Current - Input Bias30 pA
Current - Output / Chan.20 mA
Current - Supply200?A
Dual Supply Voltage+/- 5 V, +/- 9 V, +/- 1.
en - Input Voltage Nois.42 nV
Gain Bandwidth Product1 MHz
GBP - Gain Bandwidth Pr.1 MHz
Ib - Input Bias Current400 pA
ManufacturerSTMicroelectronics
Manufacturer Part No.TL061CD
Maximum Dual Supply Vol.+/- 18 V
Maximum Operating Tempe.+ 70 C
MfrSTMicroelectronics
Minimum Dual Supply Vol.+/- 3 V
Minimum Operating Tempe.0 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Channels1 Channel
Number of Circuits1
Operating Supply Voltage6 V to 36 V, +/- 3 V to.
Operating Temperature0?C ~ 70?C
Output Type-
PackageTube
Package / Case8-SOIC (0.154", 3.90mm .
Package/CaseSO-8
PackagingTube
Part StatusObsolete
ProductOperational Amplifiers
Product CategoryOperational Amplifiers .
PSRR - Power Supply Rej.70 dB
Series-, TL061
ShutdownNo Shutdown
Slew Rate3.5V/?s
SR - Slew Rate3.5 V/us
Supplier Device Package8-SOIC
Supply Current per Chan.0.25 mA
Supply Voltage - Max36 V
Supply Voltage - Min6 V
TechnologyBiFET
Voltage - Input Offset3 mV
Voltage - Supply Span (.36 V
Voltage - Supply Span (.6 V
Vos - Input Offset Volt.15 mV

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
QuestTL061CD0.2111120STMicroelectronics0.21 @ 100
thumbzoomRadwellTL061CD0.91100ST MICRO0.9 @ 100
thumbzoomswatee.comTL061CD4.3212984STMicroelectronics4.32 @ 100
