TB Woods 6HS

B072B5SPWQ

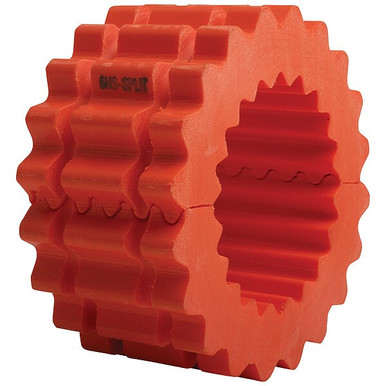

Sleeve Coupling Insert, 6HS, Hytrel

Sleeve Coupling Insert, 6HS, Hytrelzoom

Attributes

Key Value
ApplicationBlowers, Compressors, C.
Body Style6HS
BrandTb Woods
ColorOrange
Component WR2 (lbs ft2)0.0066
Component WR?0.0066
Coupling Size6
Coupling size6
Current Stock197
Dimension (in) (D)3 3/4
Dimension (in) (W)1-7/8
Flange Type - Sleeve Co.HS
Horsepower Rating at 10.2.9
Horsepower rating at 11.33
Horsepower rating at 12.34
Horsepower rating at 17.50
Horsepower rating at 18.51
Horsepower rating at 30.8.6
Horsepower rating at 34.99
Horsepower rating at 36.99
Horsepower rating at 50.11
Horsepower rating at 69.20
Horsepower rating at 87.25
HP Rating @ 100 RPM2.9 hp
HP Rating @ 1200 RPM34.27 hp
HP Rating @ 1800 RPM51.41 hp
HP Rating @ 3600 RPM98.53 hp

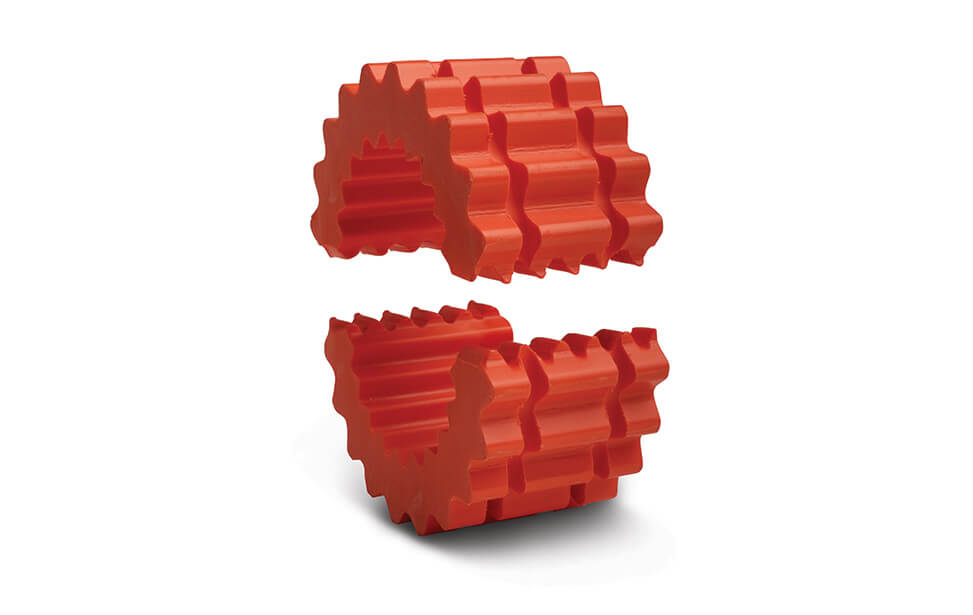

Insert DesignTwo-Piece Split
Insert designTwo-Piece Split
Insert Design - Couplin.Two-Piece Split
Insert MaterialHytrel
International ShippingNo
ItemSure-Flex Plus
Item - Sleeve Coupling .Sleeve Coupling Insert
KW rating at 100 RPM2.1
KW rating at 1450 RPM31
KW rating at 3000 RPM64
KW rating at 970 RPMIn Stock
Lead TimeExpected to ship in 1-2.
MaterialHytrel
Material - InsertsHytrel
Material typeHytrel
Max angular gap misalig.0.016 in
Max angular misalignment1/4?
Max compatible bore size1.875
Max parallel misalignme.1
Max RPM6000
Max speed6000
Max. RPM6,000 RPM
Maximum angular gap mis.0.016
Maximum parallel misali.0.01
Min compatible bore size0.625
Mpn6HS
Operating Temp.-65 Degrees to 250 Deg.
Operating temperature-65?F to +250?F
Outer Diameter3.75 in
Outside Dia.3.75 in
Outside diameter3.75
Package Quantity1
Power rating at 100 RPM2.1 kW
Rated Torque1,800 in-lb
Screw typeSleeve, Two-Piece
SeriesSure-Flex
Size - Sleeve Couplings6
SKUZO-G8512831
Sleeve width1.875
Stiffness1130
Stiffness (in lbs rad)10000
SubCategoryPower Transmission
Temperature rating-65?F to 250?F
Temperature rating (F)+250?F to -65?F
Torque1,800 in-lb
Torque rate203
Torque rating (in lbs)1800
Torsional stiffness10000
TypeSplit, 2 piece; Type HS
UPC698672660310
UPC Code698672660310
Width1.88 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB072B5SPWQ94.16125TB WOOD'S94.16 @ 2
thumbzoomZoroG851283198.091248Tb Woods0.4498.09 @ 2
thumbzoomMRO Supply337185106.212TB Woods106.2 @ 2
thumbzoomsimsupply.comZO-G8512831121.991197Tb Woods121.99 @ 2
us.rs-online.com71721017150.712TB Wood's (Altra)150.7 @ 2
thumbzoomNational Supply Network53911400175.27512TB Wood's175.275 @ 2
thumbzoommidwestapplianceparts.com6HS-TB-P177.3912Tb Woods177.39 @ 2
thumbzoombscsource.com53911400177.3912TB Wood's177.39 @ 2
thumbzoomRaptor SuppliesAG3EEU246.24159312TB WOOD'S246.241593 @ 2
