ZWS100BAF-12

B00DEE5Y0K

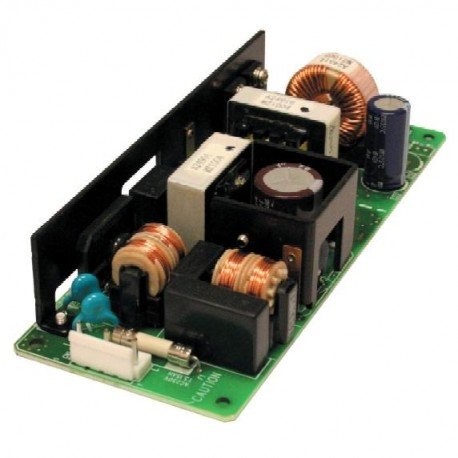

TDK-Lambda ZWS100BAF-12 PowerSupply; AC-DC; 12V@8.5A; 85-265VIn; OpenFrame; PnlMnt; Commercial; PFC; ZWSSeries

TDK-Lambda ZWS100BAF-12 PowerSupply; AC-DC; 12V@8.5A; 85-265VIn; OpenFrame; PnlMnt; Commercial; PFC; ZWSSerieszoom

Attributes

Key Value
Alternate Part No.967-ZWS100BAF12
ApplicationsITE (Commercial)
Approval AgencyCE
ApprovalsUL60950-1, EN60950-1
Base Product NumberZWS100
BrandTDK-Lambda
CategoryPower Supplies - Extern.
Commercial/MedicalCommercial
ConfigurationOpen Frame
Current - Output 18.5 A
Dimensions2.05 in L x 3.86 in W
Efficiency86%
FeaturesAdjustable Output, DC I.
Height1.38 in
Input Voltage100 VAC ; 110 VAC ; 115.
Input Voltage Range85-265 VAC
Length2.05 in
ManufacturerTDK-Lambda
Manufacturer Part No.ZWS100BAF-12
MfrTDK-Lambda Americas Inc
Minimum Load Required-
Mounting StyleChassis
Mounting TypePanel Mount, Chassis Mo.
Number of Outputs1, 1 Output
Open Frame/EnclosedOpen Frame
Operating Temperature-10?C ~ 70?C (With Dera.
OperationPFC
Output Current8.5 A
Output Current-Channel 18.5 A
Output Power102 W
Output Power Rating102 W
Output Voltage12 VDC
Output Voltage-Channel 112 V
PackageBulk
Power (Watts)100W
Primary TypeAC-DC
ProductSwitching Supplies
Product CategorySwitching Power Supplies
Product StatusActive
SeriesZWSBAF, ZWS100BAF (100W.
Size / Dimension6.10" L x 2.44" W x 1.3.
Special Features5 Year Warranty
TypeOpen Frame, Embedded
Unit Weight270 g
Voltage - Input85 ~ 265 VAC
Voltage - Isolation3 kV
Voltage - Output 112V
Voltage - Output 2-
Voltage - Output 3-
Voltage - Output 4-
Voltage - Output 6-
Width3.86 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH297269684.291In StockTDK-Lambda Americas, Inc.84.29 @ 1
Digi-Key2391032102.711In StockTDK-Lambda Americas Inc102.71 @ 1
us.rs-online.com70177542106.691In StockTDK-Lambda106.69 @ 1
RS Delivers739-8001113.341In StockTDK-Lambda113.34 @ 1
AmazonSCB07JNCDMNK119.01In StockTDK-Lambda Americas119.0 @ 1
thumbzoomswatee.comZWS100BAF-12139.12112TDK-Lambda139.12 @ 1
