Potter & Brumfield T92S7D22-24

B07DH21QT4

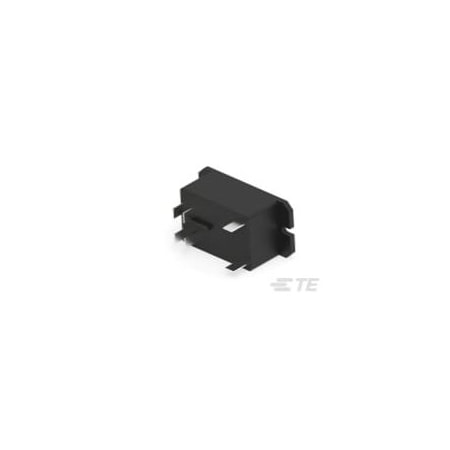

Potter & Brumfield T92S7D22-24 Relay T115556

Potter & Brumfield T92S7D22-24 Relay T115556zoom

Attributes

Key Value
Alternate Mfr Part Numb.1-1393212-7
Body Depth - Relay2.059 in
Body Height - Relay1.209 in
Body Width - Relay1.359 in
carry current30 a
carry voltage277 v
Coil Resistance350 ?
Coil TypeMonostable, DC
Coil Voltage24 VDC
coil voltage dc24 v
Coil Volts24V DC
Contact Current Rating30 a
Contact FormDPST-NO
Contact Form - Relay2 Form A (NO)
Contact Limiting Breaki.40 A
Contact Limiting Making.40 A
Contact Limiting Short-.30 a
Contact MaterialAgCdO, Silver Cadmium O.
Contact Rating30 a
Contact Voltage Rating277 VAC, 300 VAC
Control Voltage24
Current Rating30 a
Dimensions2.060 L x 1.359 W x 1.2.
FeaturesUL Coil Insulation Clas.
FunctionGeneral Purpose
Insulation Clearance.315 in
Insulation Creepage.374 in
Item - RelayStandard Power Relay
item per pack1
Mounting TypePanel Mount, Panel Moun.
Number of Pins8
Number of Poles2
Operating Temp. Range70 to 85?C
packageBULK
Power Consumption - Rel.1700 mW
Primary TypePower Relays
Product HeaderT92 Series Two-Pole DC .
Protection CategoryRTIII
Relay TypeElectromechanical
SeriesT92 Series
StandardsUL ; CSA ; VDE
switch functiondpst
Switching Current500mA @ 12V
Switching Voltage600 VAC
TerminationQC Tabs
Voltage Rating600 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Freelance ElectronicsT92S7D22-248.1240612Potter & Brumfield8.12406 @ 2
Avnet1-1393212-712.37430163TE Connectivity12.374 @ 30
Onlinecomponents.comT92S7D22-2413.2515541TE Connectivity / P&B Brand13.25 @ 2
Future ElectronicsC01292884413.8362402TE Connectivity13.836 @ 240
thumbzoomTedss203400093914.9912TE CONNECTIVITY POTTER & BRUMFIELD14.99 @ 2
thumbzoomNewark17M310122.6812POTTER&BRUMFIELD - TE CONNECTIVITY22.68 @ 2
us.rs-online.com7019863724.2211226TE Connectivity24.22 @ 2
RS Delivers745-597428.60817TE Connectivity28.608 @ 2
AmazonTPB07KX8CXGK36.71125TE Connectivity / AMP Brand36.71 @ 2
thumbzoomFinditParts956982457.012POTTER & BRUMFIELD57.0 @ 2
thumbzoomZoroG80586611285.1612Te Connectivity85.16 @ 2
