Potter&brumfield - Te Connectivity T92S7D22-22

B00AZKZQTU

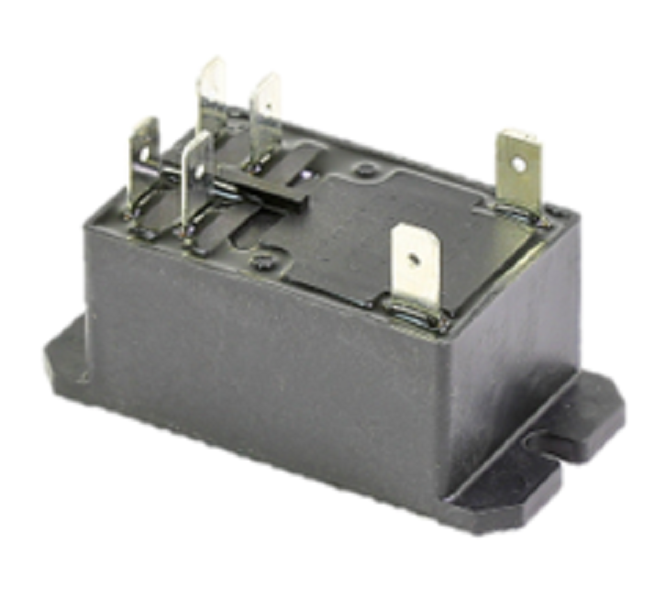

Potter&brumfield - Te Connectivity T92S7D22-22 Rohs Compliant: Yes - T92S7D22-22

Potter&brumfield - Te Connectivity T92S7D22-22 Rohs Compliant: Yes - T92S7D22-22zoom

Attributes

Key Value
Base Product NumberT92S7
Best Sellers RankSee Top 100 in Tools & .
BrandTE Connectivity
CategoryRelays
Coil Current77.3 mA
Coil InsulationClass F
Coil Resistance285 Ohms
Coil TypeNon Latching
Coil Voltage22VDC
Contact FormDPST-NO (2 Form A)
Contact MaterialSilver Cadmium Oxide (A.
Contact Rating (Current)30 A
Contact TypeDpst, Normally Open
Country of Origin (subj.China
Date First AvailableOctober 10, 2013
DescriptionRELAY GEN PURPOSE DPST .
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part NumberT92S7D22-22-ND
Features-
Item model numberT92S7D22-22
ManufacturerTE Connectivity / P&B B.
Manufacturer Product Nu.T92S7D22-22
Manufacturer Standard L.79 Weeks
Maximum Switching Curre.40 Amps
MfrTE Connectivity Potter .
Mounting TypeChassis Mount
Must Operate Voltage16.5 VDC
Must Release Voltage2.2 VDC
Operate Time15 ms
Operating Temperature-55?C ~ 85?C
PackageBulk
Product StatusActive
Product with faster shi.true
Relay TypeGeneral Purpose
Release Time15 ms
Seal Rating-
SeriesT92
Shippingundefined (Fixed Shippi.
Switching Voltage277VAC - Nom
Termination StyleQuick Connect - 0.250" .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com1-1393212-611.051In StockTE Connectivity / AMP Brand11.05 @ 1
WaldomTE CONNECTIVITY POTTER-BRUMFIELD T92S7D22-2216.56016TE CONNECTIVITY / POTTER-BRUMFIELD16.5 @ 60
us.rs-online.com7199564620.71240In StockTE Connectivity20.71 @ 240
Newark08H527922.15240In StockPOTTER&BRUMFIELD - TE CONNECTIVITY22.15 @ 240
thumbzoomDigi-Key142772329.0641142TE Connectivity Potter & Brumfield Relays29.064 @ 1
thumbzoomZoroG70097405932.01In StockTe Connectivity32.0 @ 1
thumbzoomgsistore.comT92S7D22-2243.331In StockTE Connectivity43.33 @ 1
thumbzoommidwestapplianceparts.comT92S7D22-22-TV-P49.831In StockTE Connectivity49.83 @ 1
thumbzoomhomeessentialsdirect.comT92S7D22-2252.261In StockTE Connectivity / P&B Brand52.26 @ 1
thumbzoomVoomi SupplyT92S7D22-2252.361In StockTE Connectivity52.36 @ 1
