Walter AG F4138.S4.040.Z03.54

B00J868C5W

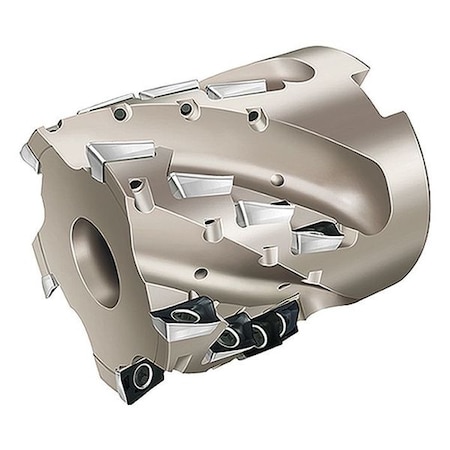

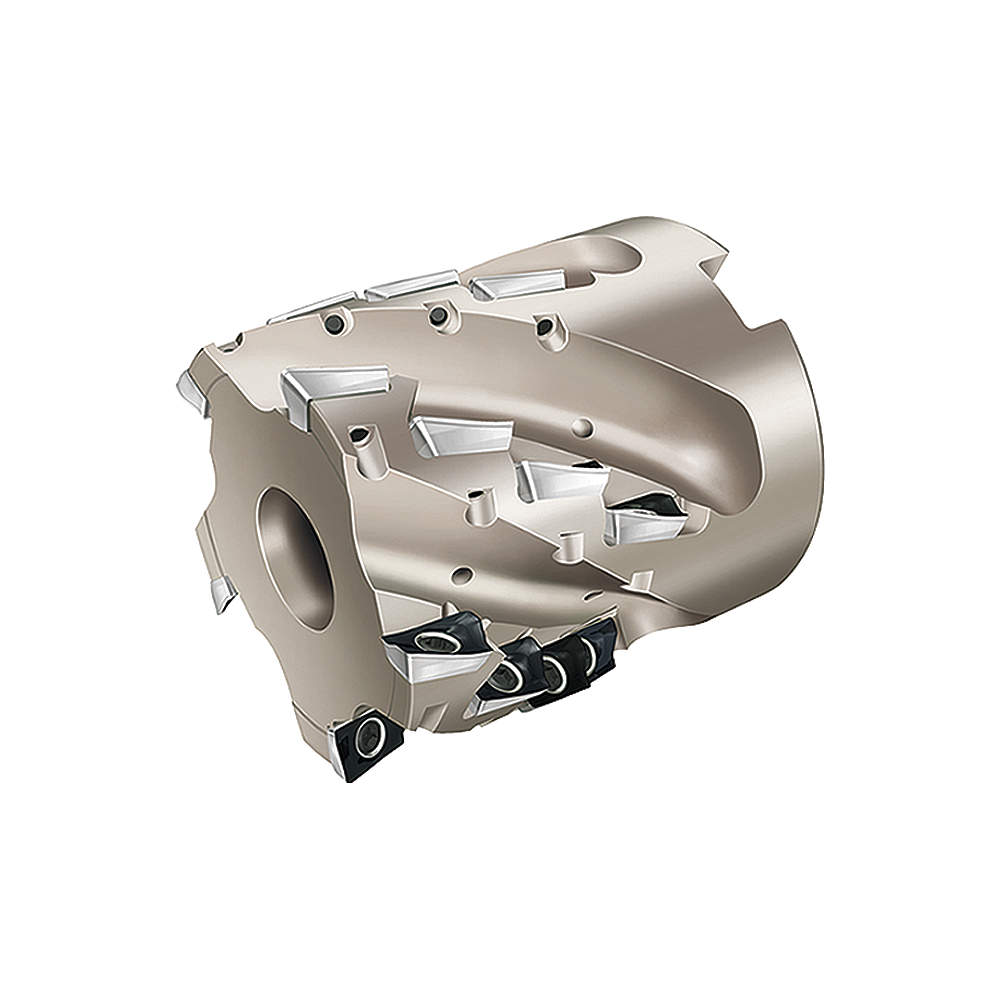

Walter AG - F4138.S4.040.Z03.54 - Indexable Square Shoulder End Mill, Max. Cutting Dia. 40 mm, Taper, Overall Length 168.40 mm

Walter AG - F4138.S4.040.Z03.54 - Indexable Square Shoulder End Mill, Max. Cutting Dia. 40 mm, Taper, Overall Length 168.40 mmzoom

Attributes

Key Value
ANSI CodeF4138.S4.040.Z03.54
BrandWALTER
Catalog PageN/A
Compatible HardwareFS1457 T9IP Clamping Sc.
Connection SizeHSK40
Coolant FedCoolant Through
Country of OriginGermany
Cutter Dia.1.575"
Cutting ApplicationPocket Milling; Ramping.
Cutting Edge TypeCarbide
Cutting Length2.126"
Depth of Cut54.00mm
Diameter1.575"
Features2 Cutting Edges per Ind.
Head Projection Length100.00mm
Insert Cutting Edge Len.54.00mm
Insert ScrewFS1457 Torx 9 IP
ISO NumberF4138.S4.040.Z03.54
ItemIndexable Square Should.
Item?44W259
Left/Right HandRight
MaterialAll ISO
Max. Cutting Dia.40 mm
Max. Speed22,400 RPM
Mfr. Model?F4138.S4.040.Z03.54
Min. Cutting Dia.40.00mm
NomenclatureF4138.S4.040.Z03.54
Number of Coolant Holes6
Number of Inserts Requi.3
Overall Length168.40 mm, 168.40mm
Overall Length (In.)6.63
SeriesF4138
Shank Dia. (In.)SK50 AD/B
Shank Type - MachiningTaper
StandardsISO50, ISO7388.1 / DIN6.
Taper Shank SizeSK40
UNSPSC23171612

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG81400451441.991In StockWalter7.521441.99 @ 1
Grainger44W2591589.121In StockWALTER1589.12 @ 1
thumbzoomRaptor SuppliesAD6DAP2219.504041In StockWALTER2219.50404 @ 1
