- mpnMVU18BCK
- brandname: 3-M
- manufacturername: 3-M

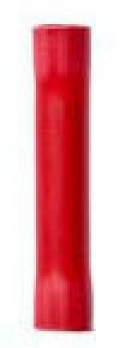

3M Scotchlok Butt Connector, Vinyl Insulated Butted Seam MVU18BCK, 22-18 AWG, built-in wire stop for correct positioning
- Brand: 3M
- PartNumber: MVU18BCK
- Model: 80610039358
- Color: Red
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: 3M
- Label: 3M
Attributes
| Key | Value |
|---|
| 3M Number | MVU18BCK |
| Allowable Gauge Range | 22 - 18 |
| Angle | Straight |
| Barrel Inside Dia. | 0.07 in |
| Barrel Length | 0.25 in |
| Barrel Style: | Butted |
| Base Product Number | MVU18 |
| Brand | 3M |
| Category | Electrical Terminals, C. |
| Color | Tin, Red |
| Connection Material | Copper |
| Connection Type | Crimp |
| Connector Type | Butt Splice |
| Contact Material | ETP Copper |
| Contact Plating | Tin |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Features | - |
| Inside Diameter | 0.07 in |
| Insulation | Fully Insulated |
| Insulation Color | Red |
| Insulation Diameter | 0.145 " |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Item | Splice Connector |
| Manufacturer | 3M |
| Material | Vinyl |
| Material: | PVC |
| Max. Temp. | 221 Degrees F |
| Max. Voltage | 600 V |
| Maximum Insulation Outs. | 0.145 in |
| Maximum Wire Size | 18 AWG |
| Mfr | 3M |
| Minimum Conductor Leg D. | 22 AWG |
| Minimum Wire Size | 22 AWG |
| Number Of Terminals: | 1000 per bulk box |
| Number of Wire Entries | 2 |
| Overall Length | 1 ", 1.0 in, 1 in |
| Package | Bulk |
| Package Quantity | 1000 per case, 1000 |
| Part Status | Active |
| Seam | Butted |
| Series | Scotchlok?, Scotchlok S. |
| Special Features | Butted Seam, Barrel |
| Standard: | UL and CSA |
| Standards | UL Listed and CSA Certi. |
| Sub Brand: | Scotchlok |
| Terminal Size: | 22 - 18 AWG |
| Terminal Type | Butt Splice, Inline, In. |
| Termination | Crimp |
| Trade Name | Scotchlok |
| Type | Insulated, Butted Seam,. |
| Type: | Butt |
| UNSPSC | 39121432 |
| UPC | 054007013150 |
| UPC Code | 54007013150 |
| Wire Gauge | 18-22 AWG |
| Wire Range | 22 to 18 AWG |
| Wire Size | 18-22 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hotenda | H1641213 | 0.27184 | 1 | 1345 | | 3M | | 0.27184 @ 1000 |
| Digi-Key | 31352 | 0.30347 | 2500 | 1670 | | 3M | | 0.30347 @ 1000 |
 | turtle.com | MMM MVU18BCK | 0.31 | 1 | 1000 | | 3M | | 0.31 @ 1000 |
 | Platt.com | 0402661 | 0.37 | 1 | 1000 | | 3M | | 0.37 @ 1000 |
| kirbyrisk.com | 2579653 | 0.59 | 1000 | 1000 | | 3M | | 0.59 @ 1000 |
 | sustainablesupply.com | C3011266 | 214.27 | 1 | 1000 | | 3M | 2.85 | 214.27 @ 1000 |
 | rshughes.com | 054007-01315 | 250.0 | 1000 | 1000 | | 3M | | 250.0 @ 1000 |
 | gordonelectricsupply.com | MVU18BCK | 259.0 | 1 | 1000 | 455 | 3-M | | 259.0 @ 1000 |
 | Zoro | G5690133 | 279.0 | 1 | 1000 | 26 | 3M | 2.85 | 279.0 @ 1000 |
| Dale-Electric | MVU18BCK | 285.74 | 1 | 1000 | | 3M | | 285.74 @ 1000 |
| us.rs-online.com | 71083916 | 343.32 | 1 | 1000 | | 3M | | 343.32 @ 1000 |
