Baldor ECP3586T-4

B0042GCMJA

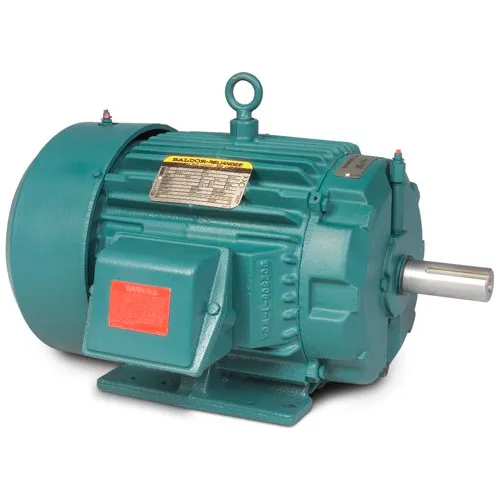

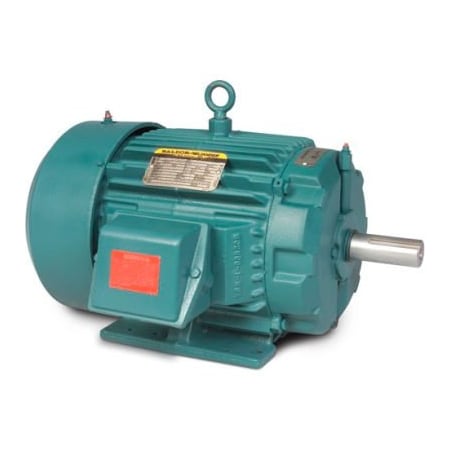

BALDOR ECP3586T-4 Three Phase, Totally Enclosed, Foot Mounted, Severe Duty Motor, 2 hp, 3450 RPM, 3PH, 60 Hz, 145T, 0532M, TEFC, F1, 460Volts, 460V, Steel

BALDOR ECP3586T-4 Three Phase, Totally Enclosed, Foot Mounted, Severe Duty Motor, 2 hp, 3450 RPM, 3PH, 60 Hz, 145T, 0532M, TEFC, F1, 460Volts, 460V, Steelzoom

Attributes

Key Value
Amps2.5
Bearing TypeRe-Greasable
BearingsBall
CompositionCast Iron
ConstructionCast Iron
Country of Origin (subj.United States
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency86.5%
Efficiency %86.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialIron
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight74.00
Family SeriesBaldor Motors, CP Series
FL Amps2.5
FL Efficiency86.5
Frame145T
Gross Weight74 lbs
Hertz60
Horsepower2 hp
HP2
Hz60
Insulation ClassF
Inverter DutyYes, No
Item NumberECP3586T-4
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #05F008W090G1
Manufacturer Part NumberECP3586T-4
Maximum Ambient Tempera.40? C
MountingFoot Mount, Rigid
Mounting TypeFoot Mount, Rigid
NEMA Frame145TC
Net Weight74 lbs
Nominal Voltage415 VAC, 480 VAC
Number of Poles2
Number of Speeds1
Overall Length12.88 ", 12.95"
Part NumberECP3586T-4
Phase3
Product SeriesCP
Product TypeSevere Duty & IEEE 841,.
RotationReversible
RPM3450, 3400 - 3600, 3,60.
Service Factor1.15
Shaft Diameter0.875"
Ship Weight74 lbs.
Speed (RPM)3450
Voltage460V, 460
Voltage (AC)460 VAC
Volts460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
motionindustries.com02719808718.651In StockBaldor-Reliance718.65 @ 1
thumbzoomelectricmotorwholesale.comECP3586T-4795.521In StockBaldor74.0795.52 @ 1
AmazonTPB007ZQPEW6910.931In Stock3Baldor Electric910.93 @ 1
thumbzoomemotorpro.comECP3586T-41057.191In StockBaldor74.01057.19 @ 1
factorysupplyoutlet.comXY50MO1158.091In StockBaldor-Reliance1158.09 @ 1
thumbzoomgalesburgelectric.comECP3586T-41169.791In StockBaldor1169.79 @ 1
thumbzoomGalcoECP3586T-4-BLDR1169.791In StockBaldor74.01169.79 @ 1
thumbzoomWalker IndustrialECP3586T-41169.791In StockBaldor1169.79 @ 1
thumbzoomGlobal IndustrialWBB3884971171.01In StockBaldor-Reliance1171.0 @ 1
thumbzoommotorsandcontrol.comECP3586T-41218.521In StockBaldor Reliance74.01218.52 @ 1
thumbzoomapexindustrialautomation.comECP3586T-41349.7511Baldor-Reliance1349.75 @ 1
thumbzoomcbtcompany.comECP3586T-41386.21In StockBaldor Reliance1386.2 @ 1
thumbzoompumpproducts.comECP3586T-42080.831In StockBaldor2080.83 @ 1
thumbzoomZoroG6049354842662.71In StockBaldor-Reliance2662.7 @ 1
