Bell & Gossett 4JA84

B002UBM5UA

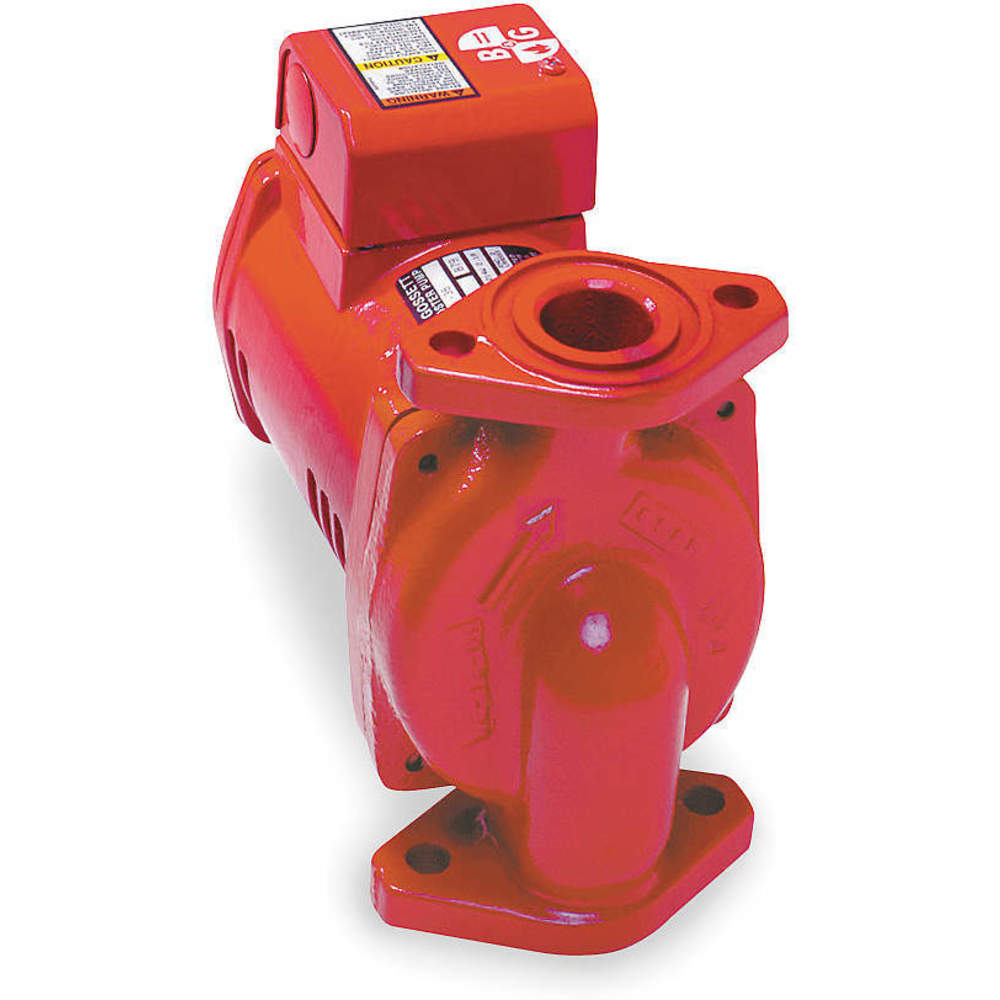

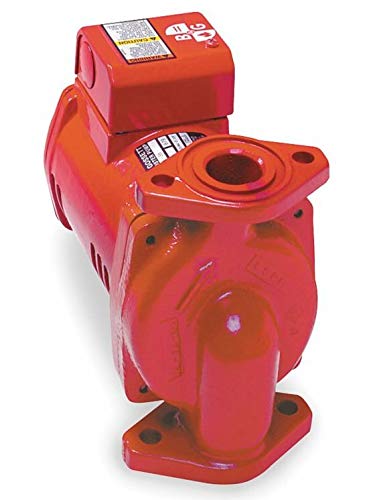

Bell & Gossett Hot Water Circulator Pump Model PL-36 115V

Bell & Gossett Hot Water Circulator Pump Model PL-36 115Vzoom

Attributes

Key Value
Amps2.1 A
Compatible Discharge Pi.3/4 in, 1 in, 1 1/4 in,.
Compatible Intake Pipe .3/4 in, 1 in, 1 1/4 in,.
Connection TypeFlange
Face to Face Dimension6 3/8 in
Flange or Union IncludedNo
For Use With Potable Sy.Yes
Frequency60 Hz
Horsepower1/6
Impeller MaterialPlastic
IncludesAuto Thermal Protection
ItemHydronic Circulating Pu.
Manufacturer Warranty L.1 yr
Maximum Feet of Head37 ft
Maximum Flow Rate @ 1 F.38 gpm
Maximum Flow Rate @ 10 .34 gpm
Maximum Flow Rate @ 15 .30 gpm
Maximum Flow Rate @ 20 .25 gpm
Maximum Flow Rate @ 25 .16 gpm
Maximum Flow Rate @ 30 .11 gpm
Maximum Flow Rate @ 5 F.37 gpm
Maximum Flow Rate @ 50 .37 gpm
Maximum Media Temperatu.225 Degrees F
Maximum Operating Press.150 psi
Maximum RPM3,300 RPM
Motor Enclosure DesignTotally Enclosed Fan-Co.
Mounting LocationIn-Line
Nameplate Voltage115V AC
Number of Speeds1
Overall Height6.38 in
Overall Length6.63 in
Overall Width4.38 in
PhaseSingle
Pump Housing MaterialCast Iron
Pump TypeStandard
Rotor TypeDry
SeriesPL-36
Series FamilyPL
StandardsUL Listed

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB0078RPK1W259.01In Stock1Bell & Gossett259.0 @ 1
thumbzoomsustainablesupply.comC1741187533.451In StockBell & Gossett14.0533.45 @ 1
grainger.caWWG4JA84677.336675321In StockBELL & GOSSETT14.0677.33667532 @ 1
thumbzoomRaptor SuppliesAD8DHU705.84116851In StockBELL & GOSSETT705.8411685 @ 1
