Bell & Gossett 4JA85

B002UBRDXO

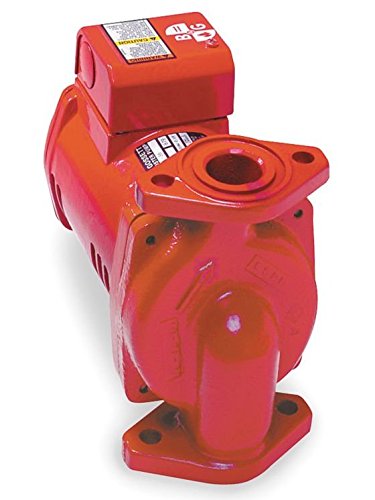

Bell & Gossett - PL-45 - 1/6 HP Cast Iron Maintenance Free Hot Water Circulator Pump

Bell & Gossett - PL-45 - 1/6 HP Cast Iron Maintenance Free Hot Water Circulator Pumpzoom

Attributes

Key Value
Amps2.1 A
Compatible Discharge Pi.1 in, 1 1/4 in, 1 1/2 in
Compatible Intake Pipe .1 in, 1 1/4 in, 1 1/2 in
Connection TypeFlange
Face to Face Dimension8 1/2 in
Flange or Union IncludedNo
For Use With Potable Sy.Yes
Frequency60 Hz
Horsepower1/6
Impeller MaterialPlastic
IncludesAuto Thermal Protection
ItemHydronic Circulating Pu.
Manufacturer Warranty L.1 yr
Maximum Feet of Head31 ft
Maximum Flow Rate @ 1 F.49 gpm
Maximum Flow Rate @ 10 .43 gpm
Maximum Flow Rate @ 15 .33 gpm
Maximum Flow Rate @ 20 .27 gpm
Maximum Flow Rate @ 25 .15 gpm
Maximum Flow Rate @ 30 .5 gpm
Maximum Flow Rate @ 5 F.45 gpm
Maximum Flow Rate @ 50 .45 gpm
Maximum Media Temperatu.225 Degrees F
Maximum Operating Press.150 psi
Maximum RPM3,300 RPM
Motor Enclosure DesignTotally Enclosed Fan-Co.
Mounting LocationIn-Line
Nameplate Voltage115V AC
Number of Speeds1
Overall Height8.5 in
Overall Length9.13 in
Overall Width4.5 in
PhaseSingle
Pump Housing MaterialCast Iron
Pump TypeStandard
Rotor TypeDry
SeriesPL-45
Series FamilyPL
StandardsUL Listed

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB008FM7QW0437.551In Stock5BELL & GOSSETT437.55 @ 1
thumbzoomindustrialstores.comPL-45586.2411Bell & Gossett586.24 @ 1
thumbzoomRaptor SuppliesAD8DHV978.96620251In StockBELL & GOSSETT978.9662025 @ 1
