Bourns PM105SB-820L-RC

mpnPM105SB-820L-RC
brandname: Bourns Inc.
manufacturername: Bourns Inc.

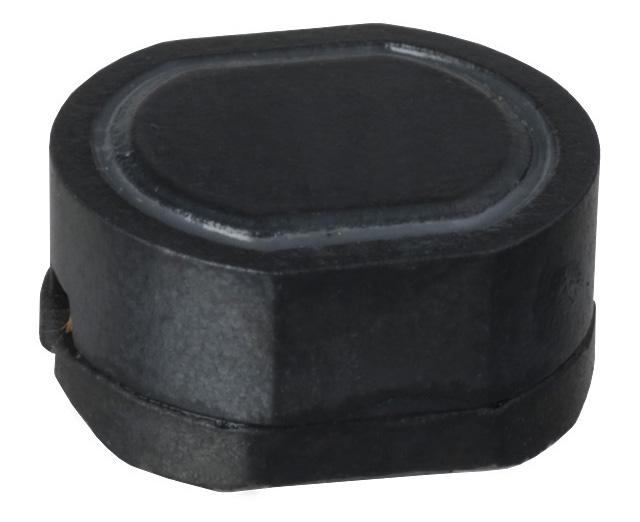

Bourns PM105SB-820L-RC Inductor Surface Mount

Bourns PM105SB-820L-RC Inductor Surface Mount

zoom

Brand: Bourns
PartNumber: PM105SB-820L-RC
Binding: Electronics
Manufacturer: Bourns
Label: Bourns

Attributes

Key	Value
Alternate Part No.	542-PM105SB-820L-RC
Base Product Number	PM105SB
Brand	J.W. Miller
Case Height	5 mm
Case Length	10 mm
Case Width	9 mm
Category	Inductors, Coils, Chokes
Current - Saturation (I.	-
Current Rating (Amps)	790 mA
DC Resistance (DCR)	280mOhm Max
Frequency - Self Resona.	9MHz
Height - Seated (Max)	0.189" (4.80mm)
Inductance	82 uH, 82 ?H
Inductance Frequency - .	100 kHz
Manufacturer	Bourns
Manufacturer Part No.	PM105SB-820L-RC
Material - Core	Ferrite
Maximum DC Current	790 mA
Maximum DC Resistance	280 mOhms
Mfr	Bourns Inc.
Mounting Type	Surface Mount
Operating Temperature	-40?C ~ 125?C
Operating Temperature R.	- 30 C to + 100 C
Package	Tape & Reel (TR)
Package / Case	Nonstandard
Packaging	Reel
Product Category	Fixed Inductors
Product Status	Active
Q @ Freq	26 @ 2.52MHz
Ratings	-
Self Resonant Frequency	9 MHz
Series	PM105SB
Shielding	Shielded
Size / Dimension	0.390" L x 0.390" W (9..
Supplier Device Package	-
Termination Style	SMD/SMT
Test Frequency	2.52 MHz
Tolerance	?15%, 15 %
Type	Shielded SMD Power Indu.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Hotenda	H2158544	0.42336	500	100		Bourns, Inc.		0.42336 @ 500
	Onlinecomponents.com	PM105SB-820L-RC	0.56	1	1000		BOURNS		0.56 @ 100
	Newark	63K3539	0.7	1000	100		BOURNS JW MILLER		0.7 @ 1000
	Digi-Key	774983	0.90459	1	100		Bourns Inc.		0.90459 @ 100
	Radwell	PM105SB-820L-RC	0.99	500	100		BOURNS		0.99 @ 500
	swatee.com	PM105SB-820L-RC	1.74	1	101		Bourns		1.74 @ 100
