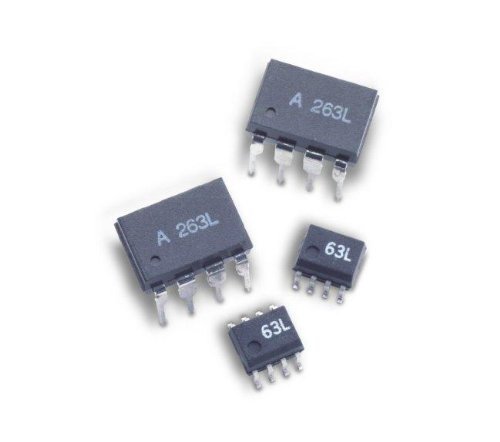

AVAGO TECHNOLOGIES HCPL-263L-000E

B00M1T8XXO

HCPL-263L-000E

HCPL-263L-000Ezoom

Attributes

Key Value
Alternate Part No.630-HCPL-263L-000E
Base Product NumberHCPL-263
BrandAvago Technologies
CategoryIsolators
Common Mode Transient I.10kV/?s
Current - DC Forward (I.15mA
Current - Output / Chan.50 mA
Data Rate15 MBd, 15MBd
Fall Time20 ns
Input TypeDC
Inputs - Side 1/Side 22/0
Isolation Voltage3750 Vrms
ManufacturerAvago Technologies
Manufacturer Part No.HCPL-263L-000E
Maximum Continuous Outp.50 mA
Maximum Forward Diode C.15 mA
Maximum Forward Diode V.1.75 V
Maximum Operating Tempe.+ 85 C
Maximum Power Dissipati.60 mW
Maximum Reverse Diode V.5 V
MfrBroadcom Limited
Minimum Forward Diode V.1.4 V
Minimum Operating Tempe.- 40 C
Mounting TypeThrough Hole
Number of Channels2
Number of Channels per .2 Channels
Operating Temperature-40?C ~ 85?C
Output DevicePhoto IC
Output TypeOpen Collector, Schottk.
PackageTube
Package / Case8-DIP (0.300", 7.62mm)
Package/CasePDIP-8
PackagingTube
Product CategoryHigh Speed Optocouplers
Product StatusActive
Propagation Delay tpLH .75ns, 75ns
Rise / Fall Time (Typ)24ns, 10ns
Rise Time45 ns
Series-
Supplier Device Package8-DIP
Voltage - Forward (Vf) .1.5V
Voltage - Isolation3750Vrms
Voltage - Supply2.7V ~ 3.6V, 4.5V ~ 5.5V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key8253045.731In Stock187Broadcom Limited5.73 @ 1
thumbzoomswatee.comHCPL-263L-000E7.051138Avago Technologies7.05 @ 1
thumbzoomRadwellHCPL-263L-000E8.511In StockAVAGO TECHNOLOGIES US INC8.51 @ 1
