AO Smith RB3204

B005XROS4Y

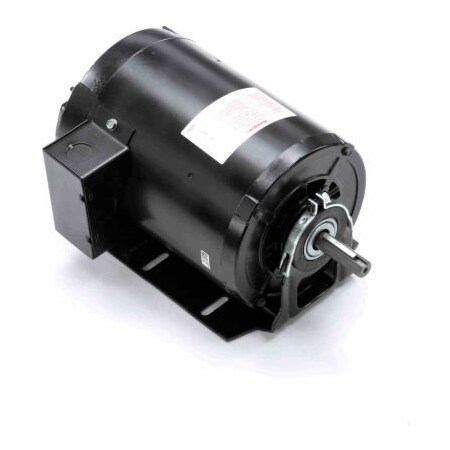

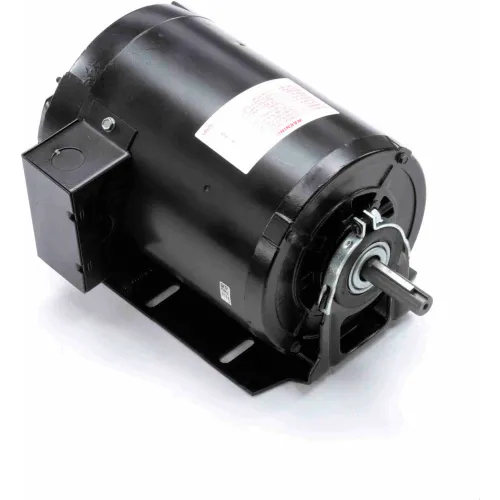

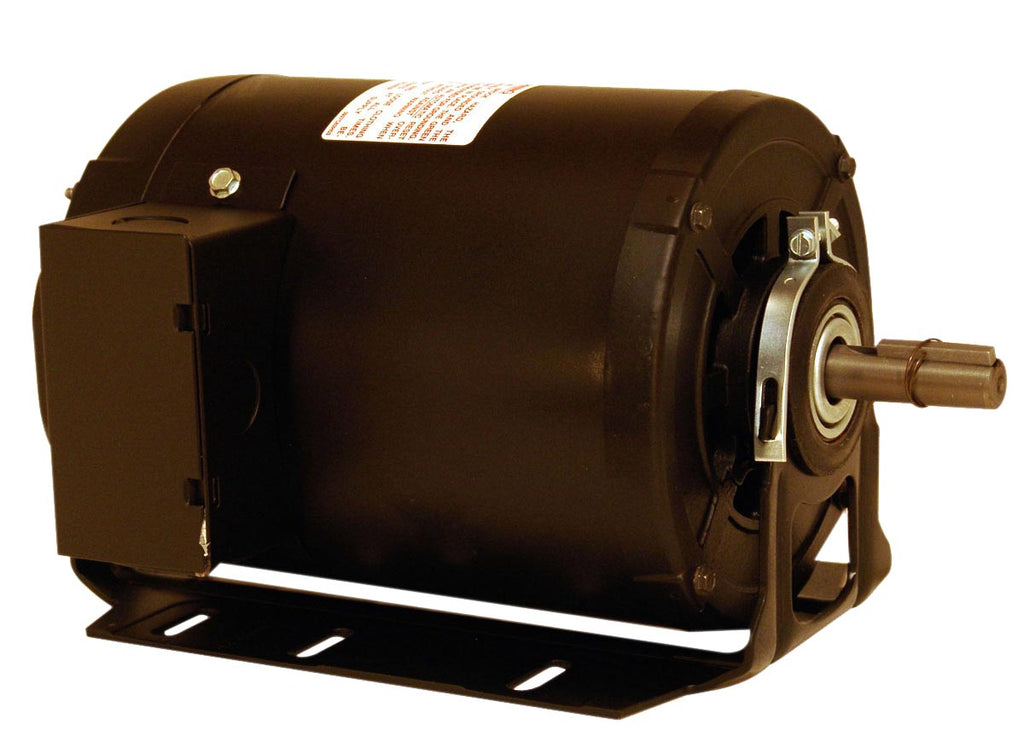

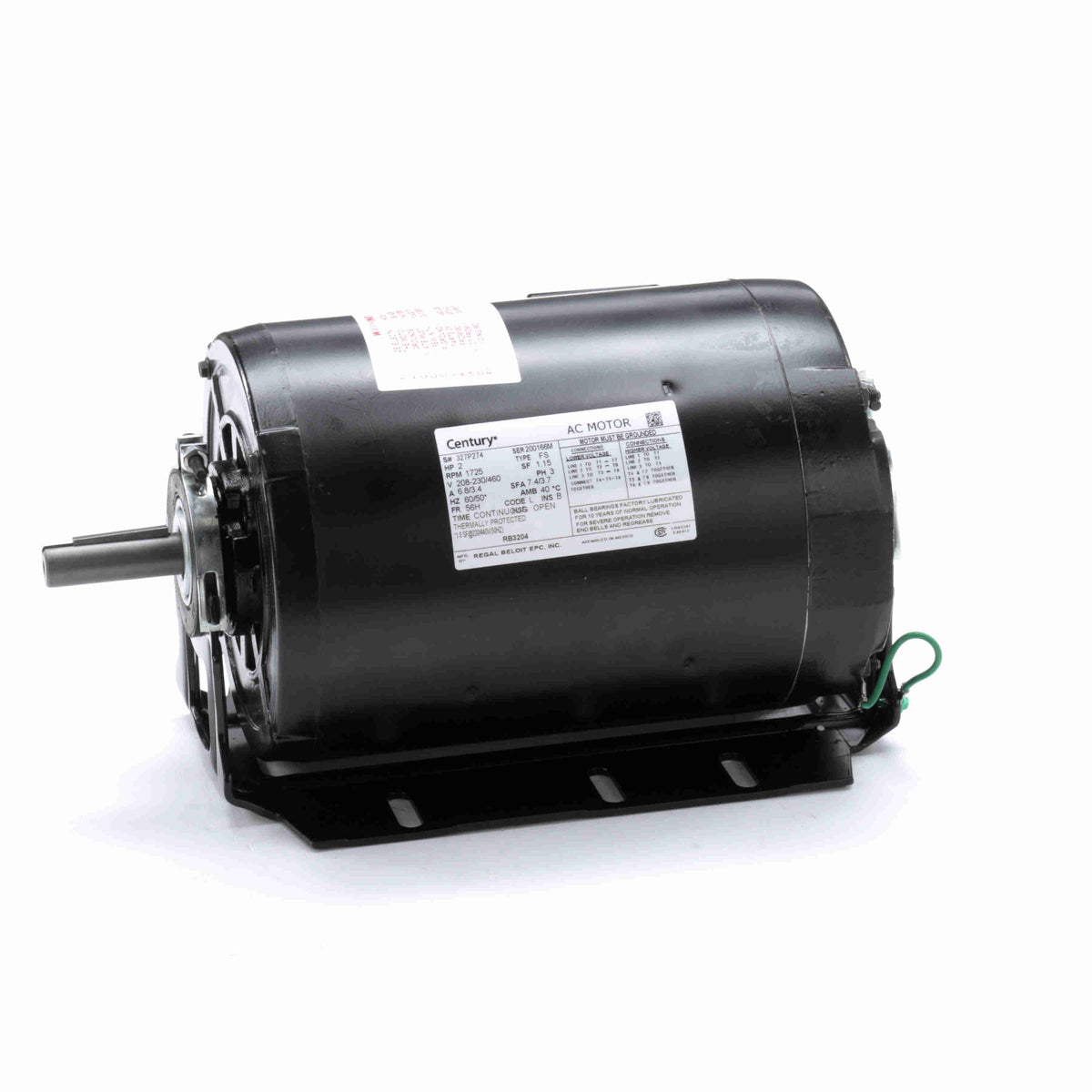

Century RB3204 2 hp 460V 1725 rpm General Purpose 3 Phase Motor

Century RB3204 2 hp 460V 1725 rpm General Purpose 3 Phase Motorzoom

Attributes

Key Value
Amps6.8/3.4
ApplicationFan and Blower
BearingsBall
Country of Origin (subj.Mexico
DutyContinuous
Duty CycleContinuous
Enclosure TypeOAO (Open Air Over)
Frame56H
Full Load Amps6.8/3.4A
HP2 HP, 2
Hz60 Hz, 50/60
Ins. ClassB
Insulation ClassB
ItemMotor
Manufacturers Warranty .1 yr.
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationOEM Replacement
Motor BearingsSleeve
Motor DesignThree Phase
Motor Diameter6-1/2"
Motor Enclosure DesignOpen Enclosed
Motor Mounting TypeResilient Base
Motor Service Factor1.00
Motor Shaft DesignKeyed
Motor Shaft RotationReversible
Motor Sub ApplicationFan and Blower HVAC/R M.
MountingCradle
Nameplate RPM1725 rpm
No. of SpeedsSingle and Two Speed
Number of Shafts1
Number of Speeds1
Overall Length12.34"
Phase3
Product Type3 Phase
Promotion RestrictionNot eligible for promot.
RB3204 is listed in Cen.A.O. Smith 311P339, A.O.
RotationReversible
RPM1725
Service Factor (SF)1.15
Shaft Dia.5/8"
Shaft Diameter5/8" Keyed
Shaft Length1-7/8", 2"
Ship Weight33 lbs.
StandardsCSA Certified
Thermal ProtectionNone
Voltage208-230/460V
Volts208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomVoomi SupplyRB3204545.521In StockCentury Motors545.52 @ 1
thumbzoomemotorpro.comRB3204546.981In StockCentury33.0546.98 @ 1
thumbzoommidwestapplianceparts.comRB3204-AO-P558.1611AO Smith558.16 @ 1
thumbzoomsustainablesupply.comC2091560577.761In StockCentury15.0577.76 @ 1
thumbzoomGlobal IndustrialWBB2776685604.01In StockCentury604.0 @ 1
thumbzoomNational Supply NetworkB2776685604.71In StockAO SMITH604.7 @ 1
thumbzoomZoroG304954099962.991In StockA.O. Smith962.99 @ 1
