AO Smith USQ1252

B00HZSY178

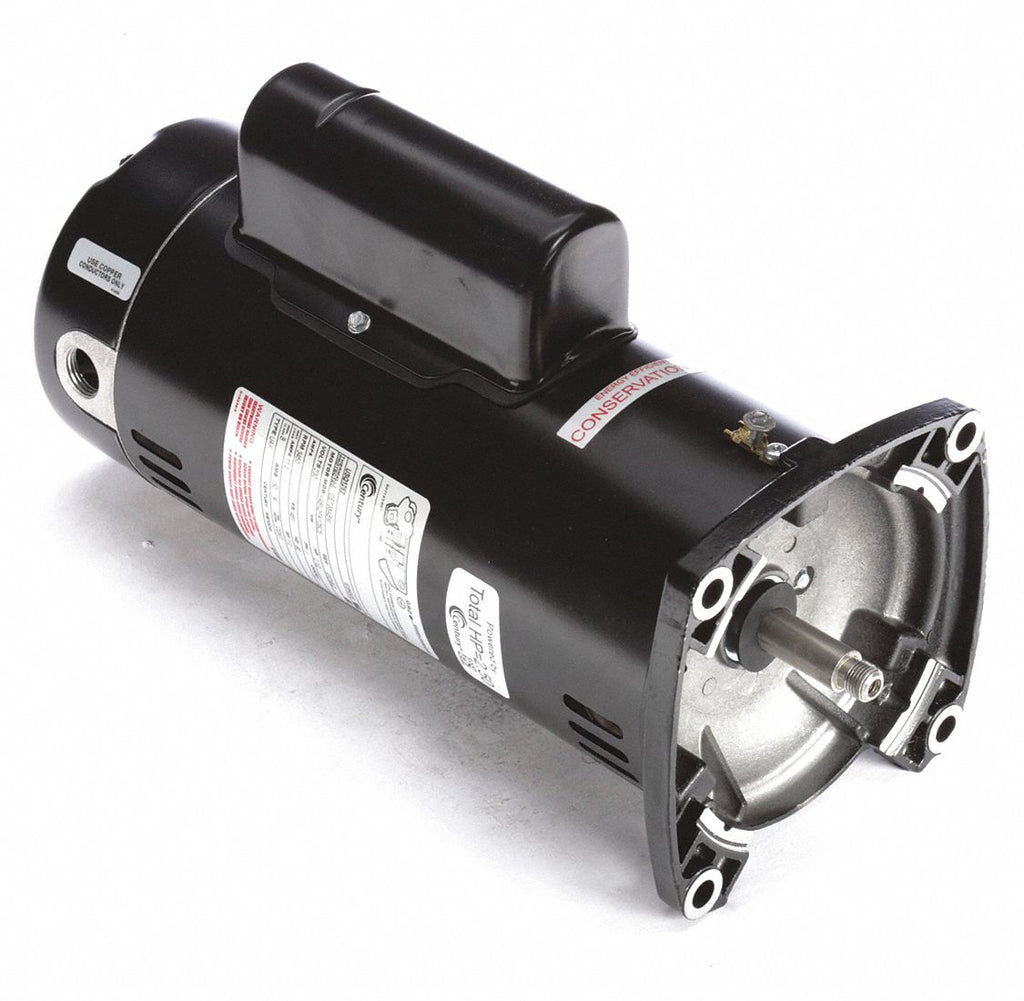

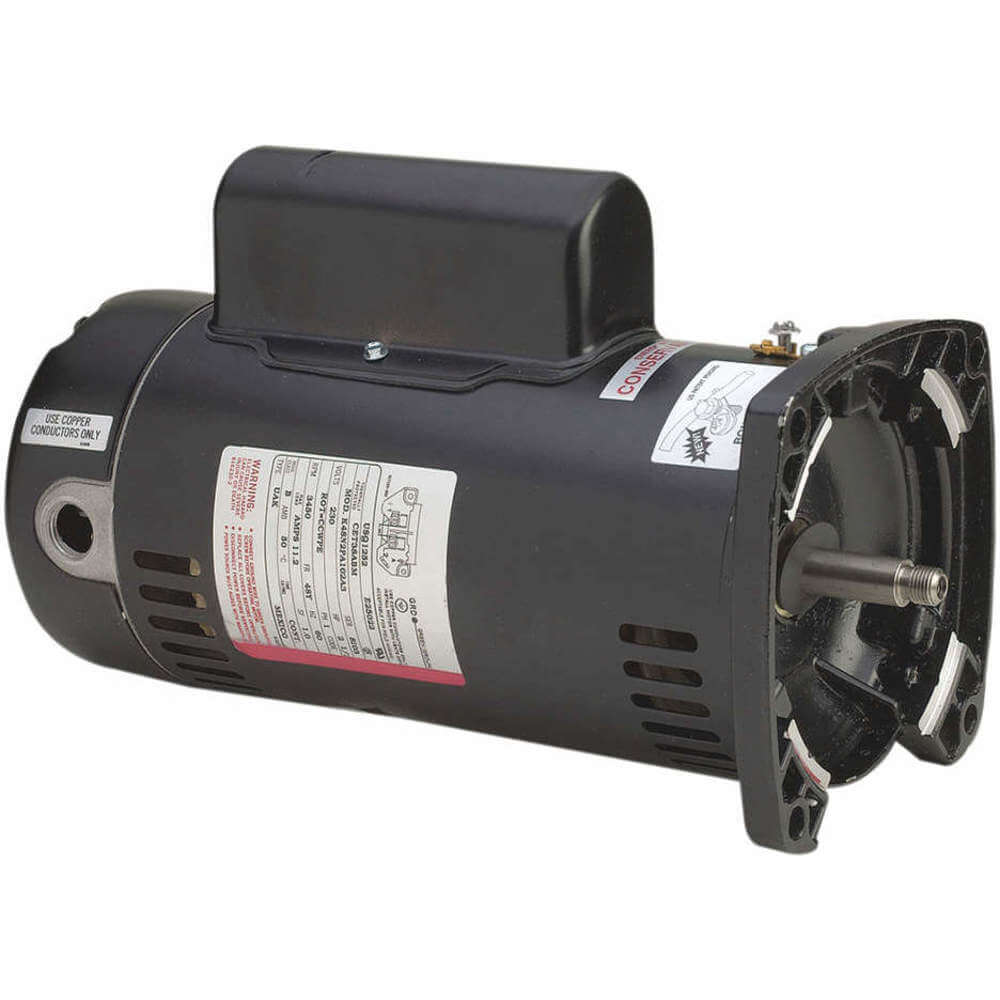

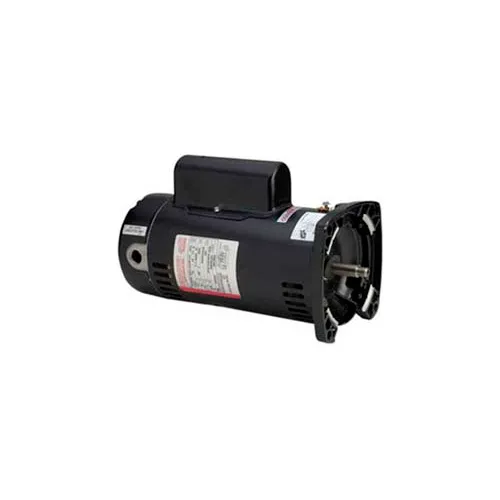

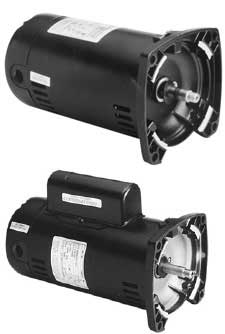

USQ1252 Pool Pump Motor 48Y Frame 2.5 HP Square Flange 230V

USQ1252 Pool Pump Motor 48Y Frame 2.5 HP Square Flange 230Vzoom

Attributes

Key Value
<span style="color#ff0000;">We cannot shi.
Amps11.2
ASINB0042GJQ5S
Banned StatesThis product is banned .
Batteries Required?No
BearingsBall
Body Dia.5.6", 5.6 in
BrandCentury
CapacitorIncluded
Cross Reference #AE100G5LL
Current Stock9
Delivery Time2-5 Business Days
Duty CycleContinuous
Enclosure TypeODP (Open Dripproof)
Frame48Y
Full Load Amps11.2
Height11 in
HP2-1/2, 2 1/2
Hz60
Ins. ClassB
Insulation ClassB
International ShippingNo
ItemPool Pump Motor, Square.
Item model numberUSQ1252
Lead TimeExpected to ship in 1-2.
Length Less Shaft13 11/16", 13 11/16 in
ManufacturerCentury Motors, AO Smit.
Manufacturer Part #USQ1252
Max. Ambient Temp.50 Degrees C, 50 Degre.
Maximum Ambient Tempera.50? C
Motor ApplicationPump
Motor BearingsBall
Motor DesignCapacitor-Start/Run
Motor Diameter5-5/8"
Motor Efficiency GroupHigh Efficient, Energy .
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor1, 1.00
Motor Shaft DesignThreaded
Motor Shaft RotationCCWSE
Motor Sub ApplicationPool and Spa Pump
Motor Thermal ProtectionAuto
MountingSquare Flange
MpnUSQ1252
Nameplate RPM3,450
No. of Speeds1
Number of Speeds1
Overall Length14 9/16 in, 14 9/16"
Part NumberUSQ1252
Phase1, Single
Poolweb Item #USQ1252
Product CategoryPump Motors
Product TypeCapacitor Start, Capaci.
RotationCCW Pump End
RPM3450
RPM Range3,001 - 3,600, 3,001-3,.
Service Factor (SF)1.00
ShaftThreaded 1/2-20 UNF-2A .
Shaft Dia.5/8 in, 5/8"
Shaft Dia. (In.)5/8
Shaft DiameterThreaded
Shaft Length15/16", 15/16 in
Shaft Material303 Stainless Steel
Ship Weight32 lbs.
Shipping Weight35.0 lb
SKUZO-G2494396, AOS-60-5232
StandardsCSA, UL
Stator TypePermanent Split Capacit.
SubCategoryMotors/Ac Motors
Technical Specs<p>Horsepower: 2.5 HP
Thermal ProtectionAutomatic
UNSPSC Code39120000
Usable @ 200VNo
Usable @ 208VNo
USQ1252 is listed in Ce.A.O. Smith K48A03A24, A.
Voltage220-240V, 230V AC, 230
Voltage Compatibility230, 240, 115/230, 120/.
Volts230
Weight32 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
hottubworks.com620117319.991In StockCentury A.O. Smith319.99 @ 1
thumbzoomktool.netUSQ1252408.511In StockCentury408.51 @ 1
AmazonTPB0087N5GSS416.81In Stock3A O Smith416.8 @ 1
AmazonUNKB0087N5GSS416.81In StockA O Smith416.8 @ 1
AmazonB0042GJQ5S417.651In StockCentury417.65 @ 1
thumbzoompoolweb.comUSQ1252450.26158Century Motors35.0450.26 @ 1
thumbzoomemotorpro.comUSQ1252468.481In StockCentury32.0468.48 @ 1
yourpoolhq.comAOS-60-5232468.991In StockAO Smith468.99 @ 1
thumbzoomgetpoolparts.comUSQ1252474.91In StockCentury Motors474.9 @ 1
thumbzoomsustainablesupply.comC1564527494.161In StockCentury31.95494.16 @ 1
thumbzoommidwestapplianceparts.comUSQ1252-AO-P496.191In StockAO Smith496.19 @ 1
thumbzoomNational Supply NetworkB516512504.641In StockAO SMITH504.64 @ 1
thumbzoomZoroG2494396523.991In StockCentury31.95523.99 @ 1
thumbzoomVoomi SupplyUSQ1252524.731In StockCentury Motors524.73 @ 1
thumbzoomindustrialstores.comUSQ1252536.021In Stock12Century Motors by Regal Beloit536.02 @ 1
Wild West Pool SuppliesUSQ1252537.741In StockA.O. Smith30.06537.74 @ 1
thumbzoomGlobal IndustrialWBB516512545.01In StockA.O. Smith545.0 @ 1
lesliespool.com620117559.991In StockCentury A.O. Smith559.99 @ 1
ptacsolutions.comUSQ1252603.431In StockA.O. Smith603.43 @ 1
grainger.caAOSUSQ1252612.493167281In StockCENTURY31.95612.49316728 @ 1
thumbzoomsimsupply.comZO-G2494396616.6219Century616.62 @ 1
thumbzoomRaptor SuppliesAE6AUX774.4799791In StockCENTURY774.479979 @ 1
