- mpn4THU1
- brandname: Dayton
- manufacturername: Dayton

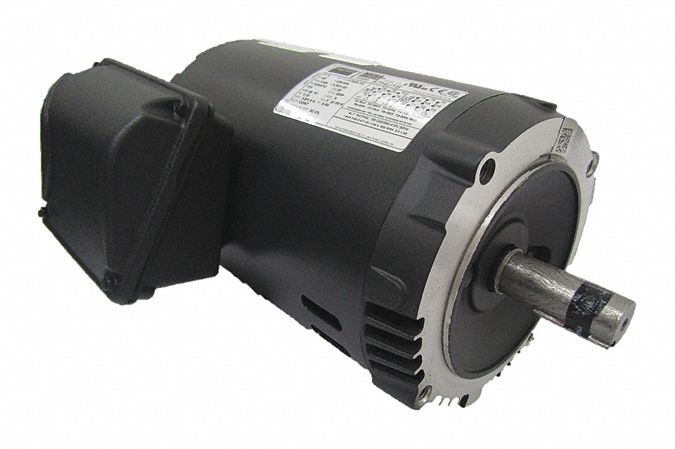

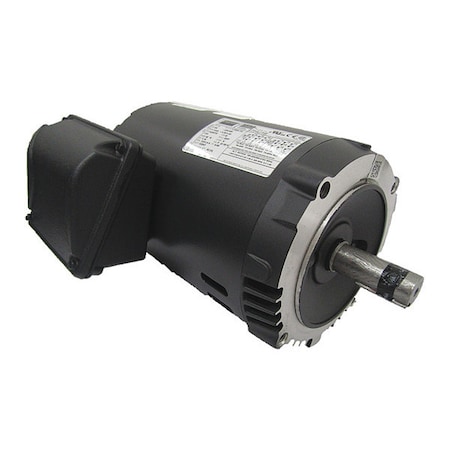

Dayton 1 HP General Purpose Motor,3-Phase,1140 Nameplate RPM,Voltage 230/460,Frame 145TC
- Brand: CAI - DAYTON
- PartNumber: 4THU1
- PackageQuantity: 1
- Manufacturer: CAI - DAYTON
- Label: CAI - DAYTON
Attributes
| Key | Value |
|---|
| Amps | 3.5-3.3/1.7 |
| Bearings | Ball |
| Brand | Dayton |
| CC Number | CC029A |
| Color | Black |
| Cross Reference | 4THX5 |
| Current Stock | 3 |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Enclosure Material | Steel |
| Enclosure Type | ODP (Open Dripproof) |
| Footnotes | 2,10 |
| Frame | 145TC |
| Full Load Amps | 3.3/1.70 |
| Green Certification or . | NEMA Premium(R) Rated |
| Green Environmental Att. | Product Contributes To . |
| HP | 1 |
| HP @ 50Hz | 920 |
| Hz | 60 |
| Ins. Class | F |
| Insulation Class | F |
| International Shipping | No |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 9 11/16 in |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 9-11/16" |
| Motor Thermal Protection | None |
| Mounting | C-Face |
| Mpn | 4THU1 |
| Nameplate RPM | 1,140 |
| NEMA Design | B |
| No. of Speeds | 1 |
| Nominal Efficiency | 82.5 % |
| Number of Speeds | 1 |
| Overall Length | 12-1/4", 12 1/4 in |
| Part Winding Start Capa. | No |
| Phase | 3, Three |
| Product Type | 3 Phase |
| Rotation | Reversible |
| RPM | 1140 |
| RPM Range | 1,101-1,200 |
| Service Factor (SF) | 1.15 |
| Shaft Dia. | 7/8 in |
| Shaft Diameter | 7/8" Keyed |
| Shaft Length | 2 1/4 in, 2-1/4" |
| Ship Weight | 41 lbs. |
| SKU | ZO-G2001684 |
| Standards | CE, CSA, UL, UL Recogni. |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | None |
| UPC | 190735334232 |
| Voltage | 230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-23. |
| Volts | 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | GGE4THU1 | 280.21918048 | 1 | In Stock | | DAYTON | 40.18 | 280.21918048 @ 1 |
 | Zoro | G2001684 | 330.99 | 1 | 7 | | Dayton | 40.18 | 330.99 @ 1 |
| emotorpro.com | 4THU1 | 364.58 | 1 | In Stock | | Dayton | 41.0 | 364.58 @ 1 |
 | simsupply.com | ZO-G2001684 | 391.79 | 1 | 3 | | Dayton | | 391.79 @ 1 |
 | sustainablesupply.com | C1561300 | 441.28 | 1 | In Stock | | Dayton | 40.18 | 441.28 @ 1 |
 | Raptor Supplies | AD9LLQ | 504.930465 | 1 | In Stock | | DAYTON | | 504.930465 @ 1 |
