- mpn207-UL
- brandname: DESTACO
- manufacturername: DESTACO

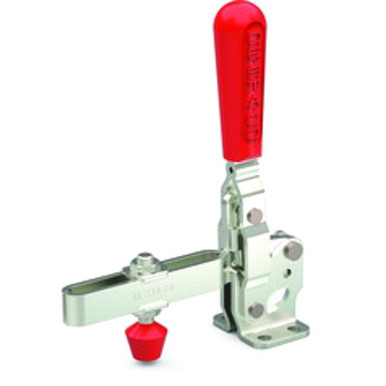

DE STA CO 207-UL 207 Vertical Hold Down Action Clamp with Long U Bar and Flanged Base
- Brand: De-Sta-Co
- PartNumber: 207-UL
- Model: 207-UL
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: DE-STA-CO INDUSTRIES
- Label: DE-STA-CO INDUSTRIES
Attributes
| Key | Value |
|---|
| Accommodates Workpiece . | No |
| Application - Assembly | Excellent/High |
| Application - Checking . | Excellent/High |
| Application - Closures | Excellent/High |
| Application - Food Proc. | Fair/Medium |
| Application - Machining | Poor/Low |
| Application - Welding | Poor/Low |
| Application - Wood-Work. | Excellent/High |
| Arm Length | 3.84, 97.5 |
| Arm Movement | 99 |
| Arm Type | U-Bar |
| Available | Yes |
| Bar Type | U-Bar |
| Base Length | 1.38, 35.1 |
| Base Mounting Style | Flange |
| Base Type | Flanged |
| Base Width | 43.9, 1.73 |
| Body Material | Steel |
| Brand | DESTACO, De-Sta-Co |
| Clamp Arm Length (in) | 3.850 |
| Clamp Arm Style | Long U-Bar |
| Clamp Bar Opening (+10?. | 99 |
| Current Stock | 42 |
| Duty Cycle | 2 |
| Handle | Vertical |
| Handle Movement | 57 |
| Handle Opening (+10?) | 57 |
| Handle Type | Vertical |
| Height Under Arm | 1.250, 31.8 |
| Height Under Bar | 1-1/4" |
| Height Under Clamp Arm . | 1.250 |
| Holding Capacity | 375 lbs., 1668.1, 375 |
| Includes | M8 Spindle, (2) Jam Nut. |
| International Shipping | No |
| Item Weight | 0.80 lbs per EA |
| Maximum Holding Capacit. | 375 |
| Model Number | 207-UL |
| Mounting Hole Diameter | 7.1, 0.280 |
| Mounting Hole Spacing A. | 0.750, 19.1 |
| Mounting Hole Spacing A. | 1.250, 31.8 |
| Mpn | 207-UL |
| Overall Height | 6.93, 176, 6.93" |
| Overall Length | 5.41", 132.6, 5.22 |
| Product Family | Manual Clamping |
| Product Function | Clamping |
| Product Group | Hold Down Clamps |
| Product Series Descript. | Vertical Clamp |
| Product Type | Standard |
| Service Environment | Normal |
| SKU | ZO-G2605653 |
| Spindle Assembly | Yes |
| Spindle Thread Size | M8,5/16-18 |
| Spindle Type | Flat-Tip Bonded Neoprene |
| Standard Material | Steel |
| SubCategory | Tools/Hand Tools |
| Toggle Lock Plus | No |
| Weight (lb) | 0.66 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | kinequip.com | 207-UL | 18.29 | 1 | 118 | | Destaco | | 18.29 @ 1 |
 | freertool.com | DE-STA-CO-207-UL | 19.8 | 1 | In Stock | | DESTACO | 0.66 | 19.8 @ 1 |
| reidsupply.com | TC-207-UL | 21.1 | 1 | 245 | | DESTACO | | 21.1 @ 1 |
| KBC Tools | 1-910-52074 | 22.63 | 1 | 8 | | DESTACO | 0.8 | 22.63 @ 1 |
 | simsupply.com | ZO-G2605653 | 24.34 | 1 | 42 | | De-Sta-Co | | 24.34 @ 1 |
 | Raptor Supplies | AC8PMM | 58.0016385 | 1 | In Stock | | DESTACO | | 58.0016385 @ 1 |
