Dodge F2BSXR111

B006MID3QW

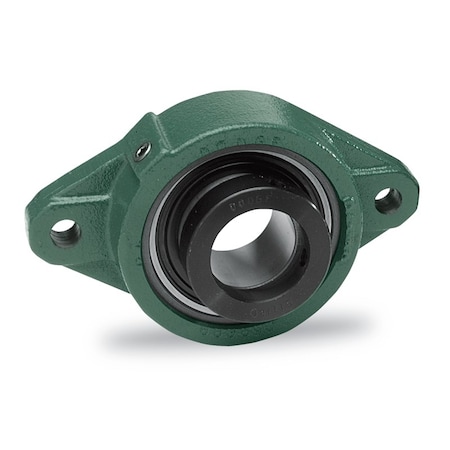

Dodge F2BSXR111 Flange Unit, 2 Bolt Holes, Normal-Duty, Relubricatable, Non-Expansion, Cast Iron, Eccentric Locking Collar, Inch, 1-11/16" Bore Diameter

Dodge F2BSXR111 Flange Unit, 2 Bolt Holes, Normal-Duty, Relubricatable, Non-Expansion, Cast Iron, Eccentric Locking Collar, Inch, 1-11/16" Bore Diameterzoom

Attributes

Key Value
ApplicationGeneral Purpose
Ball bearing series209 series
Bearing typeBall, ball
Bolt Diameter0.5000 in
Bolt Spacing5.844 Inch | 148.438 Mi.
Bore1.688 Inch | 42.875 Mil.
Bore length2.1300 in, 54.102 mm
BrandDODGE
Cartridge Pilot Depth0 Inch | 0 Millimeter
Cartridge Pilot Diameter0 Inch | 0 Millimeter
CategoryFlange Block Bearings
Country of Origin (subj.United States
DutyStandard Duty
EAN0782475116881
ExpansionNo
Expansion / Non-expansi.Non-expansion
Expansion capabilityNon-expansion (fixed)
Global Part Number GPN374919
GreasableYes
Harmonized Tariff Code8483.20.40.40
High tempNo
Housing Configuration1 Piece Solid
Housing constructionSolid
Housing MaterialCast Iron
Housing materialCast Iron
Housing optionCast Iron
Housing Style2 Bolt Flange Block
Housing typeTwo-bolt flange
Inch - MetricInch
Insert materialSteel
Insert optionBearing steel
Insert Part NumberINS-SXR-111
Insert typeBall Bearing
Length Thru Bore2.219 Inch | 56.363 Mil.
LockingEccentric locking
Lubrication typeGrease
Manufacturer NameABB MOTORS AND MECHANIC.
Max Speed300 RPM
Mounting Bolts1/2 Inch
Mounting MethodEccentric Collar
Nominal Bolt Circle Dia.5.8 Inch | 148 Millimet.
Number of Mounting Holes2
Other FeaturesSingle Row | Normal Dut.
Pilot ConfigurationNo Pilot
price$ 129.00 / each
RelubricatableYes
RelubricationYes
Rolling elementStandard duty ball
Seal optionDualGuard seals with fl.
SealsSingle Lip Contact
Sensor readyAdapter required
Shaft attachmentEccentric Collar
Shaft diameter1.6875 in
Standoff housingNo
Static load capacity4906 lbf, 21822.975 N
Suitable for high tempe.No
Suitable for washdownNo
titleF2B-SXR-111
Type2-bolt flange
UNSPSC31171501
Weight / kgm2.32
Weight / LBS5.1

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomLily BearingF2B-SXR-111109.651In StockDODGE5.104109.65 @ 1
thumbzoomMRO Supply129403121.961In StockDodge121.96 @ 1
thumbzoomZoroG2530461128.241In Stock12Dodge128.24 @ 1
