- mpnP2B-SC-215
- brandname: DODGE
- manufacturername: DODGE

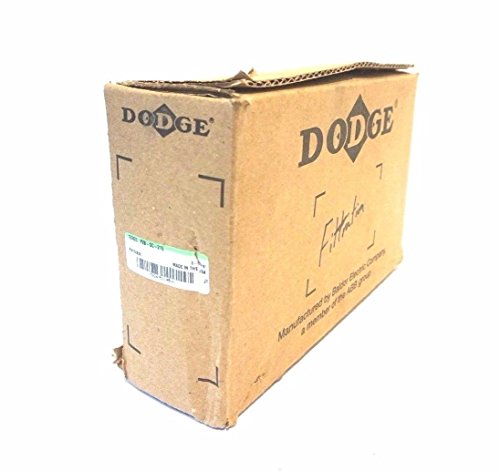

Dodge P2B-SC-215 Pillow Block Bearing 123823 P2BSC215
- Brand: Generic
- PartNumber: 191947448848
- Model: 123823
- PackageQuantity: 1
- Manufacturer: Generic
- Label: Generic
Attributes
| Key | Value |
|---|
| Actual Bolt Center to C. | 0 Inch | 0Millimeter |
| Application | General Purpose |
| Ball bearing series | 215 series |
| base to bore centerline: | 3.5000 in |
| Base to center height | 3.5000 in, 88.9 mm |
| Base to Center Height | 3.5 Inch | 88.9 Millime. |
| base width: | 2.88 in |
| Bearing type | Ball, ball |
| bolt center-to-center l. | 8-1/2 to 9-1/2 in |
| Bolt centerline range | 8 1/2 inch - 9 1/2 inch |
| Bolt Diameter | 0.8750 in |
| Bolt Spacing Maximum | 9.5 Inch | 241.3Millime. |
| Bolt Spacing Minimum | 8.5 Inch | 215.9Millime. |
| Bolt to bolt max | 9.5000 in, 241.3 mm |
| Bolt to bolt min | 8.5000 in, 215.9 mm |
| Bore | 2 15/16 in |
| bore diameter: | 2.9375 in |
| Bore length | 2.3300 in, 59.182 mm |
| bore type: | Round |
| Brand | DODGE |
| Category | Pillow Block Bearings |
| Country of Origin (subj. | United States |
| Duty | Standard Duty |
| duty type: | Normal Duty |
| Expansion | No |
| Expansion / Non-expansi. | Non-expansion |
| Expansion capability | Non-expansion (fixed) |
| expansion type: | Non-Expansion Bearing (. |
| Finish | Powder coated |
| finish/coating: | Black Oxide |
| Global Part Number GPN | 522015 |
| Greasable | Yes |
| Harmonized Tariff Code | 8483.20.40.40 |
| High temp | No |
| Housing Configuration | 1 Piece Solid |
| Housing construction | Solid |
| Housing Material | Cast Iron |
| Housing material | Cast Iron |
| housing material: | Cast Iron |
| Housing option | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Housing type | Two-bolt pillow block |
| I.D. | 2 15/16 inch |
| Inch - Metric | Inch |
| Insert material | Steel |
| Insert option | Bearing steel |
| Insert Part Number | INS-SC-215 |
| Insert type | Ball Bearing |
| Length Thru Bore | 2.281 Inch | 57.937 Mil. |
| Locking | Set Screw |
| locking device: | Set Screw |
| Lubrication type | Grease |
| lubrication type: | Lubrication Fitting |
| manufacturer catalog nu. | 123823 |
| Manufacturer Name | ABB MOTORS AND MECHANIC. |
| Material | Steel |
| Max Speed | 1750 RPM |
| Measure system | Imperial |
| Mounting Bolts | 7/8 Inch |
| Mounting Method | Set Screw |
| mounting: | Two-Bolt Base |
| Nominal Bolt Center to . | 9 Inch | 229 Millimeter |
| Number of Mounting Holes | 2 |
| Other Features | Single Row | Normal Dut. |
| overall height: | 6.7500 in |
| overall length: | 11.7500 in |
| overall width: | 2.33 in |
| price | $ 328.12 / each |
| radial dynamic load cap. | 14872 lb |
| radial static load capa. | 11108 lb |
| Relubricatable | Yes |
| Relubrication | Yes |
| Rolling element | Standard duty ball |
| Seal | Single lip |
| Seal option | DualGuard seals with fl. |
| seal type: | Contact/Lip |
| Seals | Single Lip Contact |
| Sensor ready | Adapter required |
| series: | 215 |
| Shaft attachment | Setscrew |
| Shaft centerline height | 3 1/2 in |
| Shaft diameter | 2.9375 in |
| standards met: | UL, AFBMA, AGMA, ASMMA,. |
| Standoff housing | No |
| Static load capacity | 11108 lbf, 49410.846 N |
| Suitable for high tempe. | No |
| Suitable for washdown | No |
| Take-up frame size | LD-50,TS-350 |
| title | P2B-SC-215 |
| Type | Pillow block 2-Bolt |
| UNSPSC | 31171511 |
| Weight / kgm | 8.172 |
| Weight / LBS | 20.5 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Lily Bearing | P2B-SC-215 | 278.9 | 1 | 3 | | DODGE | 17.9784 | 278.9 @ 3 |
 | MRO Supply | 123410 | 319.41 | 1 | 3 | | Dodge | | 319.41 @ 3 |
 | motionindustries.com | 00557513 | 461.49 | 1 | 3 | | Dodge | | 461.49 @ 3 |
 | Zoro | G600415003 | 479.84 | 1 | 3 | | Dodge | | 479.84 @ 3 |
