Eaton XTCE007B01B

B07BB5L2JS

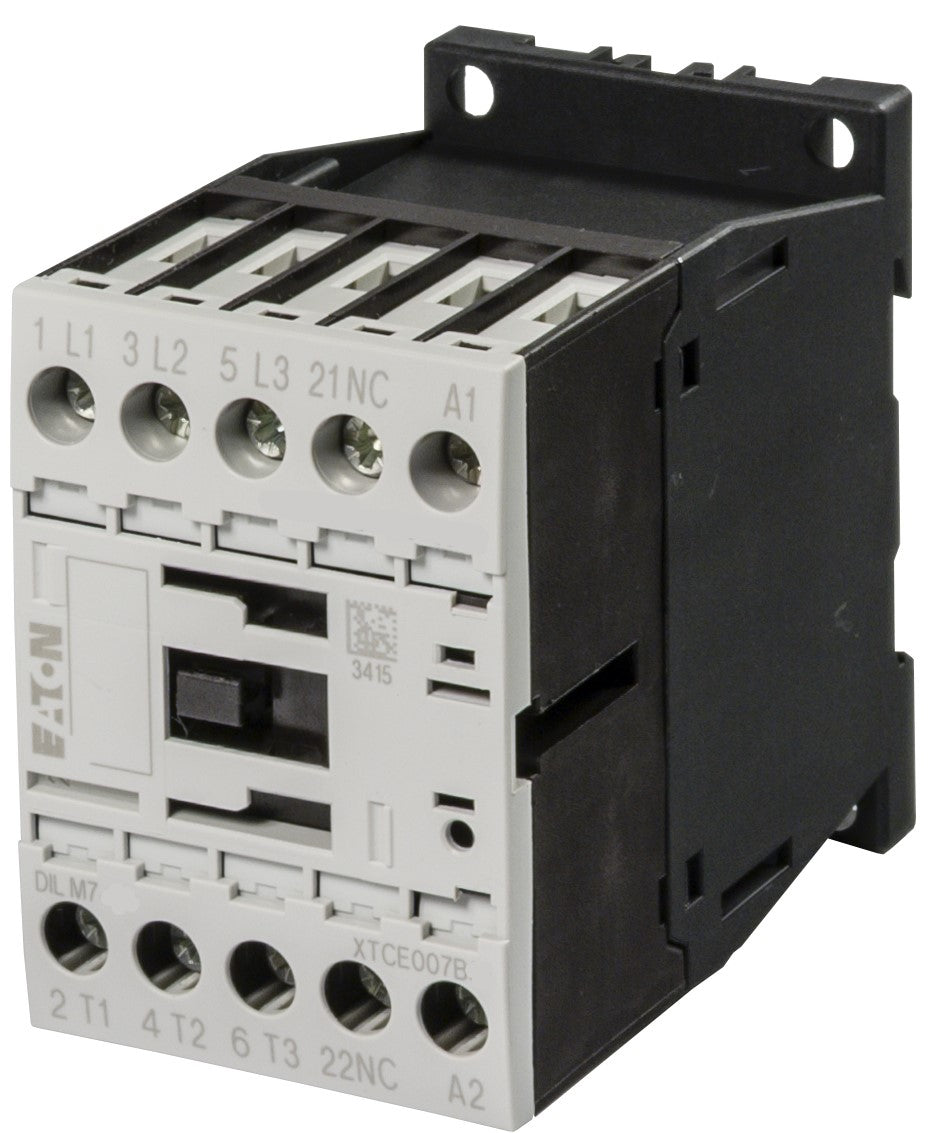

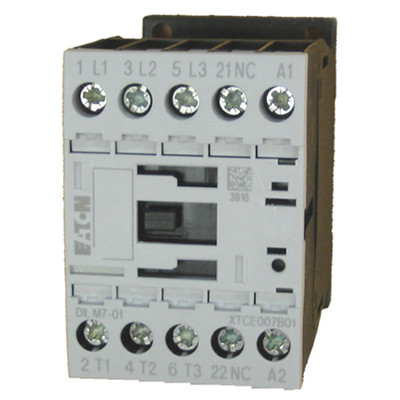

Eaton XTCE007B01B IEC Magnetic Contactor,240VAC,7A,1NC,3P

Eaton XTCE007B01B IEC Magnetic Contactor,240VAC,7A,1NC,3Pzoom

Attributes

Key Value
ActionNon-Reversing
Amps7
Aux. Contact Configurat.1NC
Auxiliary Contact1 NC
Auxiliary Contact Form1NC
Auxiliary Contacts1NC
Coil Power Rating1/4 hp at 115 VAC 1 ph,.
Coil TypeMagnetic
Coil Voltage220 VAC at 50 Hz, 240 V.
Coil Volts240 V AC
Contact Configuration1NC
Contact Current Rating7 A
Control Voltage240 V
Country of Origin (subj.Romania
Depth2.95 in
Description:Cont 3P FVNR 7A FR B 1N.
Enclosure NEMA RatingNo Enclosure
Family SeriesCutler Hammer, Div of E.
Frame / Series / Class .Frame B
Frame SizeB
Frequency Rating50/60 Hz
Full Load Amps-Inductive7 A
Full Load Amps-Resistive22 A
General Purpose (AC1)20 A
Gross Weight0.5 lbs
Height1.77 in
HP @ 1 Phase - 120V1/4 hp
HP @ 1 Phase - 230V1
HP @ 1 Phase - 240V1 hp
HP @ 3 Phase - 208V1 1/2 hp
HP @ 3 Phase - 240V2 hp
HP @ 3 Phase - 480V3 hp
HP @ 3 Phase - 575V5 hp
Hz50/60
ItemIEC Magnetic Contactor
Item NumberXTCE007B01B
ManufacturerCutler Hammer, Div of E.
Manufacturer Part NumberXTCE007B01B
Max HP 115V 1PH0.25 hp
Max HP 200/208V 3PH1.5 hp
Max HP 230/240V 1PH1 hp
Max HP 230/240V 3PH2 hp
Max HP 460/480V 3PH3 hp
Max HP 575/600V 3PH5 hp
Maximum Load Current7 A
MFG Part #:XTCE007B01B
MountingPanel, DIN Rail
Mounting TypeDIN Rail/Panel, DIN Rai.
Net Weight0.5 lbs
Nominal Coil Voltage240 VAC
Number of Poles3
Overload RelaysC396, XTOB, XTOT
Part NumberXTCE007B01B
Poles3NO, 3
Product SeriesXT
ReversingNo
SeriesXT Series, XTCE
Size45 mm
StandardsUL/CE/CSA/CCC/ATEX/IEC .
Supplier:CUTLER-HAMMER INC
Terminal TypeScrew
TerminationScrew
TypeB-Frame Full Voltage No.
UL Motor Switching (AC3)7 A
UPC Code4015082765842
UPC:4015082765842
Volts AC600
Width1.77 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoXTCE007B01B-CHGP44.981In StockCutler Hammer, Div of Eaton Co0.544.98 @ 1
thumbzoomkentstore.comXTCE007B10B45.2213Eaton/Cutler Hammer45.22 @ 1
thumbzoommotorsandcontrol.comXTCE007B01B47.781In StockEaton Cutler Hammer47.78 @ 1
thumbzoomimc-direct.comXTCE007B01B51.6214EATON51.62 @ 1
thumbzoomcontrolparts.comXTCE007B01B62.81In StockEaton62.8 @ 1
thumbzoomZoroG285372466.291In Stock26Eaton0.5566.29 @ 1
thumbzoomWalker IndustrialXTCE007B01B70.691In StockEaton Cutler-Hammer70.69 @ 1
thumbzoomsustainablesupply.comC2882964100.731In StockEaton0.55100.73 @ 1
thumbzoomPlatt.com0176883101.441In StockEaton101.44 @ 1
thumbzoomcappusa.com5007665171.531In StockEaton171.53 @ 1
us.rs-online.com71218225173.261In StockEaton - Cutler Hammer173.26 @ 1
kscdirect.comCH XTCE007B01B183.411In StockCUTLER-HAMMER INC183.41 @ 1
